CNC Machining Tolerances Explained: What Tolerance Do You Really Need?
Why Tolerances Matter in CNC Machining
In CNC machining, tolerance is one of the most important factors that determines whether a part will function as intended. Many buyers focus on material, shape, and price first, but tolerance often has a bigger impact on real product performance. If a dimension is too loose, the part may not fit correctly during assembly. If it is too tight, manufacturing becomes more difficult, slower, and more expensive. That is why tolerance is not just a technical detail on a drawing. It is a key factor that affects quality, cost, and delivery.

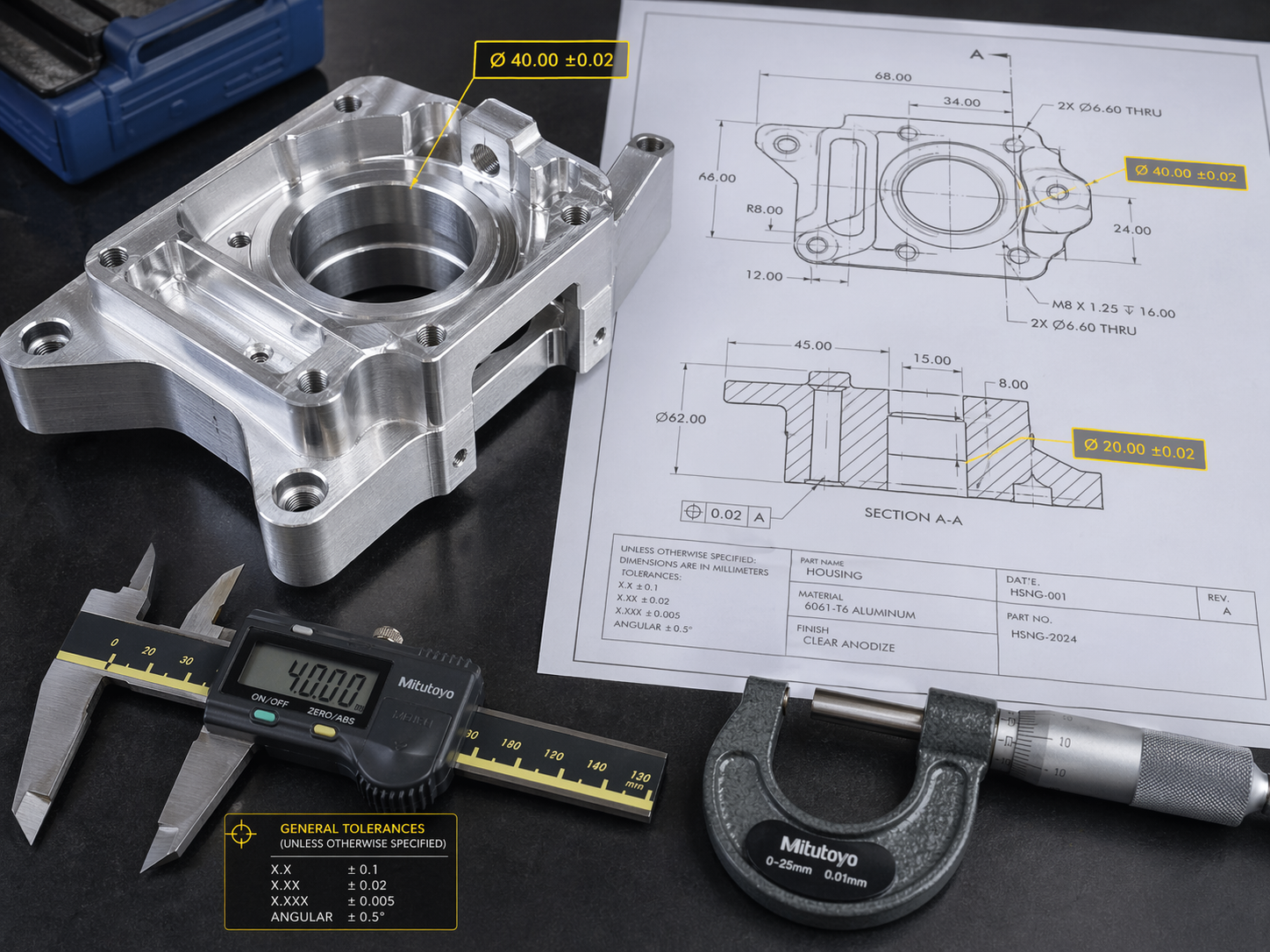

Tolerance refers to the acceptable variation between the nominal size on the drawing and the actual size of the finished part. Since no manufacturing process can produce the exact same dimension every single time, engineers define an allowed range. For example, if a diameter is 20.00 mm with a tolerance of ±0.05 mm, then any finished size between 19.95 mm and 20.05 mm is acceptable. This range helps manufacturers control production while ensuring the part still meets functional requirements.
What a CNC Machining Tolerance Really Means
A CNC machining tolerance tells the supplier how precise a feature must be. It can apply to dimensions such as length, width, diameter, thickness, hole position, and many other features. In simple terms, tolerance defines how much variation is allowed without affecting the usability of the part. Some features need only standard control, while others must be held much more precisely because they affect fit, movement, sealing, or alignment.
In real manufacturing, not every dimension needs the same level of accuracy. A non-critical outer edge on a cover plate usually does not need the same precision as a bearing seat or a shaft diameter. Good drawings do not make everything tight. Instead, they apply tighter requirements only where they are truly necessary. This makes machining more practical and more cost-effective.
Why Tighter Tolerance Is Not Always Better
Some buyers assume that tighter tolerance always means higher quality. In fact, this is a common misunderstanding. Tighter tolerance only creates value when the application really needs it. If the part does not require extremely high accuracy, asking for very tight tolerance can increase price without improving performance. In some cases, it can even make production less efficient and extend lead time.
Tight tolerance often requires better machines, more careful setup, slower cutting speed, and more inspection steps. It may also require secondary finishing or special tooling. All of these factors increase production difficulty. For example, a simple aluminum housing that only needs normal assembly clearance does not need an extremely strict tolerance on every dimension. If every feature is over-controlled, the result is higher cost without a meaningful benefit to the end user.
Common Tolerance Ranges in CNC Machining

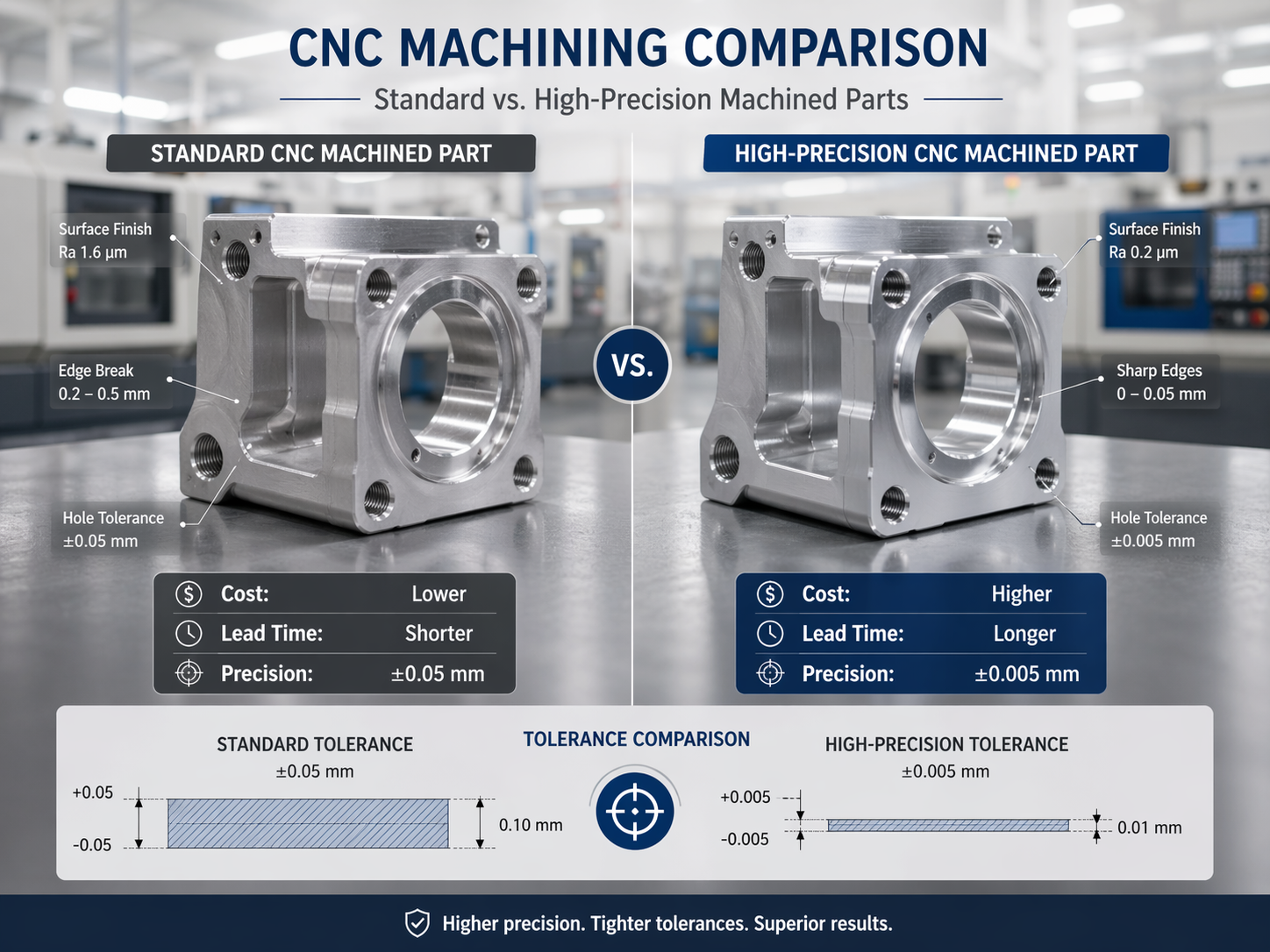

The tolerance that can be achieved depends on material, part design, machine capability, and inspection method. Still, there are some common ranges that can be used as practical references. For general machining, around ±0.1 mm is often acceptable for non-critical features. This is suitable for basic brackets, covers, and simple housings. For more standard precision machining, ±0.05 mm is commonly used and works well for many industrial parts.
For tighter precision applications, ±0.01 mm or even tighter may be required. These are usually found in medical components, aerospace parts, precision fixtures, and some optical or automation equipment. However, the number on the drawing is only part of the story. A compact steel block may be easier to control than a thin wall aluminum part. Deep pockets, small holes, and long slender features are also more difficult to machine accurately.
That is why experienced CNC suppliers usually review drawings carefully before confirming tolerance capability. They do not only look at the required number. They also consider shape, material, and machining risk. This is especially important for custom parts where design and manufacturability are closely related.
What Affects Achievable Tolerance
Several factors influence whether a CNC machined part can consistently meet the required tolerance. The first is material. Aluminum is generally easier to machine and often more stable in dimensional control, while stainless steel and titanium may generate more heat and tool wear. The second is geometry. Thin walls, deep cavities, and unsupported structures are more likely to deform or vibrate during machining.

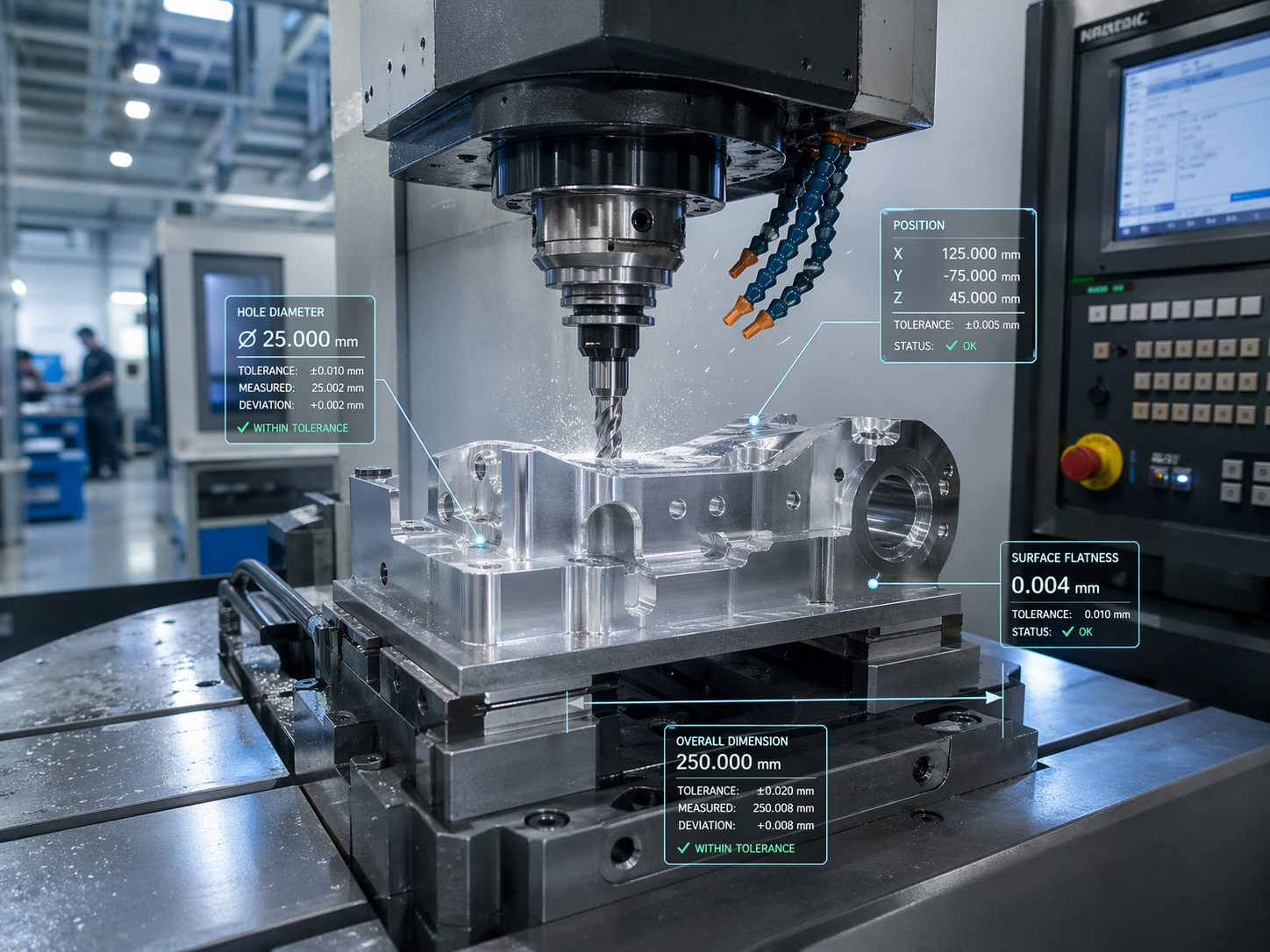

The third factor is machine quality and tooling. A stable CNC machine with good rigidity and control system is much better for precision work. Tool wear also matters. A worn tool can cause dimensional drift and inconsistent results. The fourth factor is fixturing. If the part is not clamped correctly, even a well-programmed machine cannot maintain good accuracy.

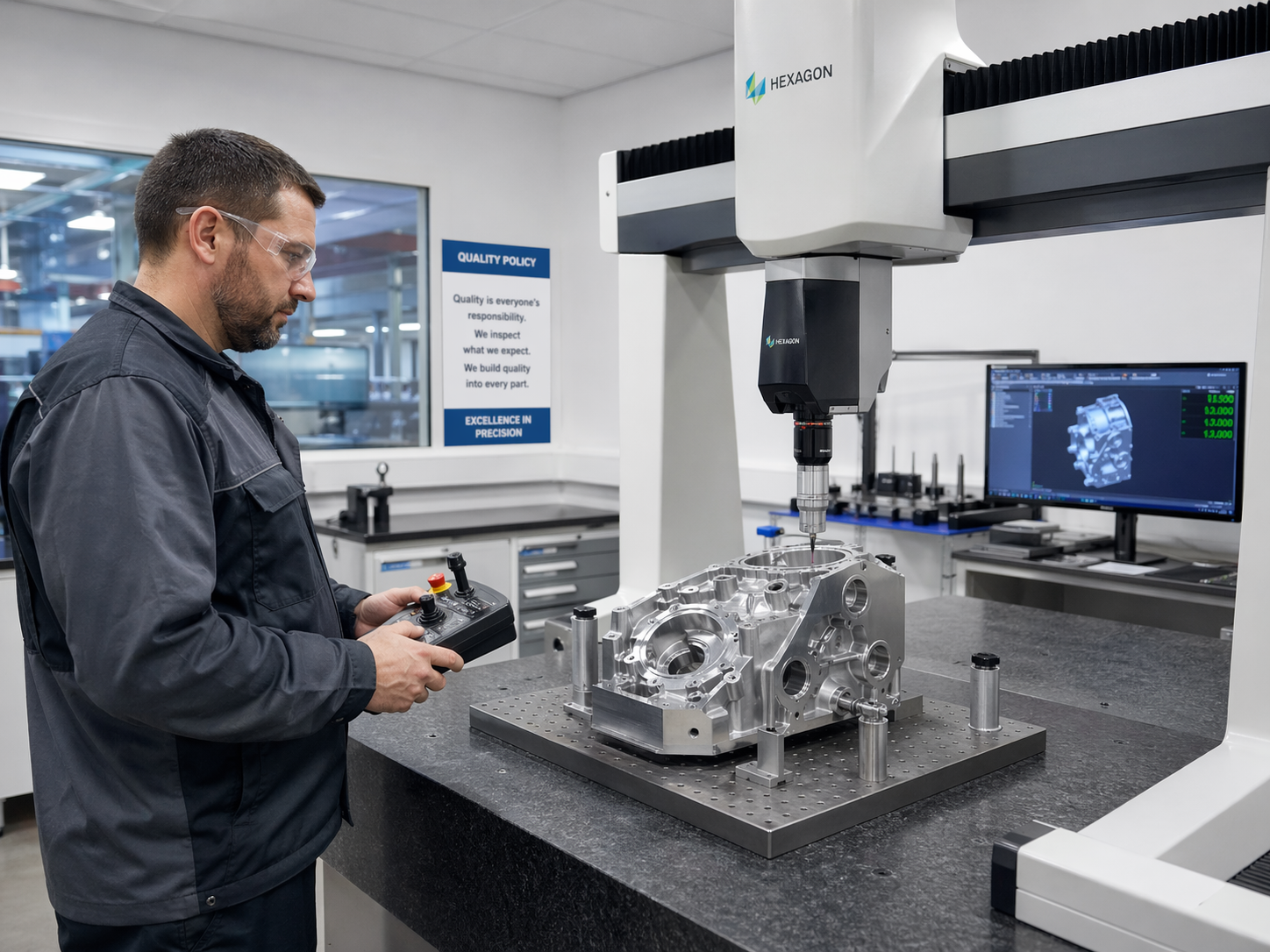

The fifth factor is measurement. Tight tolerance requires suitable inspection methods. A caliper may be enough for simple dimensions, but critical features may need micrometers, bore gauges, height gauges, or CMM inspection. Precision manufacturing is not only about making a part. It is also about checking it correctly.
How Tolerance Affects Cost and Lead Time
Tolerance has a direct effect on production cost. When tolerance becomes tighter, machining usually becomes slower and more demanding. More setup time is needed. More inspections are required. The risk of scrap becomes higher. In some cases, extra machining passes or finishing operations are necessary to achieve the final size. Even a small change in tolerance can cause a noticeable increase in price.
Lead time is also affected. Tight-tolerance parts often require more process planning and stricter quality control. If multiple critical dimensions must be controlled at the same time, production consistency becomes harder, especially in batch manufacturing. This means that buyers should always think carefully before asking for extremely tight numbers on every feature.
A better approach is to ask a practical question. Does this feature truly need this tolerance to work correctly? If the answer is no, a more reasonable tolerance can save both time and cost while still meeting product requirements.
How to Choose the Right Tolerance
The best way to choose tolerance is to begin with function. Think about how the part will be used, assembled, and loaded in real working conditions. If a dimension affects fit, sealing, alignment, or motion, it may need tighter control. If it is only a non-functional outside size, standard tolerance may be enough.
It is also important to think about mating parts together. A hole and shaft, a slot and tab, or a housing and cover should be considered as a pair. Tolerance should support the final fit condition, whether it is clearance fit, transition fit, or interference fit. This makes the design more useful and the drawing more meaningful to the supplier.
Good communication with the machining supplier is another important point. An experienced supplier can often review the drawing and suggest which dimensions must remain tight and which can be relaxed. This can improve manufacturability and help control quotation more effectively.
General Tolerance and Critical Tolerance
One of the best ways to balance quality and cost is to separate general tolerance from critical tolerance. General tolerance can be applied to most non-functional features, while critical tolerance should be reserved for dimensions that directly affect performance. This method gives the supplier more flexibility where precision is not essential, while protecting the features that really matter.
For example, a machined housing may use general tolerance for outside dimensions, but tighter control for mounting holes or alignment features. A shaft may have standard tolerance on overall length, but very strict tolerance on the bearing fit diameter. This kind of tolerance planning is a sign of good design for manufacturing.
Conclusion
CNC machining tolerance is not simply a number on a drawing. It affects part quality, production difficulty, inspection requirements, cost, and lead time. The best tolerance is not the tightest one. It is the one that gives the part the accuracy it needs without creating unnecessary manufacturing difficulty. When tolerance is defined properly, the result is better product performance and better overall value.
Whether you are developing prototypes, sourcing custom machined parts, or preparing for production, understanding tolerance will help you make better engineering and purchasing decisions. Working with an experienced CNC machining supplier can also make it easier to find the right balance between precision, cost, and manufacturability.
Not sure what tolerance is right for your CNC machined parts? Contact us today for professional engineering support and a fast quotation based on your drawings.
