Component Introduction

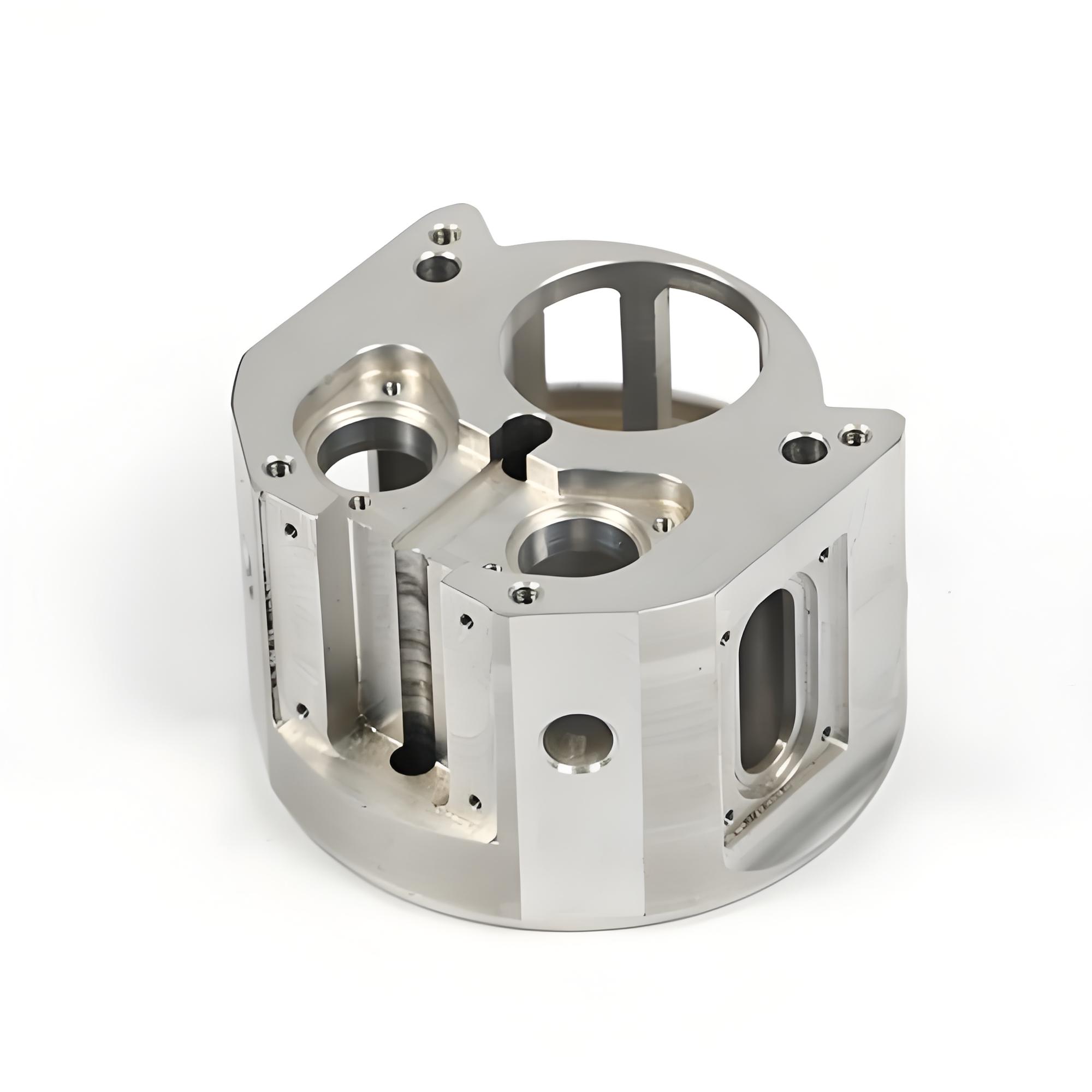

This precision mechanical component is manufactured through advanced CNC machining processes to achieve exceptional dimensional accuracy and structural integrity. The part features a complex cylindrical design with multiple precision holes, slots, and mounting interfaces, making it suitable for demanding engineering applications. Each component is produced according to strict quality standards to ensure reliable performance and long-term durability.
CNC Machine Has the Following Characteristics
● High processing precision and stable processing quality;
● It can carry out multi-coordinate linkage, high degree of automation, and can process parts with complex shapes;
● When replacing the processing parts, generally only need to change the NC program, which can save production preparation time and improve efficiency;
Precision Machined Parts With High Quality Guaranteed
K-TEK has advanced processing equipment, excellent engineering team, and efficient operation mode. It provides customers with high-quality and efficient CNC turning services at competitive prices, and transforms meticulous engineering design drawings into various precision parts.
Custom machining of lathe parts
Precision Requirements for Custom Turning Parts
|
Machining accuracy |
|
|
can generally meet the requirements |
|
| machining accuracy | ±0.005 MM |
| (√) | Ra0.2 |
| ↗ | 0.005MM |
| ◎ | 0.005MM |
| ○ | 0.005MM |
| ⊥ | 0.005MM |
| 一 | 0.005MM |
|
Mini Order Quantity（MOQ）≥1 |
|
Machining Commonly Used Materials & Surface Treatment
Different precision parts can use different materials according to the design requirements of the product. We can process various materials and surface treatments to meet customer requirements. Common materials and surface treatments are as follows:
|
Common materials & Surface treatment |
||
|
Common Materials |
Steel |
20#, Q235, 45#, A2, D2, 16MnCr5, 30CrMo, 38CrMo, 40CrNiMo3, S50C, 65Mn, SCM415, 40Cr, Cr8 |
| Cr12, SKD61, DC53, 12L14, Y12pb, Y15, Y35, Y40Mn, S5, T10, S355, 16MnCr5 | ||
| 6150, SCM435, St37, 410, 416, 420, 430, 4140, 4130, 240N, Stell, SKS3, 38CrMOAl, 20CrNiMo | ||
| P20, SUJ2, SK3, 15CrMo, 20CrMo, 35CrMo, GS2316, CD650, ASP-23O1, A6, XW-5, XW-10, XW-41 | ||
| C1065, NAK55, NAK80, HPM1, HPM77, HPM75, 718H, 738H, DF-3, etc. | ||
|
Aluminum |
LY12, 2A12, A2017, AL2024, AL3003, AL5052, AL5083, AL6061, AL6063, AL6082, AL7075, YH52 | |
| YH75, MIC-6, etc. | ||
|
Stainless Steel |
SUS201, SUS321, SUS301, SUS303, SUS304, SUS304L, S136, S136H, , SUS316, SUS316L, SUS316Ti | |
| SUS321, SUS420, 17-4ph, 430F, X90CrMoV18, 9Cr18MoV, SUS440, etc. | ||
|
Copper |
T2, TU1/2, TP1/2, , Brass, Copper, Bronze, CuZn38Sn1, CuZn39Pb3, CuSn12, CuSn8P, C-360 | |
| CuSn7ZnPb, CuZn38Pb2, C36000, C1100, C1011, C1020, C1201, C1220, C2800, C3602, HPb59-1 | ||
| HPb61-1, QSn7-02, C-954/514QAI 10-4-4, AMPCOM4, H59, H62, CuZN30, CuSn37, etc. | ||
|
Plastic |
PEEK, PEEK1000, POM, TEFLON, PTFE, PET, UHMW-PE, HMW-PE, PEI, PI, PP, PVC, PC, PMM, APS, PU | |
| FR4, DELRIN, DELRIN AFUPE, PE, UPE, EKH-SS09, MC501CDR6, PPO, NBR, PA6, PA66, FR4, PA-MC | ||
| PA66+30%GF, PBT, PET, PET+30%GF, PC, PC+30%GF, Nylon, ABS, ESD225/420/520, etc. | ||
|
Surface treatment |
Clear Anodize, Black Anodize, Hardness Anodize, Blue/Red Anodize, Chromate Plating, QPQ | |
| Electroless Nickel/Nine/Chromium Plate, Black Oxide, SilverGolden plating, Sanded, DLC | ||
| Orbital Sanded, Passivated, TIN PlatingTungsten Carbide Coating, Polyurethae coating, etc. | ||
