How Does 5 Axis CNC Machining Work?

The process begins with a CAD model, which is converted into machine instructions using CAM software. The machine then executes highly precise movements across five axes simultaneously.

Two Main Types:

1. Indexed 5-axis (3+2)

Tool rotates to a fixed angle

Then performs 3-axis machining

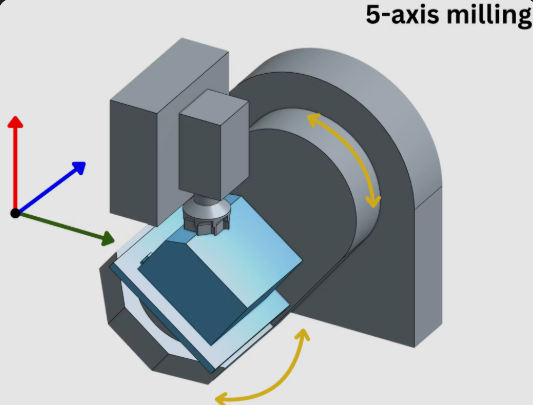

2. Continuous 5-axis

All five axes move simultaneously

Ideal for curved surfaces and complex geometries

This flexibility allows machining of complex parts without repositioning.

Key Advantages of 5 Axis CNC Machining

1. Reduced Setup Time

5-axis machining allows multiple surfaces to be machined in one setup, eliminating repeated repositioning.

Result:

Faster production

Lower labor cost

2. Higher Precision and Accuracy

Fewer setups mean fewer alignment errors and tighter tolerances. Typical tolerance:

Up to ±0.01 mm

3. Ability to Machine Complex Geometries

5-axis machining excels at:

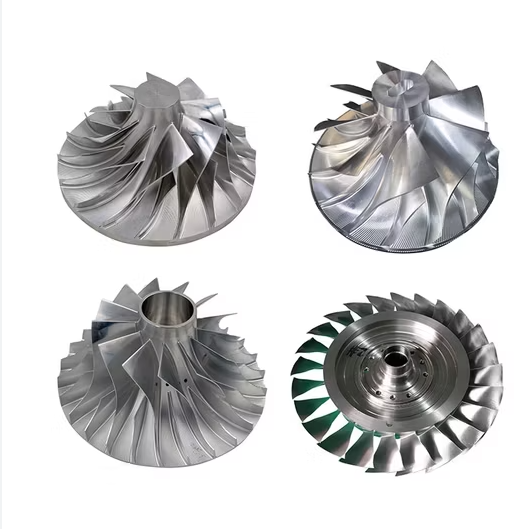

Free-form surfaces

Deep cavities

Undercuts

Impossible or very costly with 3-axis machines

4. Superior Surface Finish

The tool maintains optimal angles during cutting, reducing tool marks and improving finish quality.

5. Improved Efficiency and Shorter Lead Time

With fewer setups and continuous machining:

Production cycles are significantly reduced

Time-to-market is faster

6. Longer Tool Life

Optimized cutting angles reduce heat and wear on tools.
