Precision Aluminum Housings for Complex Equipment Assemblies
Modern industrial equipment often contains sensitive electronics, sensors, optical components, connectors, and control systems inside a relatively compact structure. The enclosure is therefore more than a protective shell. It can also determine how internal components are positioned, cooled, protected, and assembled.
A precision-machined enclosure housing provides a controlled mechanical structure for these functions. When the design includes multiple mounting surfaces, internal cavities, angled features, and precisely positioned holes, CNC machining allows these details to be produced directly from an aluminum alloy workpiece.
K-TEK manufactures 5-Axis CNC Machined Aluminum Alloy Enclosure Housing for aerospace, medical, optical, and high-precision equipment applications. The product shown on the K-TEK website features complex internal structures, accurately positioned mounting holes, and a finished interior surface.
Why Enclosure Housing Accuracy Matters
An enclosure housing may support several components at the same time. Circuit boards, sensors, optical elements, connectors, covers, and mounting hardware can all depend on the housing's reference surfaces.
If the relationship between these features is not controlled properly, assembly problems can appear later in the production process.
For example, a mounting hole may be correctly sized but incorrectly positioned relative to another reference feature. A pocket may have the correct depth but interfere with an internal component. A thin wall may also deform during machining if the cutting strategy and workholding method are not properly planned.
For precision equipment, the important question is therefore not simply whether each individual dimension is correct. The relationship between functional features also needs to be considered.
Complex Internal Structures Require Careful CNC Machining

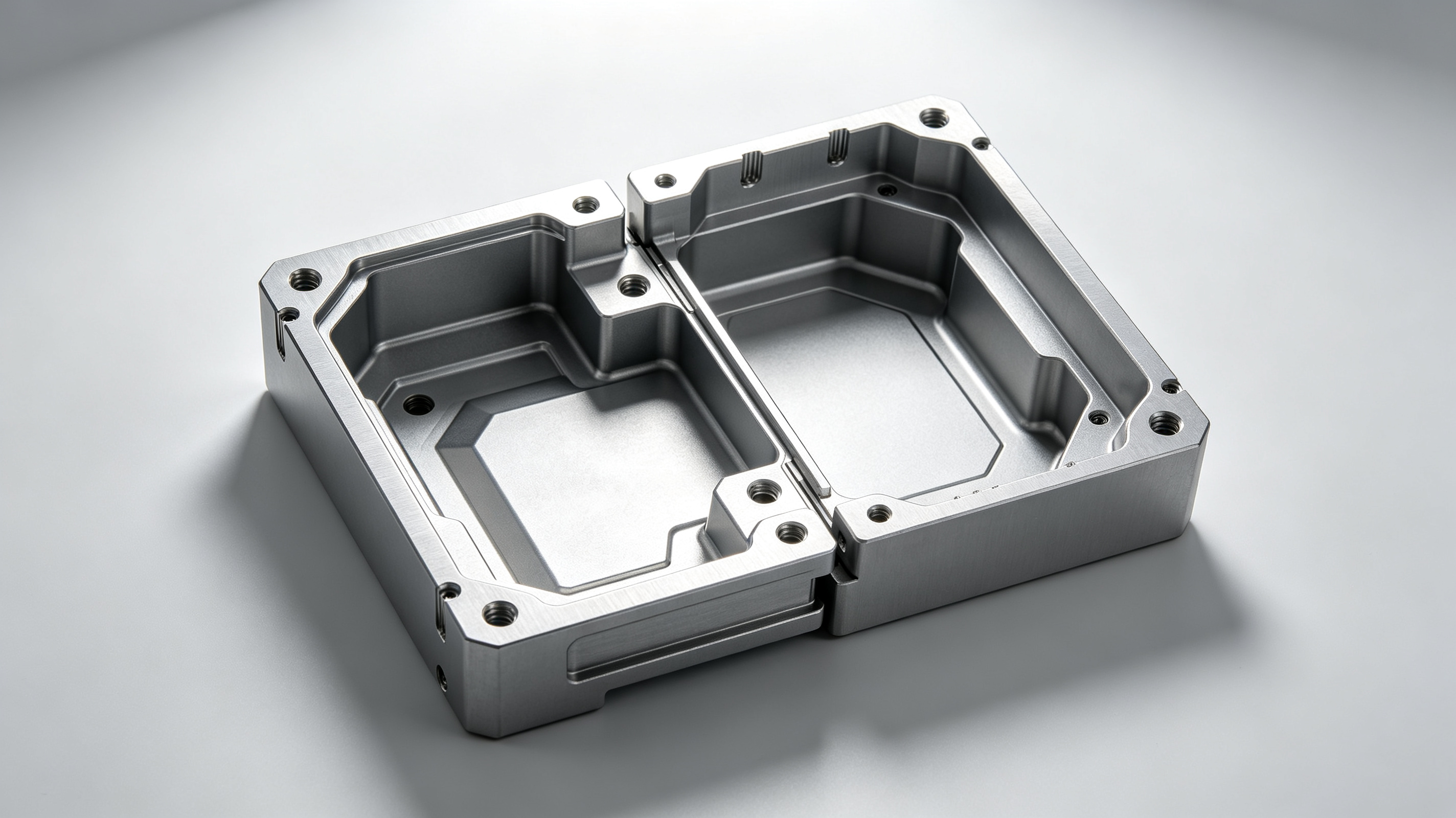

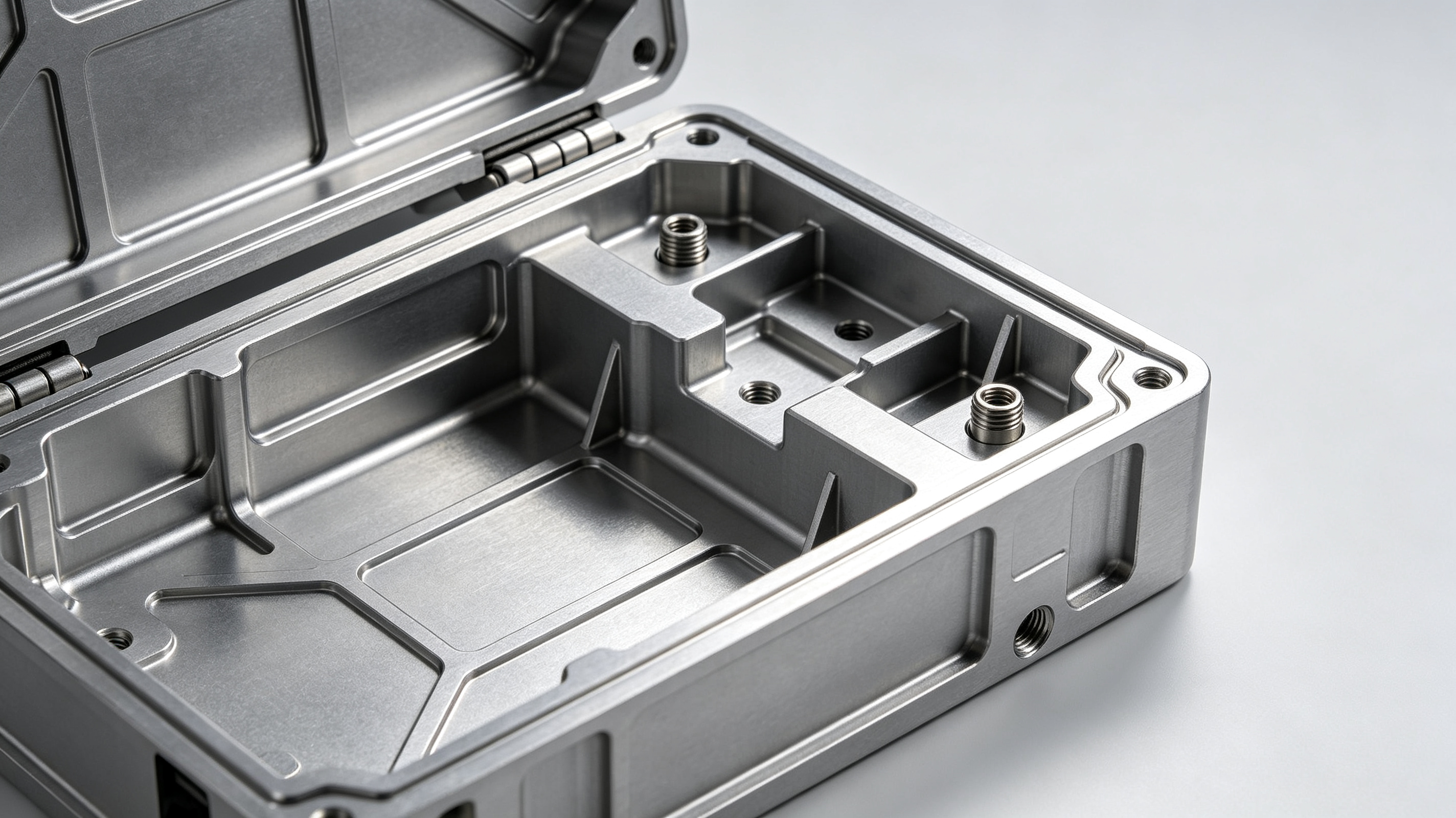

Many modern enclosure housings use pockets, ribs, cavities, bosses, threaded holes, and other internal features to reduce weight while maintaining structural support.
Aluminum is particularly suitable for these applications because it is lightweight and relatively easy to machine. K-TEK's aluminum machining capabilities cover materials including 6061, 6063, 6082, 7075 and other aluminum grades, with different surface treatments available according to application requirements.
For customers developing lightweight equipment structures, K-TEK provides dedicated Aluminum CNC Machining for customized components.
The machining process needs to balance material removal, wall thickness, tool access, workholding, and dimensional stability. Rough machining can remove most of the material efficiently, while finishing operations are used to achieve the final dimensions and surface requirements.
When 5-Axis CNC Machining Makes a Difference
An enclosure housing can have features located on several different faces. Conventional three-axis machining may require multiple setups to reach these surfaces.
Every additional setup creates another opportunity for positioning variation.

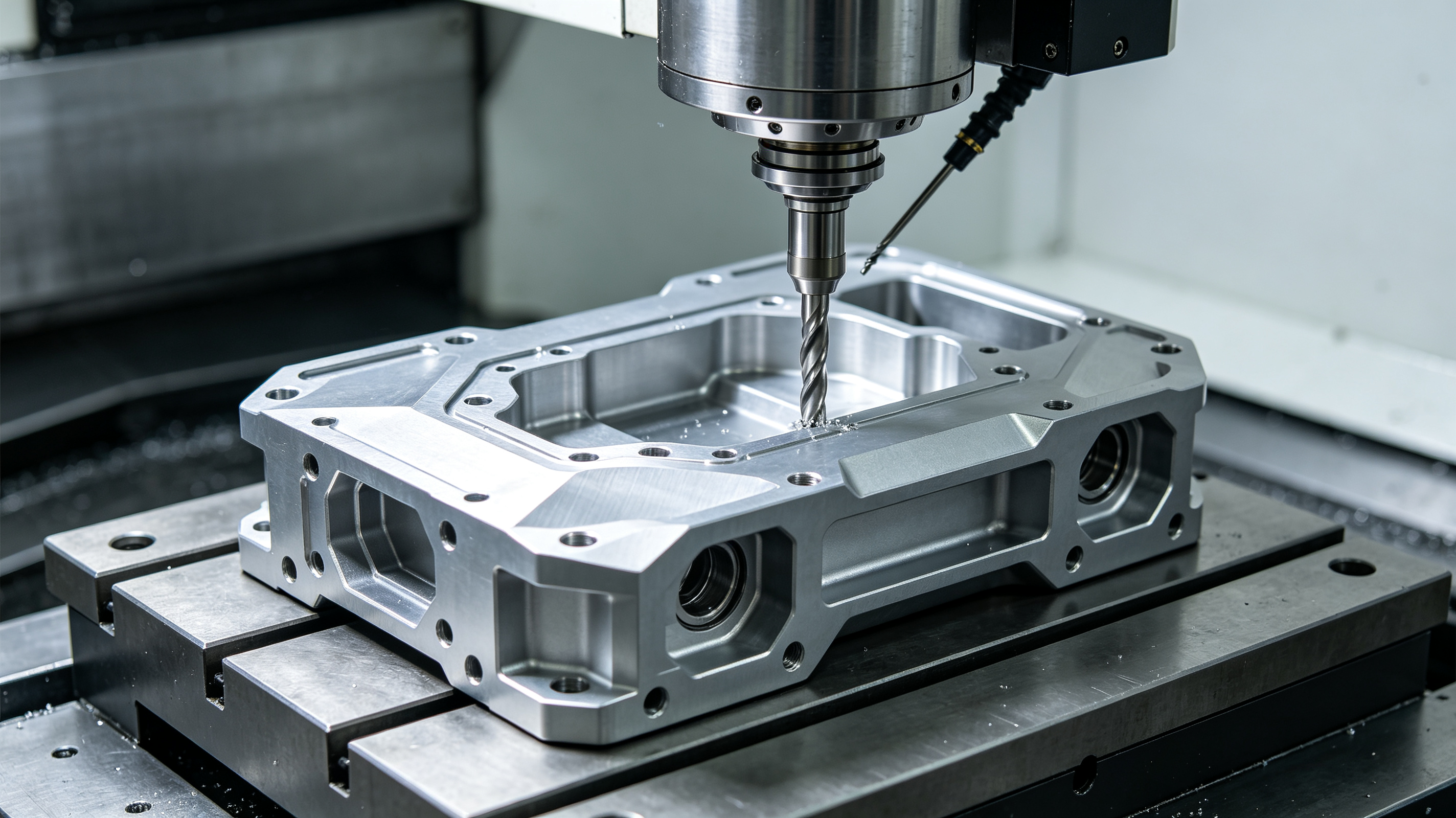

For complex housings, 5 Axis CNC Machining allows the cutting tool to approach the workpiece from different directions while the machine controls multiple axes simultaneously. This can reduce repositioning operations and make it easier to maintain relationships between features on different surfaces.
Five-axis machining is particularly useful when a housing contains:
- Angled holes
- Complex internal cavities
- Multi-sided mounting surfaces
- Curved or inclined features
- Deep pockets
- Closely related features on different faces
The K-TEK five-axis machining service states that the process is suitable for complex spatial surfaces, special-shaped structures, cavities, oblique holes, and other multi-surface features.
However, five-axis machining is not automatically required for every enclosure. The appropriate process should be selected according to the geometry, tolerances, material, production quantity, and inspection requirements.
Managing Wall Thickness and Machining Stress
Lightweight enclosure designs often contain thin walls. While reducing wall thickness can save weight and material, thin sections can also become more sensitive to cutting forces and residual stress.
A practical machining strategy may divide material removal into several stages rather than attempting to produce the final geometry in one operation.
Roughing removes bulk material while leaving controlled machining allowance. Semi-finishing then brings the geometry closer to the final dimensions. Finishing operations can subsequently focus on critical surfaces, holes, pockets, and mounting interfaces.
Workholding is equally important. Excessive clamping force can deform thin sections, while insufficient support may allow vibration during cutting.
The latest K-TEK article on How CNC Fixturing Affects Machining Accuracy and Part Quality discusses how fixture design, support locations, machining direction, and inspection references can affect the final result.
Conclusion
A CNC-machined enclosure housing is an important structural component in many precision equipment systems. Its role extends beyond protecting internal components. The housing can also establish mounting references, maintain component alignment, provide structural support, and integrate internal functional features.
For complex aluminum housings, careful process planning is essential. Material selection, five-axis machining, workholding, wall-thickness control, surface treatment, and dimensional inspection should all be considered as part of the same manufacturing process.
By combining precision CNC machining with engineering review and controlled inspection, manufacturers can develop enclosure housings that are suitable for both prototype development and repeat production.
K-TEK provides customized CNC machining based on customer drawings and requirements, including aluminum milling, five-axis machining, CNC turning, surface treatment, and dimensional inspection.
