How CNC Fixturing Affects Machining Accuracy and Part Quality
Why Fixturing Is Important in CNC Machining
When people discuss CNC machining accuracy, they usually focus on the machine, cutting tools, programming, or inspection equipment. However, another factor is just as important: how the workpiece is positioned and held during machining.
A CNC machine can follow a highly accurate tool path, but the result may still be affected if the workpiece moves, vibrates, or becomes distorted during cutting. This is why CNC fixturing is an important part of precision manufacturing.
A fixture provides a controlled way to position and secure the workpiece. It needs to hold the part firmly enough to resist cutting forces while avoiding excessive clamping force that could deform the component.
This becomes particularly important when machining thin-wall parts, deep pockets, small features, long shafts, or components with tight dimensional requirements.
What Does a CNC Fixture Actually Do?
A CNC fixture has several basic functions. First, it positions the workpiece at a known location. Second, it prevents unwanted movement during cutting. Third, it provides repeatable positioning when multiple parts need to be machined.
A simple fixture may use locating pins, support surfaces, clamps, or a vise. More complicated fixtures can include multiple locating points, custom jaws, vacuum systems, hydraulic clamping, or dedicated support structures.
The fixture must also provide enough clearance for the cutting tool. If the fixture blocks the tool path, some features may become difficult or impossible to machine.
Good fixture design therefore requires an understanding of both the part geometry and the machining process.
The fixture is not simply something that holds the part. It is part of the overall manufacturing process.

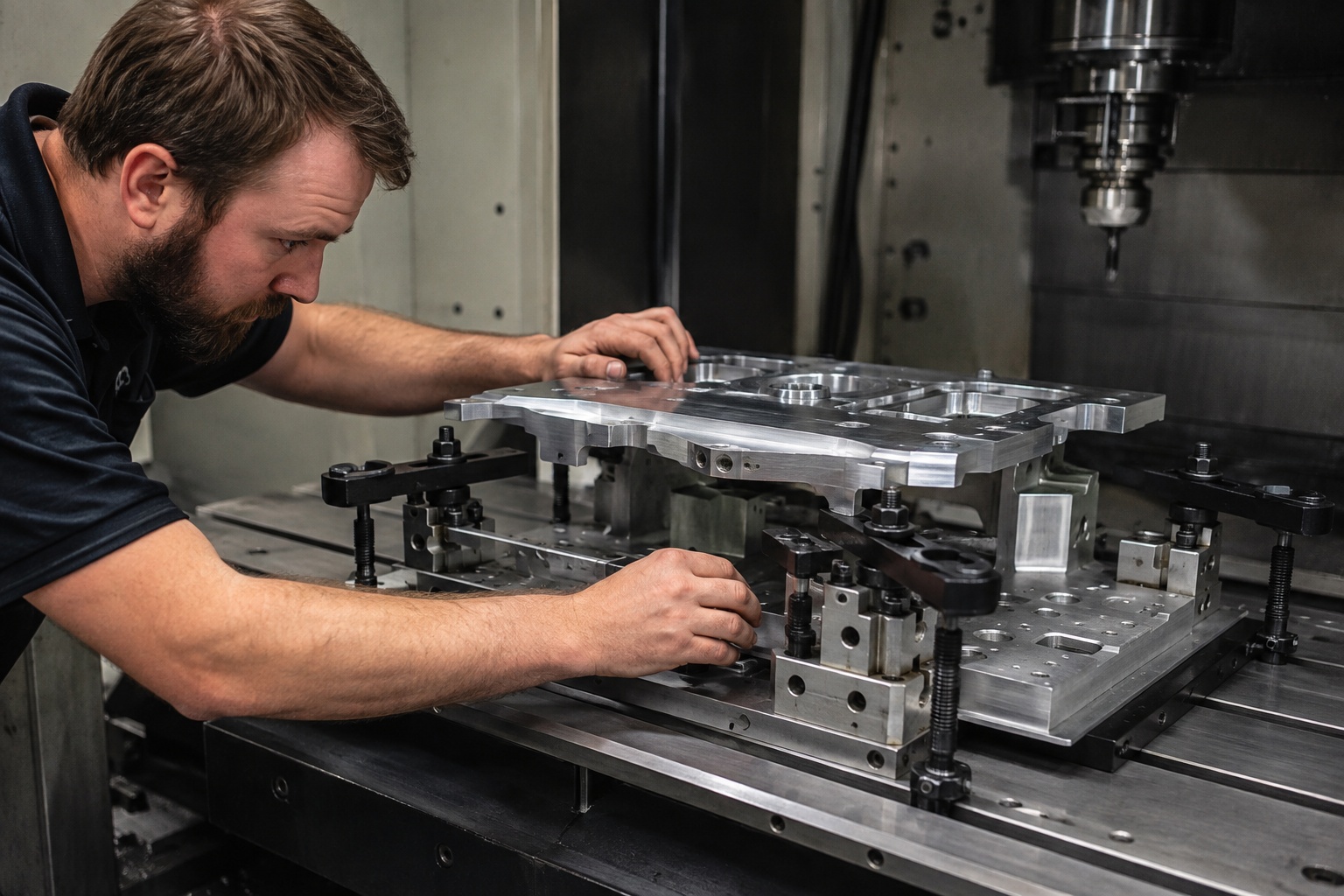

How Clamping Force Affects Part Accuracy
Clamping force is necessary because the workpiece must remain stable during machining. However, too much force can create another problem: deformation.
This is particularly important for thin-wall aluminum components and other lightweight structures. A part may appear perfectly flat while it is clamped, but after it is released, internal stress can cause the material to move slightly.
The final dimensions may then differ from the dimensions measured while the part was still under pressure.
For this reason, experienced machinists consider where the clamping force is applied and how much force is necessary. Support points should be positioned carefully so that the part remains stable without being unnecessarily compressed.
For high-precision components, fixture design and machining sequence often need to be considered together.

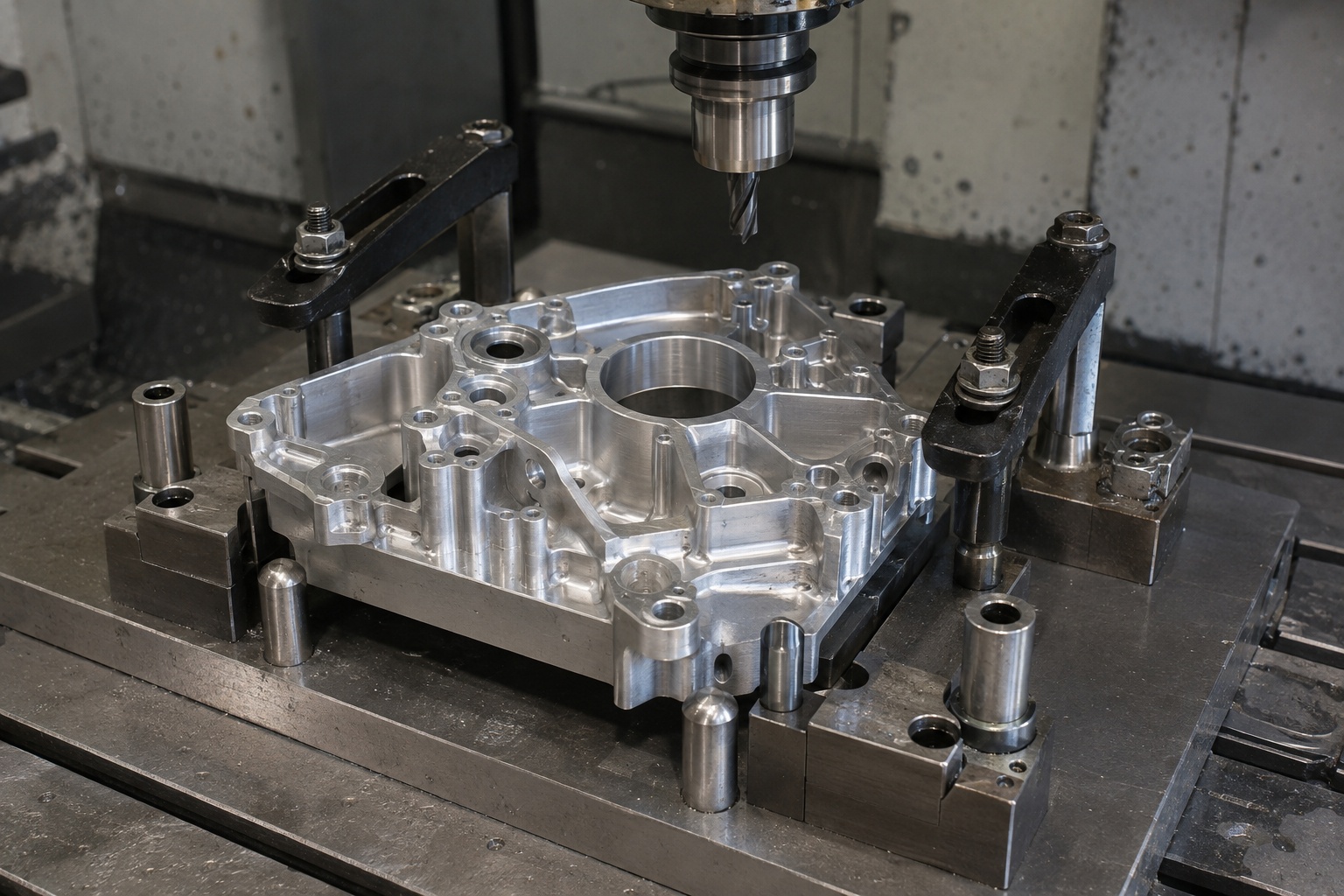

Locating the Part Correctly
Before cutting begins, the CNC machine needs to know exactly where the workpiece is located. This is usually achieved through a combination of locating surfaces, pins, stops, and work offsets.
A good locating system establishes a repeatable reference for the part. This is particularly important when multiple features must maintain a precise relationship with one another.
For example, if a component contains several mounting holes, the position of each hole may be correct individually but still be wrong relative to another feature if the workpiece was not positioned consistently.
Reliable locating therefore contributes directly to dimensional consistency.
The basic principle is simple: if the starting position changes from one setup to another, the final machining result can also change.

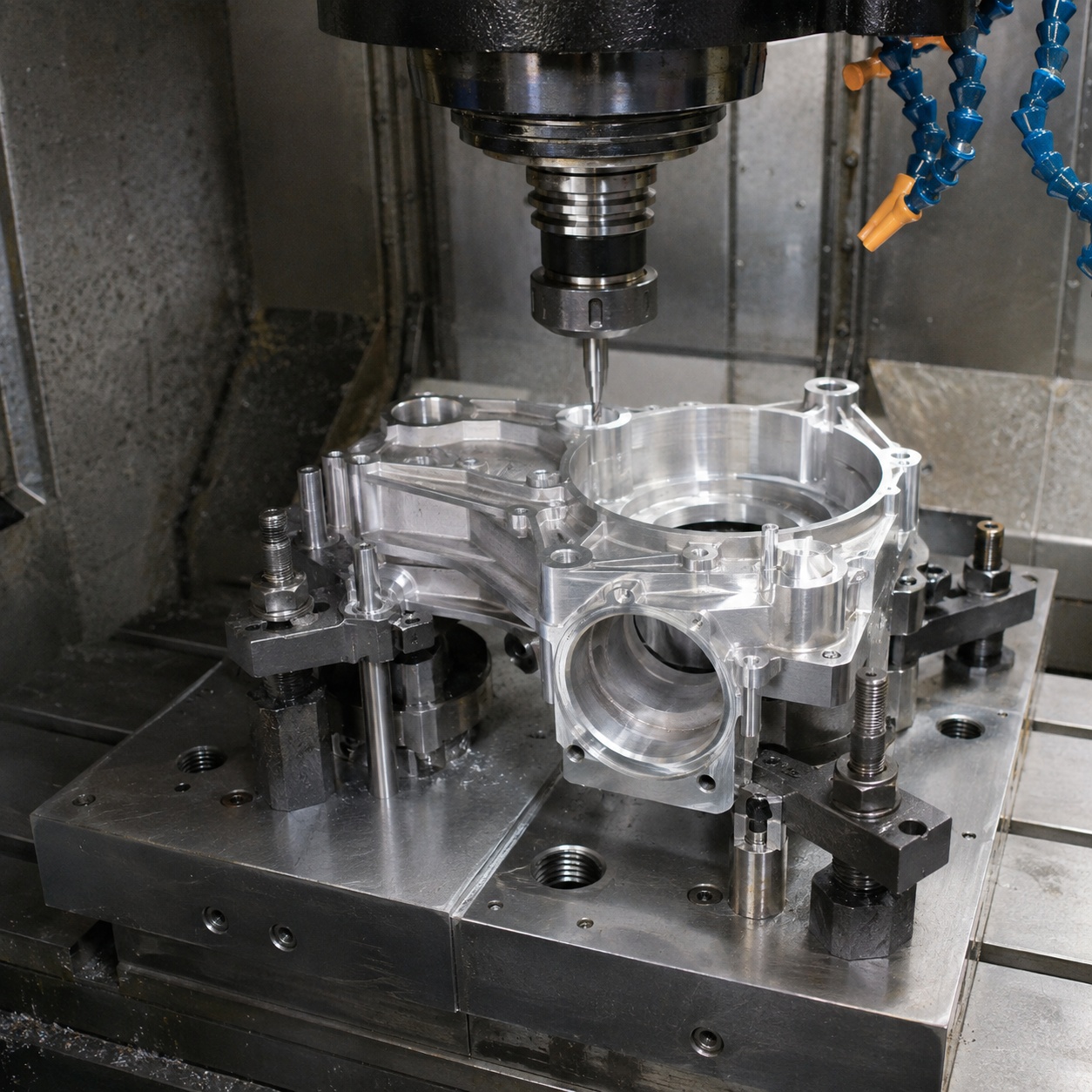

Why Thin-Wall Parts Are More Difficult to Fixture
Thin-wall components are often more challenging than solid blocks because they are easier to deform.
A heavy clamp placed directly against a thin wall can bend the material. Cutting forces can create additional vibration or movement. Once the clamp is removed, the component may partially return to its original shape.
This creates a difficult situation. The machine may have produced the programmed dimensions accurately, but the part itself was not stable throughout the process.
Manufacturers may use additional support points, softer contact surfaces, optimized cutting parameters, or different machining sequences to reduce this risk.
For some components, rough machining is completed first, followed by stress relief or repositioning before final machining. The goal is to reduce the amount of material movement during the final operation.
Reducing Setups Can Improve Consistency
Every time a workpiece is removed and repositioned, there is a possibility of introducing a small positioning error.
This does not mean that every part should be machined in a single setup. Some components simply cannot be processed from every direction without repositioning. However, reducing unnecessary setups can improve consistency and save production time.
This is one reason why multi-axis machining is useful for complex components. A 5 axis CNC machining process can access multiple surfaces and angled features with fewer manual repositioning operations.
For parts with several critical surfaces, fewer setups can reduce the number of opportunities for alignment errors.
K-TEK’s own five-axis machining service highlights reduced clamping operations as one of the advantages of the process, particularly for complex precision components.

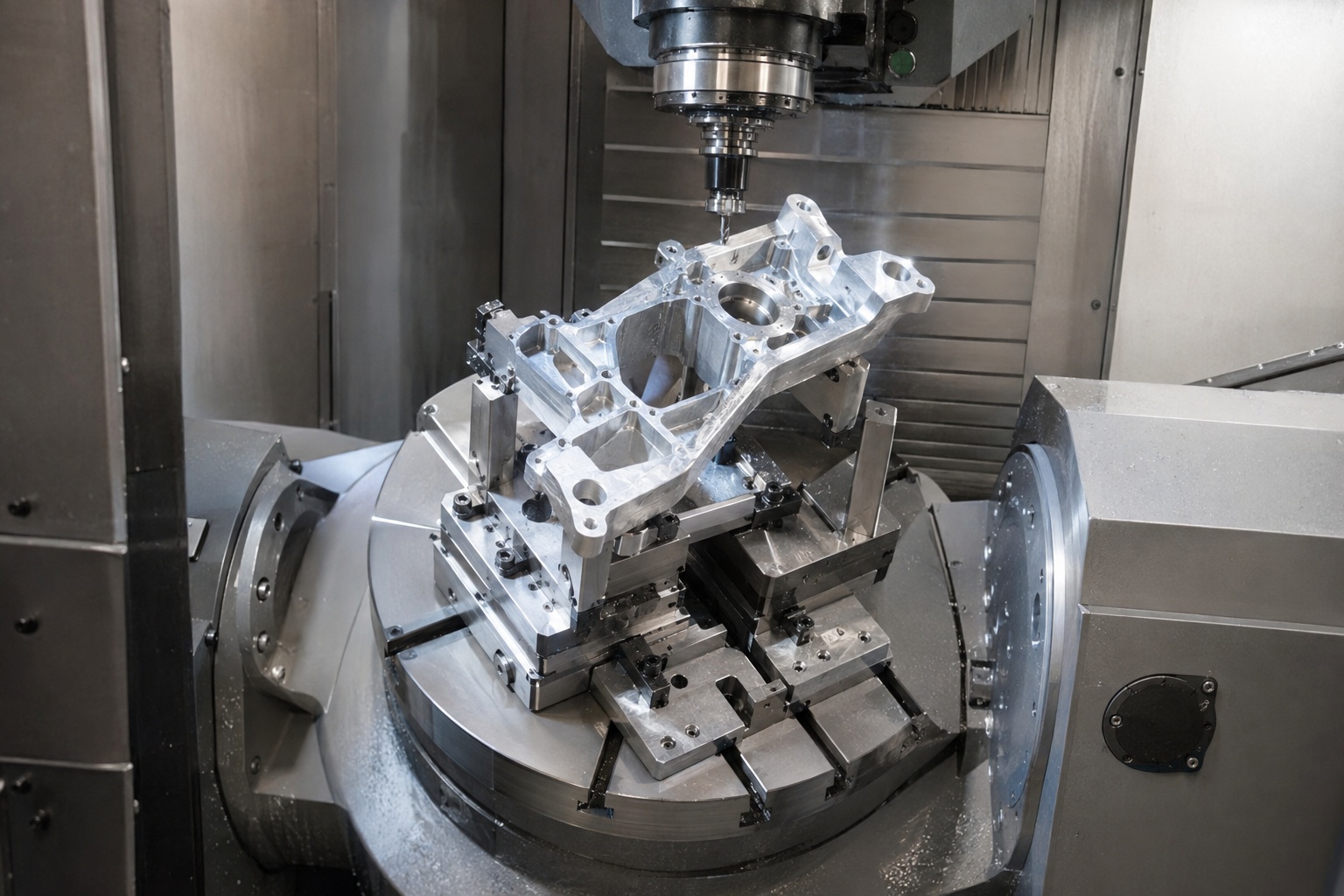

Fixture Design for Five-Axis CNC Machining
Five-axis machining introduces additional considerations for fixture design.
The workpiece must remain secure while allowing the machine’s rotary axes to move around it. The fixture therefore needs to provide sufficient support without unnecessarily blocking access to important surfaces.
For complex parts, fixture interference can become a serious issue. A clamp positioned correctly for one machining angle may block the tool from reaching another feature.
Engineers therefore need to consider the complete tool path when designing the workholding system.
This is particularly important for components with angled holes, curved surfaces, deep cavities, or multiple machining faces.
A well-designed fixture allows the machine to access more of the component while keeping the workpiece stable throughout the operation.
How Fixturing Affects Surface Finish
Fixture stability can also influence surface finish.
If a workpiece vibrates during cutting, the resulting surface may show chatter marks or inconsistent tool marks. The problem may initially appear to be related to cutting parameters, but insufficient workholding can also be responsible.
Stable support helps maintain the intended relationship between the cutting tool and the workpiece.
This is particularly important for large flat surfaces, thin walls, long components, and parts with deep cavities. These structures may be more sensitive to vibration than compact solid blocks.
For precision machining, surface quality is therefore influenced by more than just spindle speed and feed rate. Tool condition, material, machine rigidity, workholding, and machining strategy all contribute to the final result.

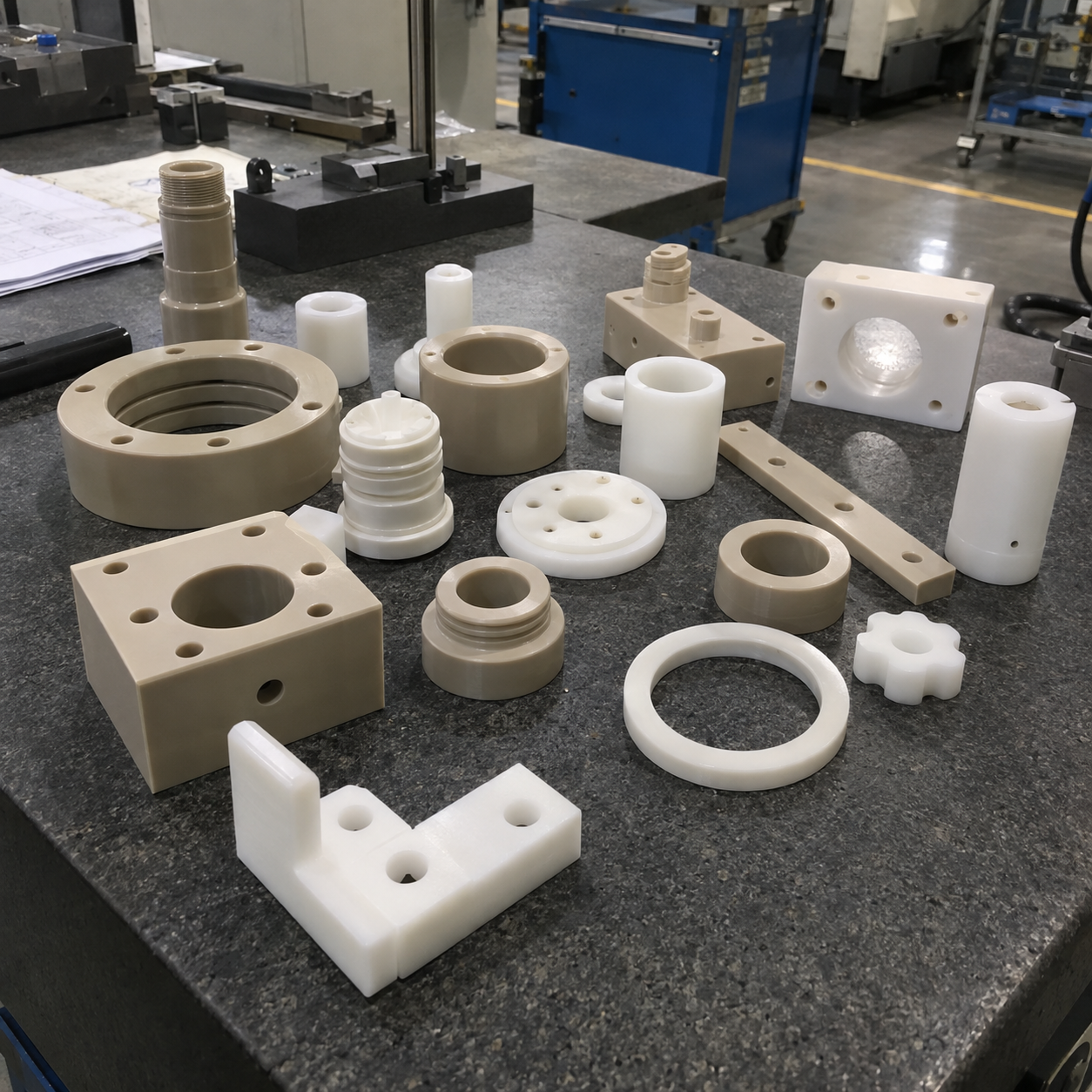

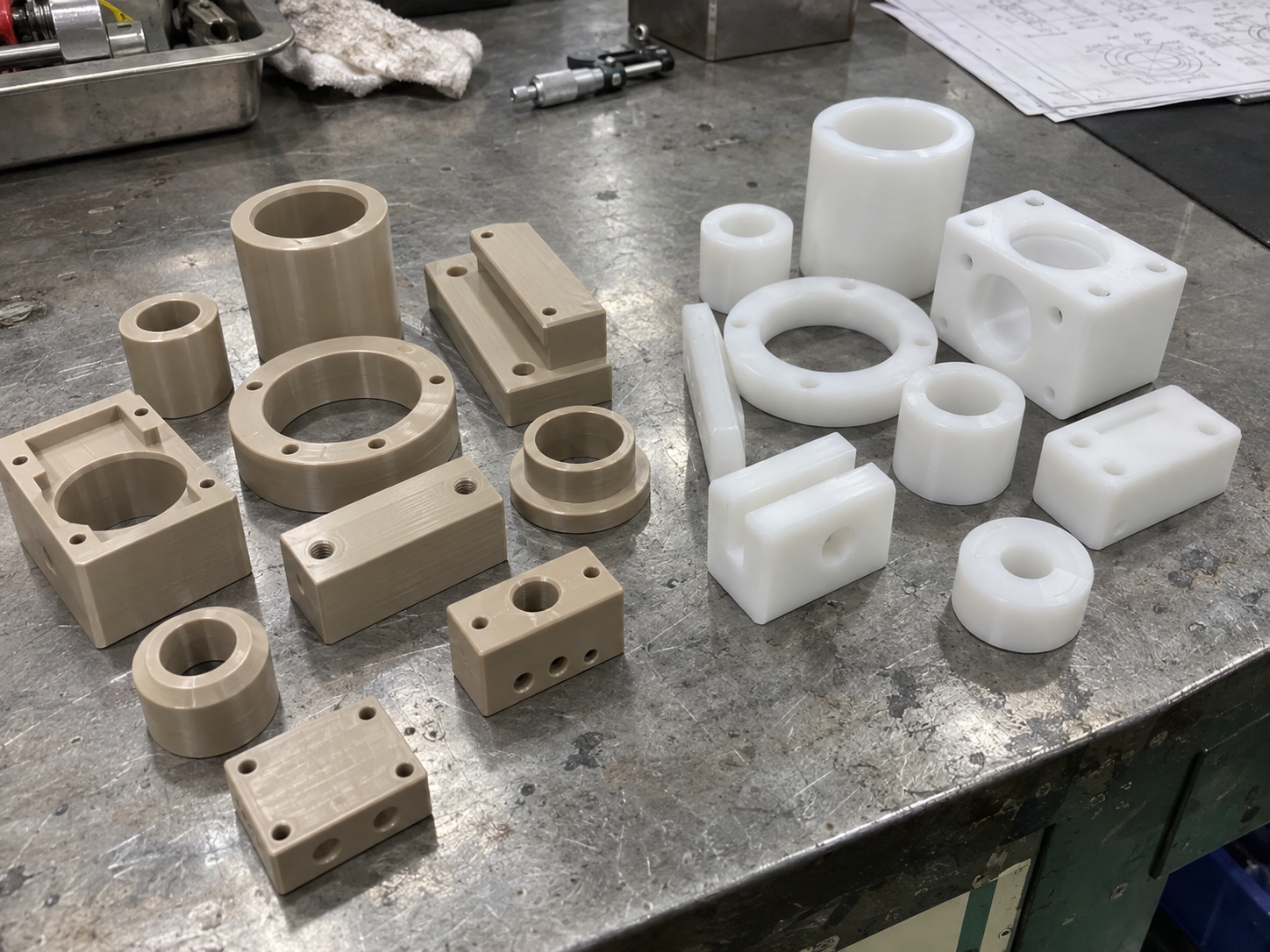

Different Parts Need Different Fixtures
There is no single fixture design that works for every CNC component.
A simple rectangular block may only need a standard vise. A round shaft may be held using a chuck or specialized soft jaws. A thin aluminum housing may require multiple support points. A complex aerospace component may require a custom fixture designed specifically around its geometry.
Production quantity also matters.
For prototypes and very small batches, manufacturers may prefer flexible workholding methods because designing a dedicated fixture may not be economical.
For larger production runs, a dedicated fixture can make sense because it can reduce setup time and improve repeatability.
The right choice depends on the part geometry, tolerance requirements, production volume, and number of machining operations.

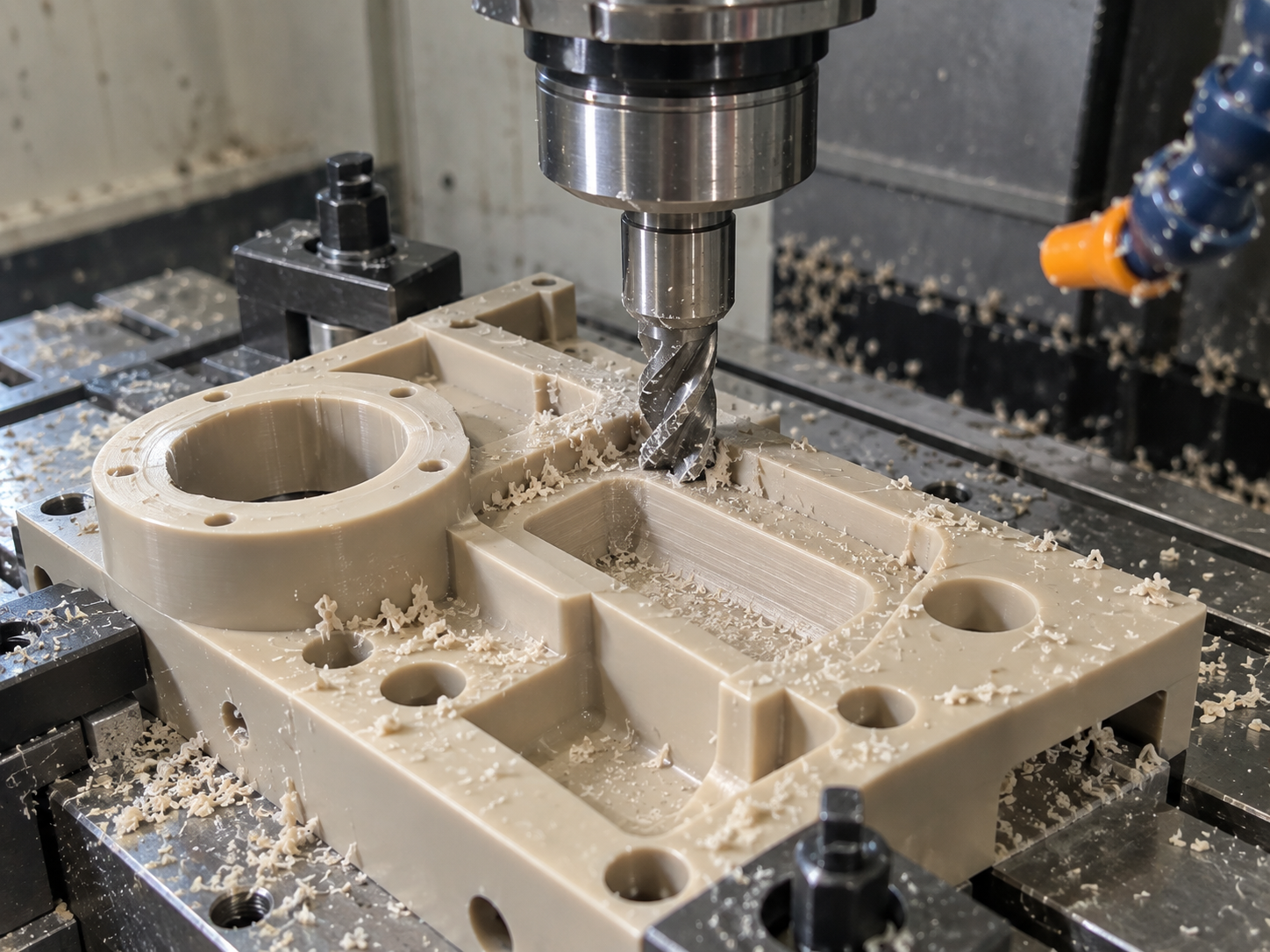

Fixture Design and CNC Milling
CNC milling often requires careful consideration of fixture accessibility because milling tools approach the workpiece from different directions.
A fixture that works well for one pocket or surface may prevent access to another feature. This becomes more complicated when the component has deep cavities or multiple mounting faces.
K-TEK’s CNC milling capability covers precision components across different materials and applications, making workholding an important part of achieving consistent results on custom parts.
When reviewing a new component, machinists should therefore consider the machining direction, tool access, support locations, and how the part will be repositioned between operations.

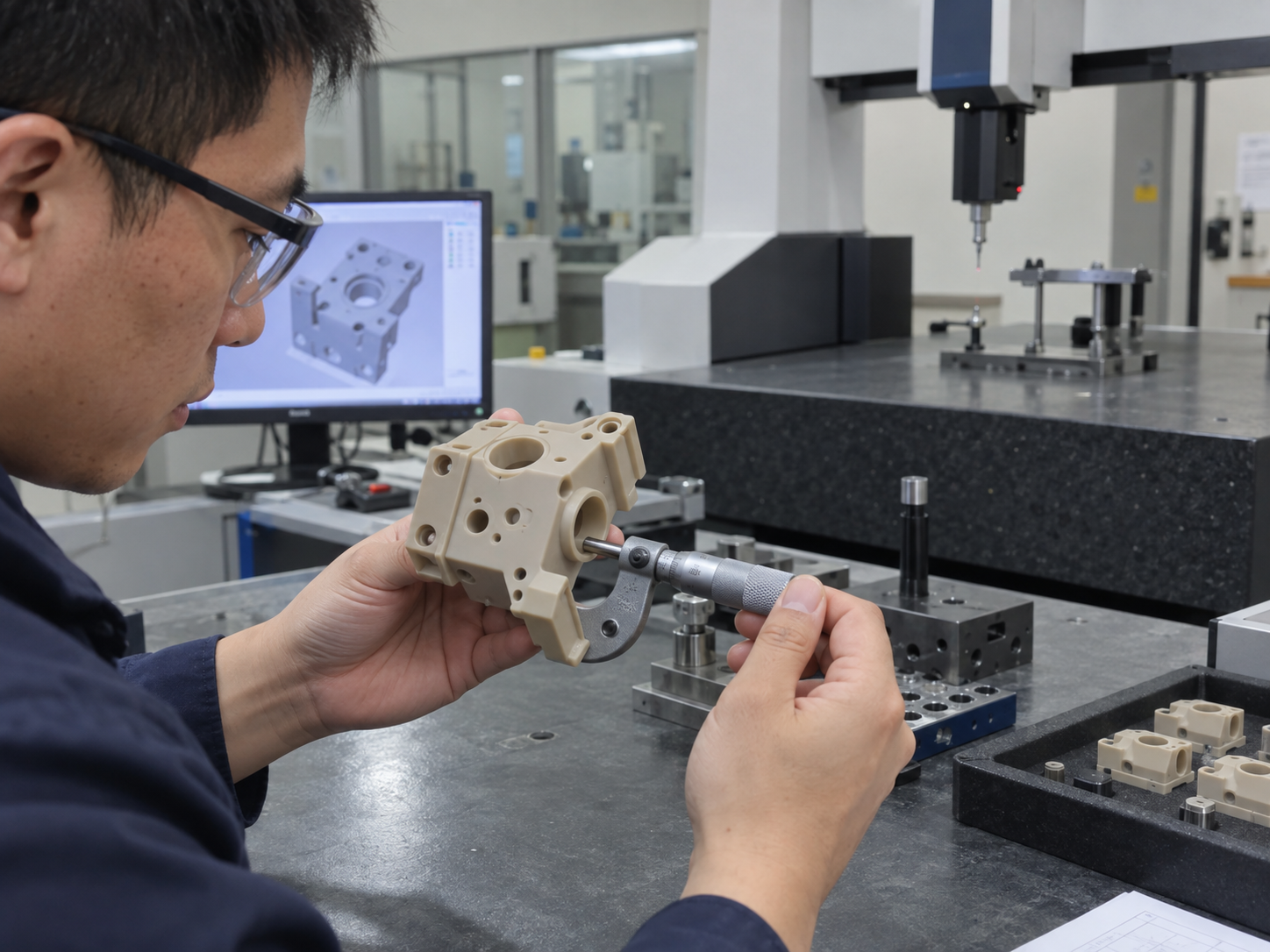

Fixturing and Inspection
The quality of a fixture can also affect inspection results.
If a component is inspected in a completely different position from the way it was machined, the inspection process needs to establish the correct datums and coordinate system.
For precision components, this is particularly important when several features are related to a common reference.
A good manufacturing process keeps the relationship between design datums, machining datums, fixture locations, and inspection references as consistent as possible.
This helps reduce confusion and makes it easier to identify whether an error came from the machining process, workholding, or measurement setup.
Common CNC Fixturing Problems
Several common workholding problems can affect CNC machining.
The first is insufficient clamping. If the workpiece moves during cutting, dimensions and surface quality may become inconsistent.
The second is excessive clamping. Too much force can deform thin or delicate components.
The third is poor locating. If the part is not positioned against reliable reference surfaces, the same machining program may produce slightly different results between setups.
The fourth is fixture interference. If clamps or supports block the cutting tool, certain features may become difficult to reach.
The fifth is chip accumulation. Chips trapped between the workpiece and fixture can prevent the part from sitting correctly and may introduce positioning errors.
These problems are relatively simple to prevent when workholding is considered during the early manufacturing planning stage.
Good Fixturing Starts with Part Design
Fixture design should ideally be considered before machining begins.
Designers can make manufacturing easier by providing suitable reference surfaces, avoiding unnecessarily thin sections, and considering how the component will be accessed during machining.
This is part of the broader Design for Manufacturability approach. A component that looks excellent in CAD may still be difficult to fixture or machine efficiently.
K-TEK has also published guidance on DFM for CNC machining, emphasizing the importance of considering manufacturing requirements during the design stage.
Early communication between designers and machining engineers can therefore prevent many fixture-related problems before production starts.
Conclusion
CNC fixturing may not be as visible as the machine tool or cutting process, but it has a direct influence on machining accuracy, dimensional consistency, surface finish, and production efficiency.
A good fixture positions the workpiece accurately, provides stable support, allows sufficient tool access, and minimizes unnecessary deformation.
For simple parts, standard workholding may be enough. For thin-wall, complex, or high-precision components, customized fixtures and carefully planned machining sequences can provide significant advantages.
As CNC components become more complex, workholding should be treated as an important part of the manufacturing process rather than simply a way to hold the part in place.
