Why Deburring Matters in CNC Machining for Better Part Quality
What Is Deburring in CNC Machining?

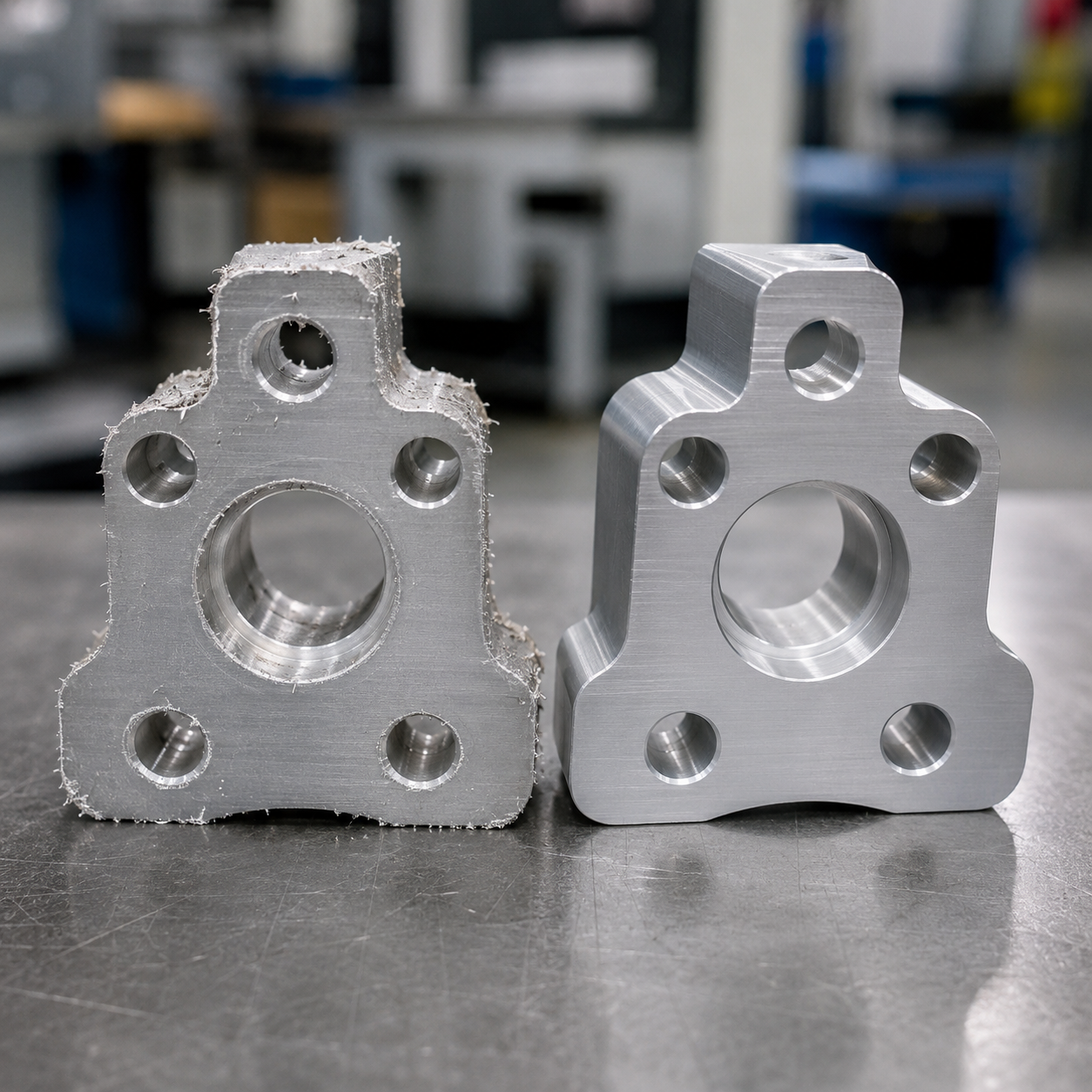

Deburring is the process of removing unwanted sharp edges, raised material, and small metal fragments from a machined part. These unwanted features are known as burrs. They may appear after milling, turning, drilling, tapping, grinding, or other cutting operations. Although burrs are often small, they can affect safety, assembly, appearance, and product performance.
A part may meet all dimensional requirements and still be unacceptable if burrs remain on critical edges or holes. This is why deburring is not simply a cosmetic step. In many projects, it is an essential part of the complete CNC manufacturing process.
How Burrs Form During Machining
Burrs form when the material is pushed, stretched, or torn near the edge of a cut. Instead of being removed cleanly as a chip, a small amount of material remains attached to the part. The shape and size of the burr depend on the material, cutting tool, machining direction, feed rate, cutting speed, and tool condition.
Soft and ductile materials such as aluminum, copper, and some stainless steels may produce noticeable burrs because the material tends to deform before breaking. Harder materials may create smaller but sharper burrs. Drilled holes, cross holes, slots, threads, and thin edges are especially common locations for burr formation.
Worn tools can also increase burr formation. When a cutting edge is no longer sharp, it pushes more material instead of cutting it cleanly. Good tooling and suitable machining parameters can reduce burrs, but they usually cannot eliminate them completely.
Why Burrs Can Create Safety Problems
One of the most obvious risks of burrs is personal injury. Sharp metal edges can cut the hands of operators, assembly workers, inspectors, or end users. Even a small burr around a drilled hole may cause injury during handling or installation.
This is especially important for parts that are handled frequently, such as machine covers, brackets, tools, fixtures, electronic housings, and consumer product components. These parts should normally have sharp edges removed or lightly broken to create a safer surface.
Safety requirements may also be written directly on the drawing with notes such as remove all burrs, break sharp edges, or deburr all holes. These instructions help the manufacturer understand that edge condition is part of the acceptance standard.
How Burrs Affect Assembly and Fit
Burrs can cause serious assembly problems even when the main dimensions are correct. A burr around a hole may prevent a screw, pin, or shaft from entering smoothly. A raised edge on a mating surface may stop two parts from sitting flat against each other. In precision assemblies, even a very small burr can create misalignment.
Burrs may also damage mating components during assembly. For example, a sharp edge inside a hole can scratch a shaft or damage a seal. A burr on a threaded feature can make tightening difficult or damage the matching thread.
For this reason, deburring should be planned according to how the part will be assembled. Critical holes, sealing areas, bearing seats, sliding surfaces, and locating features usually need more attention than non-functional external edges.
Deburring and Surface Appearance
Deburring also affects the visual quality of machined parts. Rough edges, hanging chips, and uneven corners can make a part look unfinished, even if the machining itself is accurate. For visible products, this may reduce the customer’s confidence in the overall quality.
Clean and consistent edges give machined parts a more professional appearance. This is especially important for electronic housings, medical devices, control panels, optical equipment, and branded products where the customer can see or touch the finished component.
However, deburring should not change the intended geometry. Excessive manual grinding may damage edges, affect dimensions, or create an uneven appearance. Good deburring removes unwanted material while keeping the designed shape and dimensions under control.
Common Deburring Methods

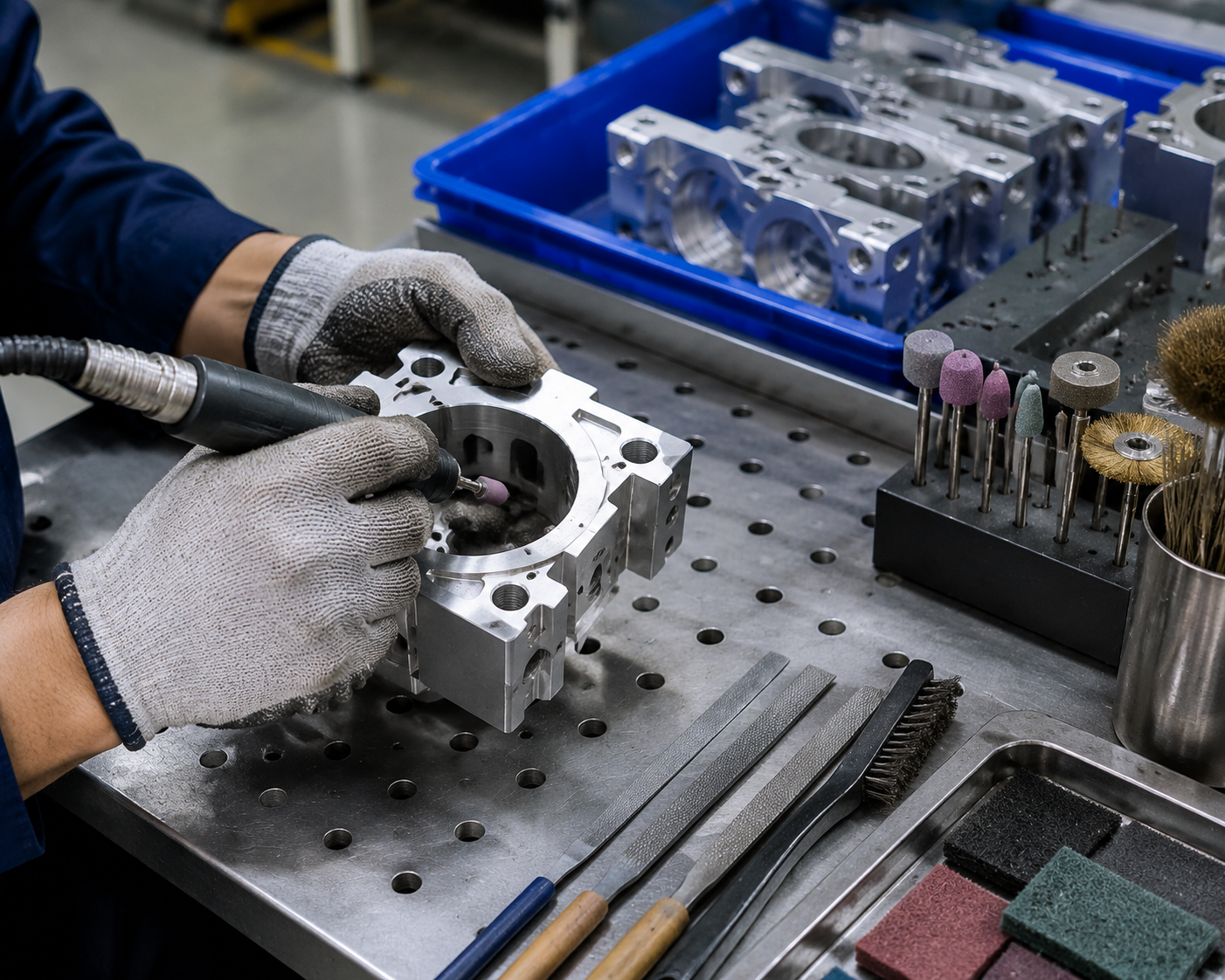

There are many ways to remove burrs, and the right method depends on the part material, geometry, quantity, and quality requirements. Manual deburring is one of the most common methods. Operators may use files, scrapers, abrasive tools, brushes, or small rotary tools to clean edges and holes.
Mechanical deburring can use tumbling, vibratory finishing, abrasive blasting, or brushing equipment. These methods are useful for larger quantities or parts with many accessible edges. They can improve consistency and reduce manual labor.
Thermal, electrochemical, or specialized automated deburring methods may be used for difficult internal features or high-volume production. These processes can reach areas that are difficult to access manually, but they may involve higher setup cost and more process control.
The supplier should choose a method that removes burrs effectively without damaging dimensions, threads, coatings, or cosmetic surfaces.

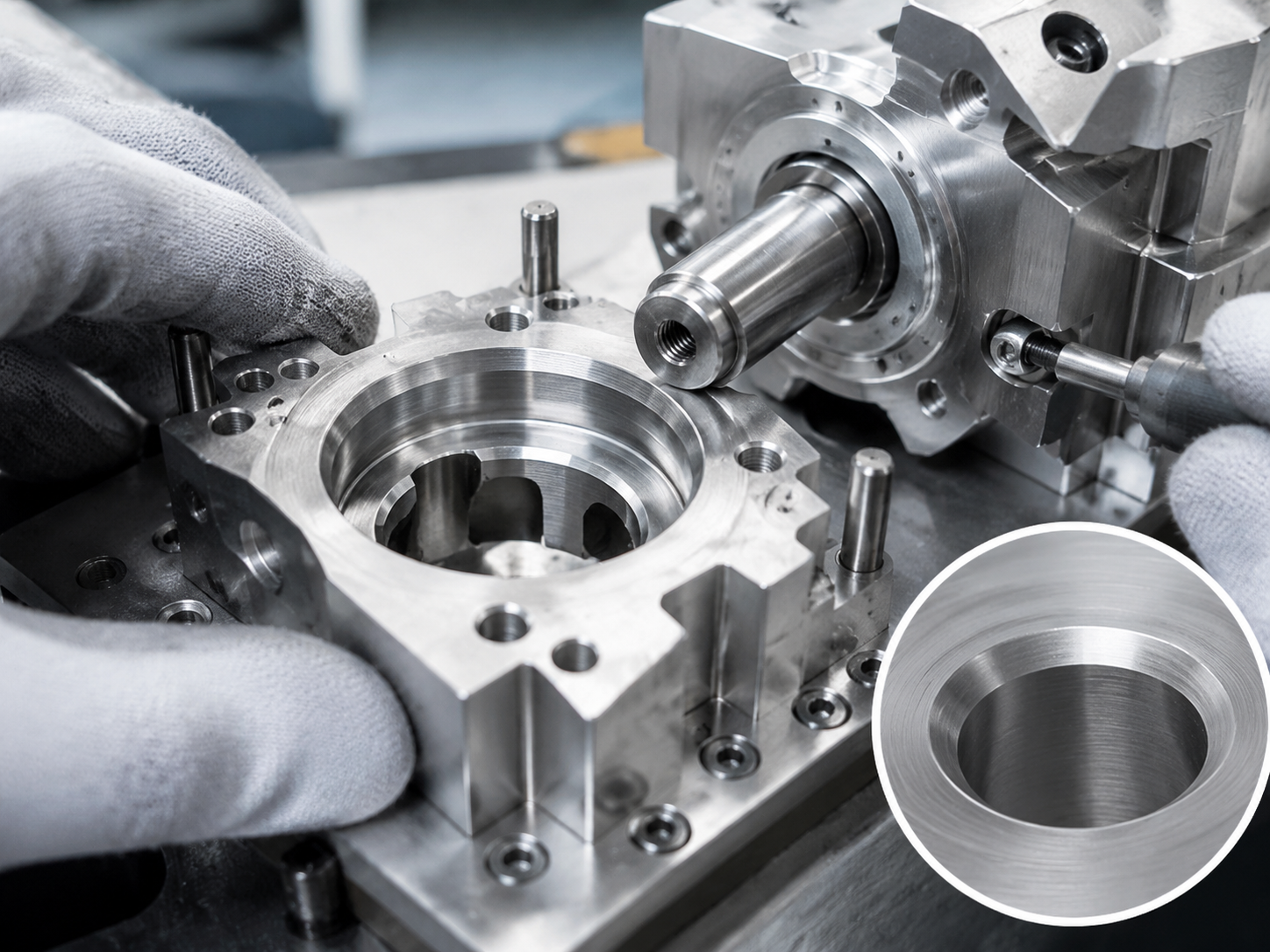

Edge Breaking, Chamfering, and Deburring
Deburring, edge breaking, and chamfering are related but not exactly the same. Deburring means removing unwanted material left by machining. Edge breaking means intentionally reducing the sharpness of an edge, usually with a very small radius or chamfer. Chamfering creates a defined angled surface with a specific dimension.
A drawing may state that all sharp edges should be broken without giving an exact size. In this case, the supplier usually removes sharpness while keeping the edge change small. If a chamfer such as 0.5 × 45 degrees is specified, it becomes a controlled machined feature that should be inspected.
These differences matter during quotation and production. A light edge break may require only simple finishing, while precise chamfers on many features can increase machining time and inspection work.
How Deburring Affects Cost and Lead Time
Deburring adds time to the manufacturing process, especially when a part has many holes, intersecting features, deep cavities, or complex edges. A simple block may require only a few minutes of edge cleaning, while a complicated part may need careful manual work on many different areas.
The cost also depends on the required quality level. Industrial internal parts may only need all loose burrs removed and sharp edges made safe. Cosmetic or medical components may require smooth, consistent edges with no visible marks from the deburring process.
For large quantities, the supplier may need to design a more efficient deburring process or use mechanical equipment. Although this may require preparation, it helps improve consistency and reduce unit labor time.
Buyers should include deburring and edge requirements in the original RFQ. Clear instructions allow the supplier to include the correct process and cost from the beginning.
Deburring for Different Materials
Different materials require different deburring approaches. Aluminum is relatively soft, so it is easy to remove burrs, but it can also be scratched or over-polished easily. Extra care is needed for aluminum parts that will later receive bead blasting or anodizing.
Stainless steel burrs can be harder and sharper. Removing them may require stronger tools and more time. Stainless parts used in food or medical equipment may also need careful finishing to avoid contamination traps and support proper cleaning.
Engineering plastics can also form burrs or soft raised edges, especially around drilled holes and milled slots. The deburring method must avoid melting, tearing, or deforming the plastic surface.
Brass and copper may require gentle finishing because cosmetic surfaces can be marked easily. The best method always depends on the combination of material, geometry, and final appearance requirements.
How Designers Can Reduce Burr Problems
Burr formation can often be reduced during the design stage. Designers should think about machining direction, edge accessibility, and how intersecting holes will be finished. Features that are impossible to reach with normal deburring tools may require more expensive processes.
Adding suitable chamfers or radii to important edges can make the final requirement clearer. It may also allow the feature to be created directly during CNC machining instead of relying entirely on manual finishing.
Designers should also avoid extremely small internal intersections when they are not functionally necessary. Simple and accessible geometry is usually easier to machine, inspect, and deburr.
Early discussion with the CNC supplier can help identify burr risks before production begins. This is especially useful for medical, fluid control, food equipment, and precision assembly parts.
How to Specify Deburring on a Drawing
A clear drawing should explain the expected edge condition. Common notes include remove all burrs, break all sharp edges, deburr all holes, or no loose particles permitted. If some edges require a specific chamfer or radius, those features should be dimensioned separately.
The designer should avoid vague instructions when edge condition is critical. For example, sharp edge not allowed may be interpreted differently by different suppliers. A specific maximum edge break or chamfer size gives a clearer acceptance standard.
It is also useful to identify areas where the edge must remain sharp for functional reasons. Cutting tools, sealing features, and some locating surfaces may need special control. Not every edge should automatically receive the same treatment.
Conclusion
Deburring is a small step with a large effect on CNC machined part quality. It improves safety, supports smooth assembly, protects mating components, and creates a more professional appearance. In precision applications, it can also prevent misalignment, leakage, wear, and contamination problems.
The correct deburring method depends on the material, geometry, quantity, and final application. Good results require a balance between fully removing unwanted burrs and protecting the designed dimensions and surfaces.
By including clear edge requirements in drawings and discussing difficult features early, buyers and engineers can improve quality, control cost, and reduce production problems.
