CNC Milling vs CNC Turning: Key Differences and How to Choose
Introduction: Two Core CNC Machining Methods
CNC milling and CNC turning are two of the most widely used machining processes in modern manufacturing. Both are used to produce high precision metal and plastic parts, but they operate in very different ways. Understanding the difference between them helps engineers and buyers choose the right process, reduce cost, and improve production efficiency.
CNC milling uses rotating cutting tools to remove material from a fixed workpiece, while CNC turning rotates the workpiece itself while the cutting tool remains relatively stationary. Because of this difference, each process is better suited for different types of shapes and applications.

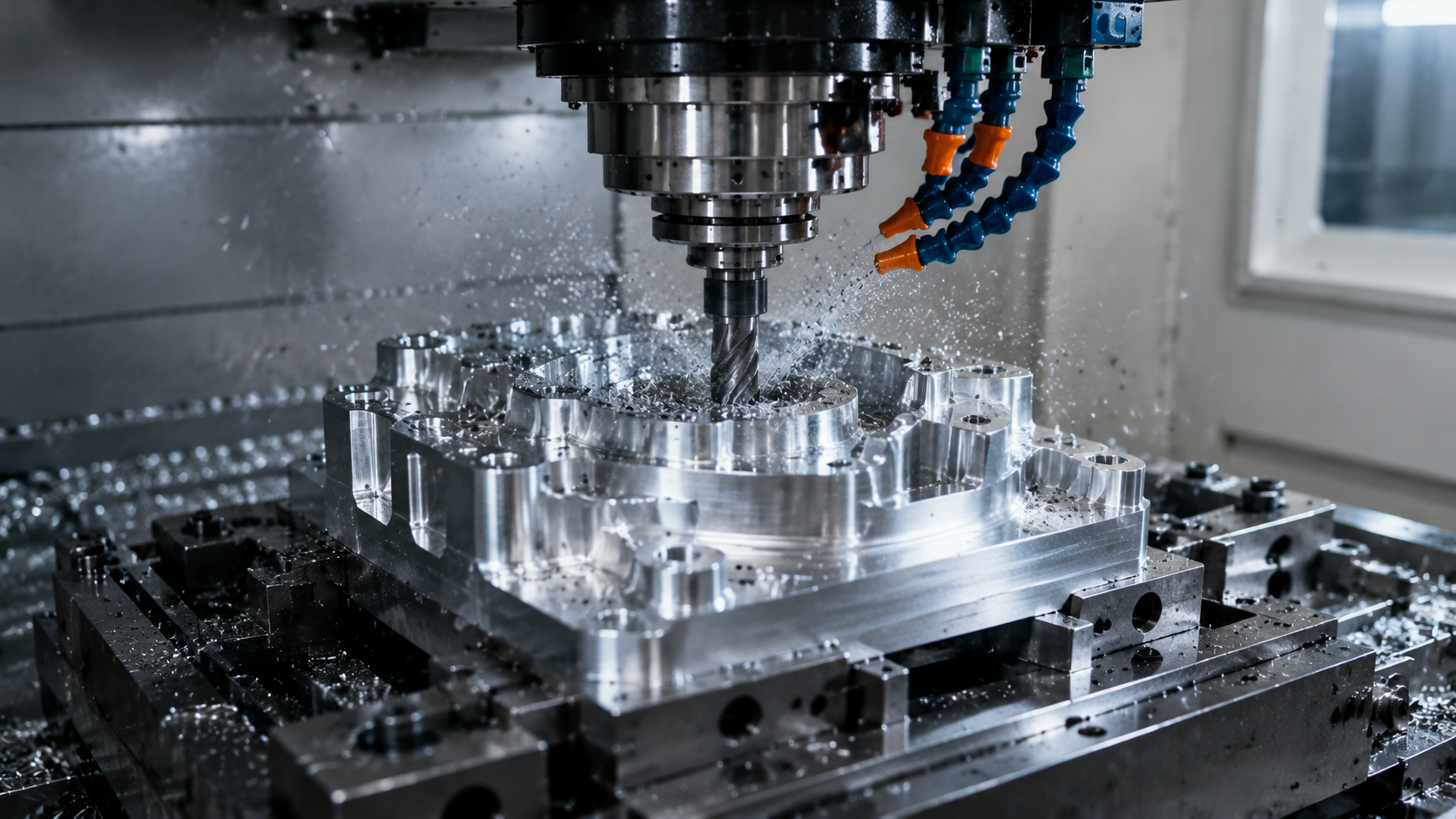

What Is CNC Milling?
CNC milling is a machining process where a rotating cutting tool moves across a fixed workpiece to remove material. It is highly flexible and can produce complex geometries such as slots, pockets, holes, surfaces, and 3D contours. Because of this flexibility, CNC milling is widely used for parts with complex shapes and multiple features.
Milling machines can operate in multiple axes such as 3-axis, 4-axis, or 5-axis configurations. The more axes a machine has, the more complex geometries it can produce in a single setup. This makes CNC milling ideal for precision parts, aerospace components, industrial equipment parts, and custom mechanical structures.

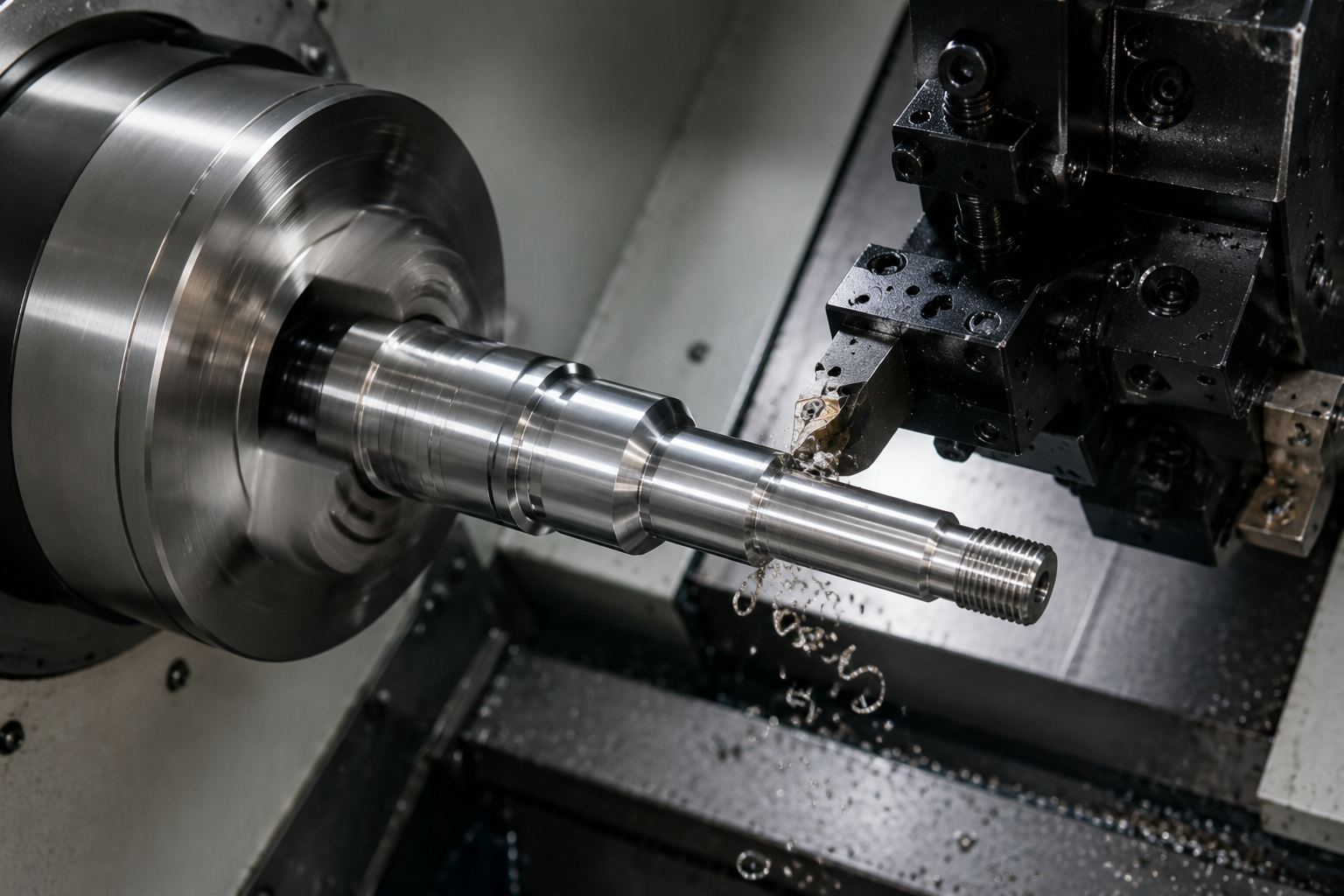

What Is CNC Turning?
CNC turning is a process where the workpiece rotates at high speed while a stationary cutting tool removes material. It is mainly used to produce cylindrical or round parts such as shafts, bushings, pins, and threaded components. Turning is generally faster and more efficient for round geometries compared to milling.
Turning machines, also known as lathes, are highly efficient for producing symmetrical parts. They can achieve very good surface finish and tight dimensional control on diameters. In many cases, CNC turning is the preferred method for high volume production of rotational parts.

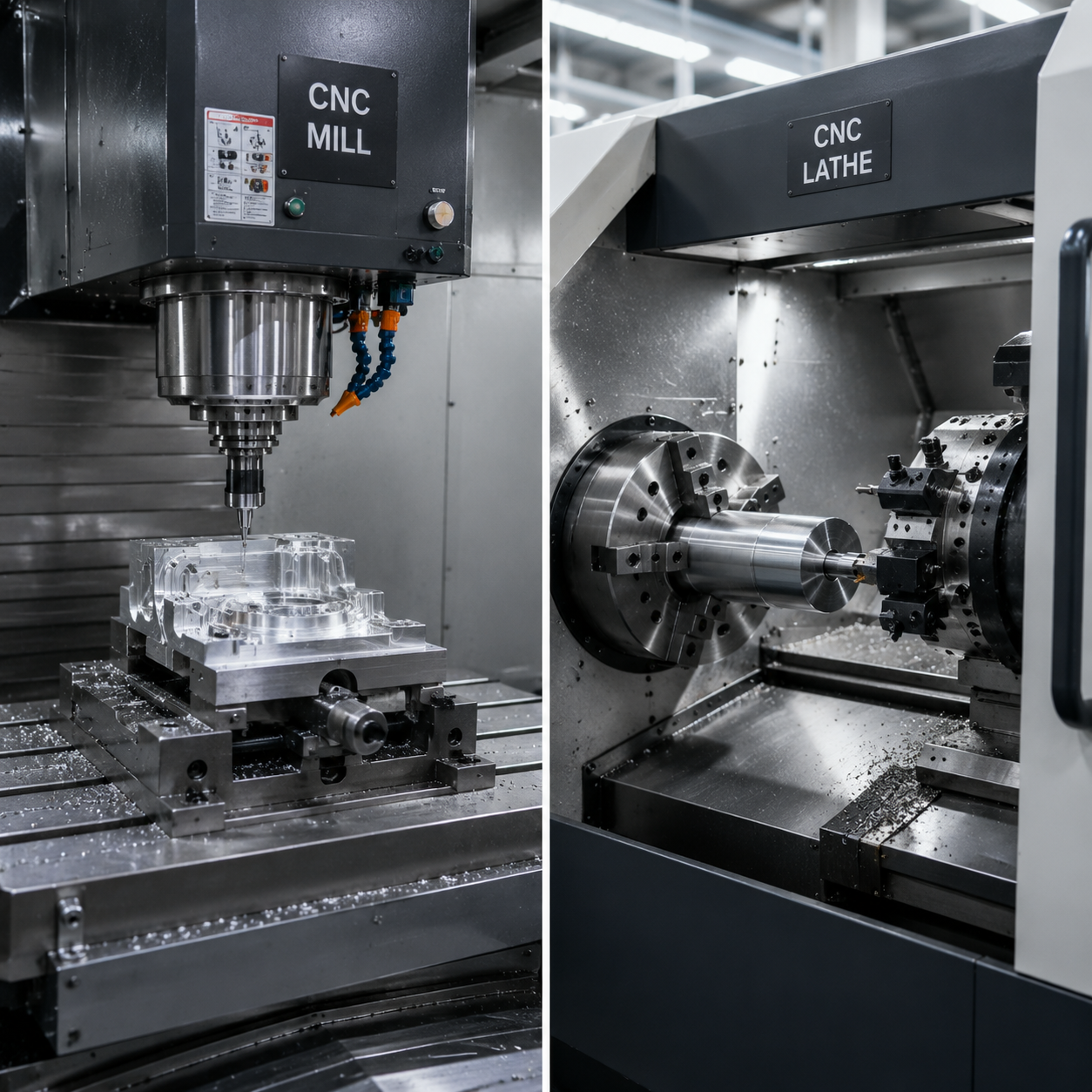

Key Differences Between Milling and Turning
The main difference between milling and turning lies in the movement of the tool and the workpiece. In milling, the tool rotates and moves across a stationary part. In turning, the part rotates while the tool remains mostly fixed. This difference determines what kind of shapes each process can produce efficiently.
CNC milling is better for complex, irregular, or multi-surface parts. CNC turning is better for round, cylindrical, or symmetrical parts. Milling is more flexible in geometry, while turning is more efficient in producing simple rotational shapes.
In terms of cost, turning is usually cheaper for round parts because of higher efficiency and shorter machining time. Milling may be more expensive but is necessary when the geometry cannot be produced by rotation alone.
When to Use CNC Milling
CNC milling should be used when the part has complex geometry that cannot be achieved through rotation. This includes features like pockets, flat surfaces, irregular shapes, and multi-axis contours. It is also suitable for parts that require high precision across multiple faces.
Milling is commonly used in industries such as robotics, aerospace, electronics, and industrial automation. It is especially valuable for custom machined parts where flexibility and design complexity are important.
When to Use CNC Turning
CNC turning is the best choice for cylindrical parts. If the part design is mainly round and symmetrical, turning is usually more efficient and cost-effective. It is widely used for shafts, pins, rollers, threaded rods, and mechanical connectors.
Turning is also preferred when high production speed is required for simple geometries. Because the cutting process is continuous and stable, it can achieve consistent quality with relatively low cost per part.
Can Milling and Turning Be Combined?
In modern manufacturing, many parts require both milling and turning operations. For example, a shaft may be primarily turned but also require milled flats, holes, or slots. In such cases, CNC mill-turn machines are used to complete multiple processes in one setup.
This combined approach reduces setup time, improves accuracy, and increases production efficiency. It is especially useful for precision parts where alignment between features is critical.
How to Choose the Right Process
The simplest way to choose between milling and turning is to look at the part geometry. If the part is mostly cylindrical, turning is usually the best option. If the part has complex shapes or multiple surfaces, milling is more suitable. In many cases, both processes may be required to complete the final design.
Cost, lead time, and precision requirements should also be considered. A good CNC supplier can help evaluate the drawing and recommend the most efficient manufacturing method based on real production conditions.
Conclusion
CNC milling and CNC turning are both essential machining processes, but they serve different purposes. Milling is ideal for complex geometries and multi-surface parts, while turning is best for cylindrical and rotational components. Choosing the right process helps improve efficiency, reduce cost, and ensure better product performance.
In many real projects, combining both methods is the most practical solution. Understanding their differences allows engineers and buyers to make better decisions in design and sourcing.
Need help choosing between CNC milling and turning for your parts? Contact us today for expert review and a fast quotation based on your drawings.
