How CMM Inspection Ensures Quality in Precision CNC Machining
Why Inspection Matters in CNC Machining
Precision CNC machining is not only about producing a part that looks correct. The finished component must also meet the dimensions, tolerances, and geometric requirements specified on the drawing. This is especially important for parts used in automation, robotics, aerospace, medical equipment, electronics, and other applications where even a small dimensional error may cause assembly or performance problems.
Traditional tools such as calipers, micrometers, height gauges, and bore gauges remain useful for many dimensions. However, when a part contains complex geometry, multiple datum relationships, or strict GD&T requirements, more advanced inspection equipment may be needed. This is where a Coordinate Measuring Machine, commonly called a CMM, becomes extremely valuable.
What Is a Coordinate Measuring Machine?

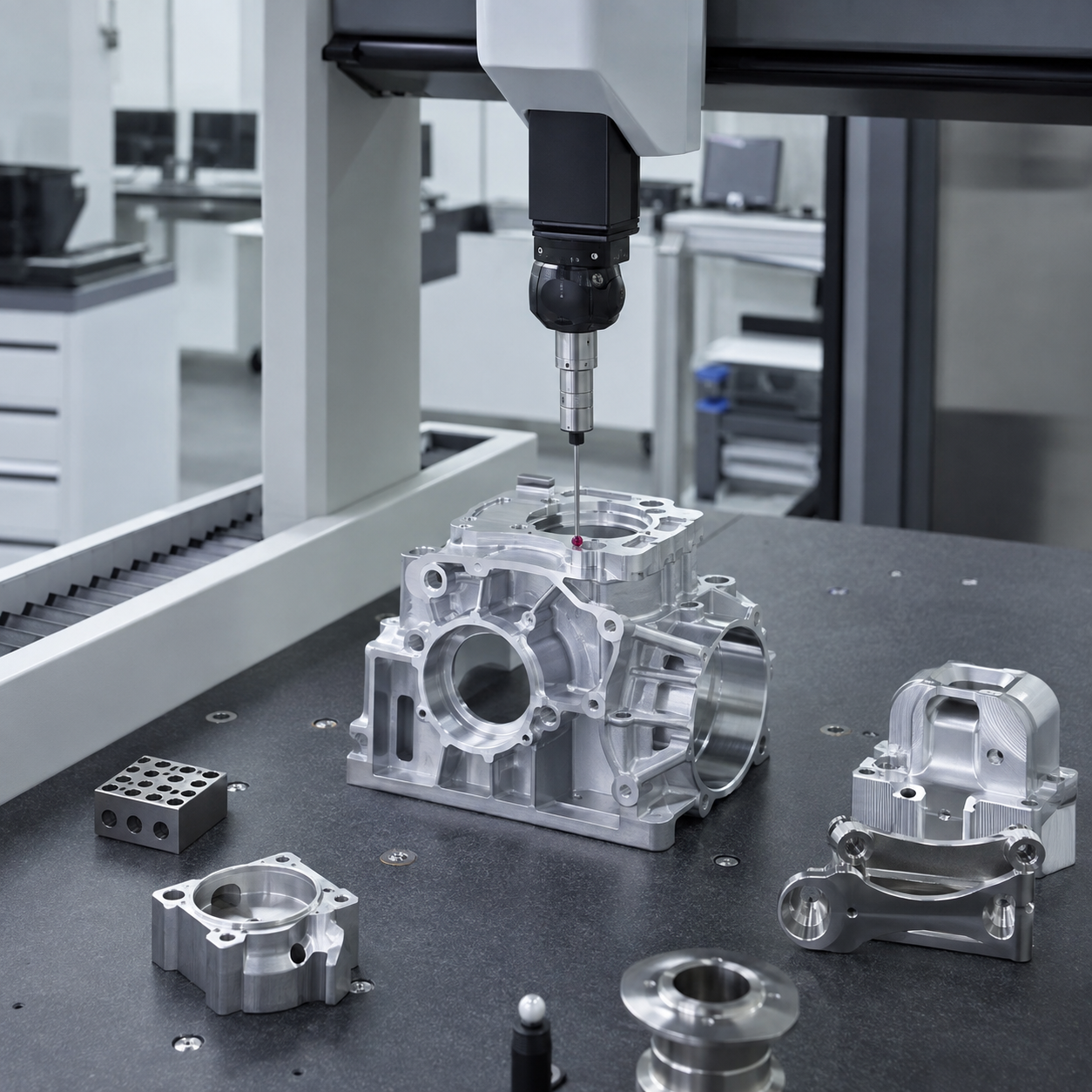

A CMM is a precision measurement system used to determine the exact position of points on the surface of a part. A probe moves along different axes and touches selected features on the component. The machine records these measurement points and compares them with the required dimensions or CAD data.
Depending on the machine and inspection system, a CMM can measure dimensions such as diameter, distance, hole position, flatness, perpendicularity, parallelism, profile, and many other geometric characteristics. This makes it especially useful for complicated parts where conventional handheld tools may not provide enough information.
For precision machining projects, CMM inspection provides a more complete picture of whether the manufactured part truly matches the engineering drawing.
Why CMM Inspection Is Important for Complex Parts
Modern CNC machines can create very complicated components with pockets, angled surfaces, precision holes, curved profiles, and multiple machining faces. These parts may contain many dimensions that are related to one another. Measuring only one feature at a time may not be enough to confirm that the entire part is correct.
For example, several holes may individually have the correct diameter but still be incorrectly positioned relative to a datum. A machined surface may have the correct size but fail a parallelism requirement. These conditions are difficult to evaluate with a simple caliper.
CMM inspection can evaluate these relationships directly. This makes it particularly useful for precision fixtures, housings, bearing seats, robot components, optical parts, and mechanical assemblies where several features must work together accurately.
CMM Inspection and GD&T
Geometric Dimensioning and Tolerancing, or GD&T, is widely used on modern engineering drawings. Instead of controlling only basic dimensions, GD&T defines how features should relate to specific datums and to one another. Typical requirements include position, flatness, perpendicularity, parallelism, concentricity, runout, and profile.

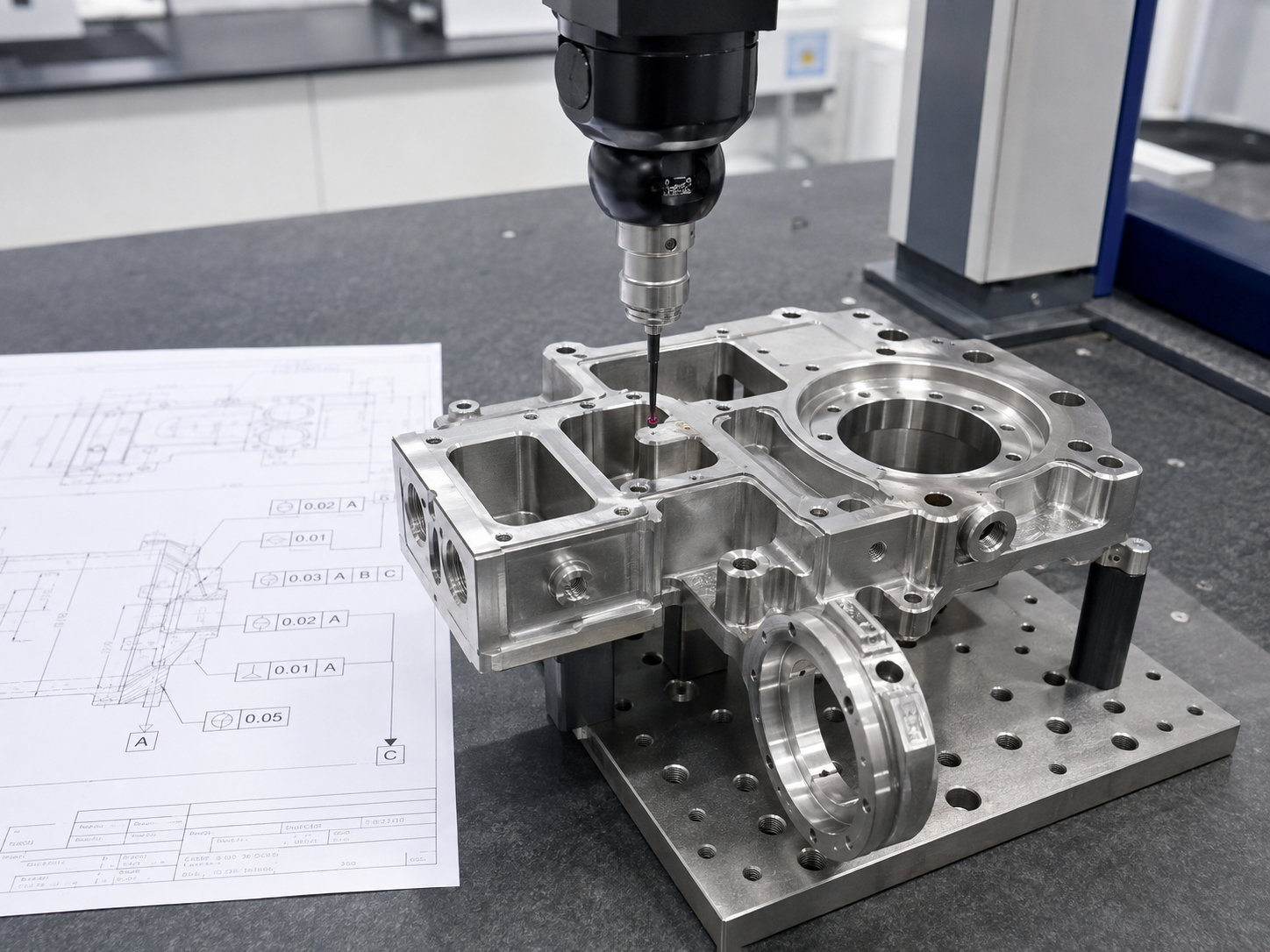

These requirements can be difficult to verify using standard manual tools. A CMM can establish the drawing datums, measure the relevant features, and calculate the geometric relationship between them. This provides much more reliable inspection data for complex GD&T requirements.
For buyers, this is important because a part may appear dimensionally correct but still fail during assembly if its geometric relationships are wrong.
First Article Inspection Before Batch Production
CMM inspection is especially useful during first article inspection. Before a full production batch is completed, the supplier can machine the first part and inspect its critical dimensions. If the results meet the drawing requirements, the same machining process can then continue for the remaining quantity.
This approach helps identify problems early. If a hole position, dimension, or geometric feature is slightly outside tolerance, machine offsets, tooling, or programming can be adjusted before many parts are produced.
For custom CNC parts with tight tolerances, first article inspection can significantly reduce production risk. It is particularly valuable for new designs, new suppliers, or parts that have not been manufactured before.
CMM Inspection During Batch Production
Quality control does not stop after the first article is approved. During batch production, dimensions may slowly change because of tool wear, temperature variation, machine conditions, or material differences. Periodic inspection helps identify these changes before they result in a larger quality problem.
Depending on the project, the manufacturer may inspect selected samples from each production batch or perform more frequent checks on critical dimensions. The inspection frequency should match the tolerance level, production quantity, and risk of the component.
For parts with very critical characteristics, CMM data can help confirm that the machining process remains stable throughout production.
CMM Inspection Reports for Customers

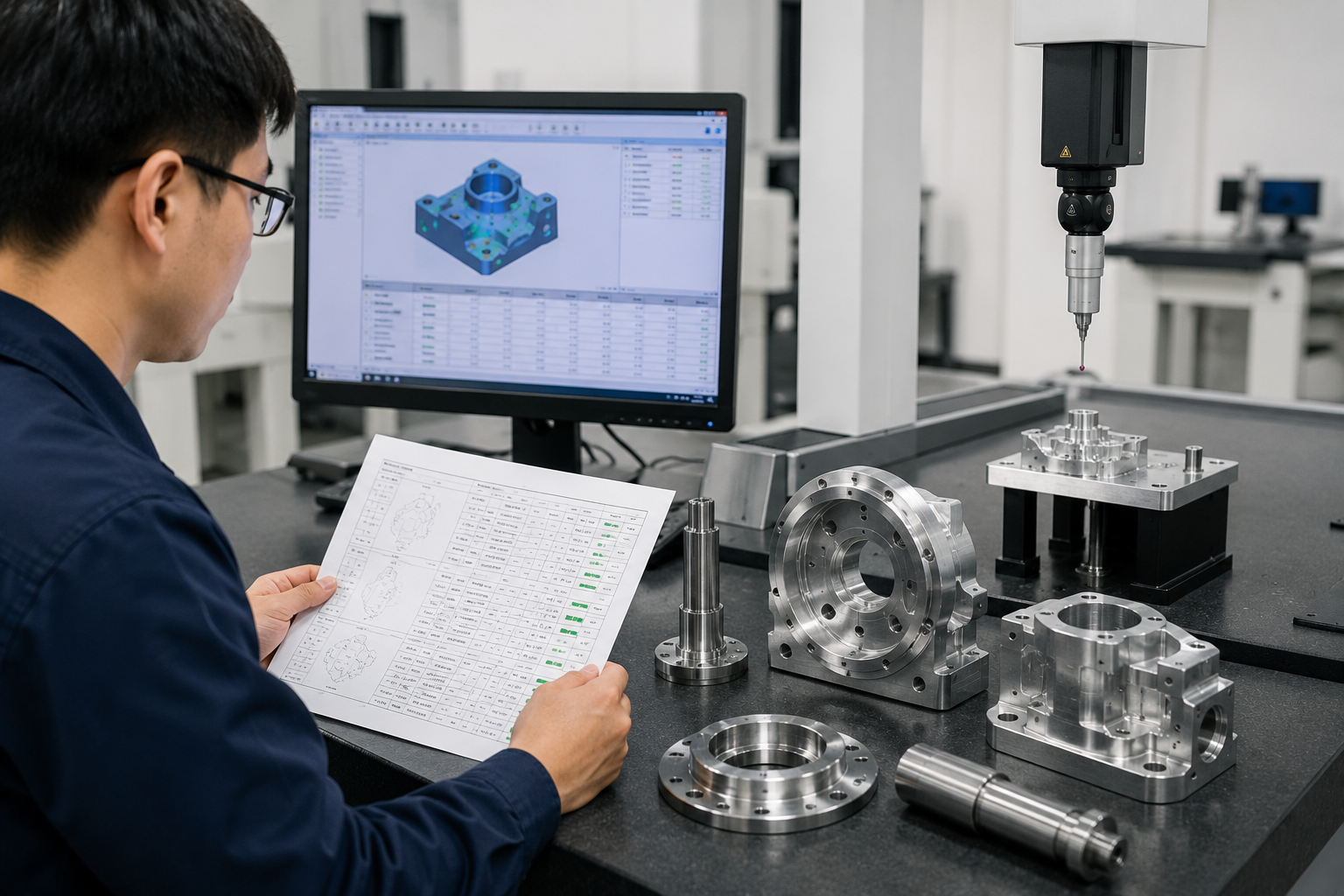

One advantage of digital CMM inspection is that measurement results can be recorded and organized into inspection reports. These reports may include the nominal dimension, tolerance, measured value, and pass or fail result for each inspected feature.
For buyers, an inspection report provides additional confidence before the parts are shipped. It is especially useful when the customer cannot inspect the components immediately after production or when the parts will be shipped internationally.
Inspection reports can also support future repeat orders. If the same component is manufactured again, previous measurement records can serve as useful reference data for process control and quality comparison.
CMM Inspection Does Not Replace All Measuring Tools
Although CMM inspection is powerful, it does not mean every dimension must be measured with a CMM. In many machining projects, simpler tools are faster and more practical for basic dimensions. Calipers, micrometers, thread gauges, pin gauges, and height gauges remain important parts of quality control.
For example, checking a simple outer diameter may take only a few seconds with a micrometer. Using a CMM for every basic dimension would increase inspection time without providing meaningful additional value.
A good quality system uses the appropriate measurement method for each feature. CMM inspection should be focused where it provides the greatest benefit, such as complex relationships, tight tolerances, GD&T requirements, and difficult-to-measure geometries.
What Can Affect CMM Measurement Accuracy?
CMM inspection itself must also be properly controlled. The machine should be calibrated, and the inspection environment should remain stable. Temperature is especially important because metal expands and contracts as temperature changes.
The part should also be clean before measurement. Metal chips, oil, dust, or burrs on a surface may influence probe contact and produce incorrect readings. This is why parts are normally cleaned before precision inspection.

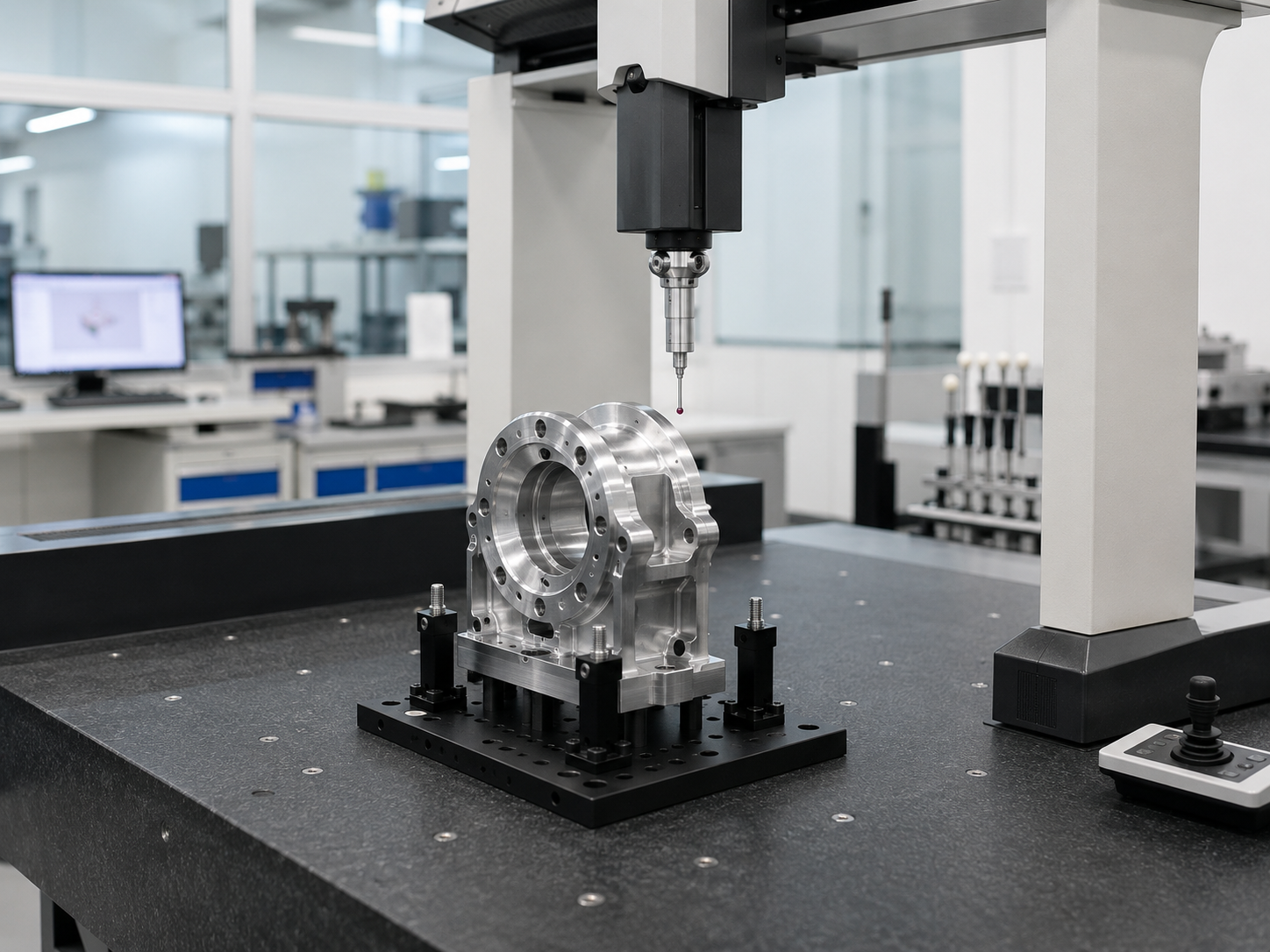

Fixturing is another consideration. The part must be held securely without being distorted. Thin-wall components and flexible parts require particular care because excessive clamping force may temporarily change their shape.
When Should Buyers Request CMM Inspection?
Not every CNC machining project requires a complete CMM inspection report. For simple parts with generous tolerances, standard dimensional inspection may be sufficient. However, CMM inspection becomes more valuable as part complexity and precision requirements increase.
Buyers should consider CMM inspection for parts with tight positional tolerances, complex datum systems, precision hole patterns, mating surfaces, bearing locations, or multiple GD&T requirements. It is also useful for parts that will be used in critical assemblies where dimensional errors could create expensive problems later.
If an inspection report is required, this should preferably be stated during the RFQ stage. The supplier can then include the correct inspection process, time, and documentation requirements in the quotation.
Inspection Should Start with the Drawing
Good inspection begins with a clear technical drawing. The drawing should identify critical dimensions, tolerances, datums, GD&T requirements, and any special inspection notes. If these requirements are unclear, even advanced inspection equipment cannot fully solve the problem.
Designers should avoid unnecessarily tight tolerances on non-critical features. This reduces machining difficulty and also reduces unnecessary inspection work. Critical characteristics should instead be clearly identified so that the manufacturer can focus inspection resources where they matter most.
When drawings, machining, and inspection are aligned from the beginning, quality control becomes much more efficient.
Conclusion
CMM inspection plays an important role in precision CNC machining. It helps verify complex dimensions, GD&T requirements, hole positions, geometric relationships, and other features that may be difficult to measure accurately with conventional tools.
Used together with first article inspection, in-process measurement, and standard measuring tools, CMM inspection helps manufacturers maintain consistency and reduce the risk of defective parts reaching the customer.
For buyers sourcing precision machined components, a well-planned inspection process is just as important as the machining process itself. Producing the part correctly is important, but being able to verify that it is correct is equally valuable.
