How to Design Parts for CNC Machining: A Practical DFM Guide
Why Design for Manufacturability Matters
Design for manufacturability, often called DFM, is an important idea in CNC machining. A part may look perfect in CAD, but if it is difficult to machine, the final result may include higher cost, longer lead time, and unnecessary production risk. Good CNC part design is not only about function. It is also about making the part practical to manufacture with stable quality and reasonable cost.
Many problems in machining do not start on the shop floor. They start in the design stage. Features such as very deep pockets, sharp internal corners, thin walls, or over-tight tolerances may all make production more difficult than necessary. When these issues are identified early, the design can be improved before quotation, sampling, and production begin.
Keep Geometry as Simple as Possible
One of the most useful DFM principles is to keep part geometry as simple as the application allows. Complex shapes are sometimes necessary, but unnecessary complexity usually increases machining time, tool changes, setup difficulty, and inspection work. Simpler parts are easier to machine, easier to inspect, and often more cost-effective.
For example, if two separate pockets can be combined into one easier shape, or if a decorative feature does not affect function, simplifying the design may create significant production benefits. This does not mean reducing quality. It means removing features that do not add real value.
A clean and efficient design also makes communication easier. Suppliers can quote faster, engineers can review drawings more clearly, and buyers can reduce the chance of hidden machining cost.
Avoid Unnecessarily Deep Pockets and Cavities

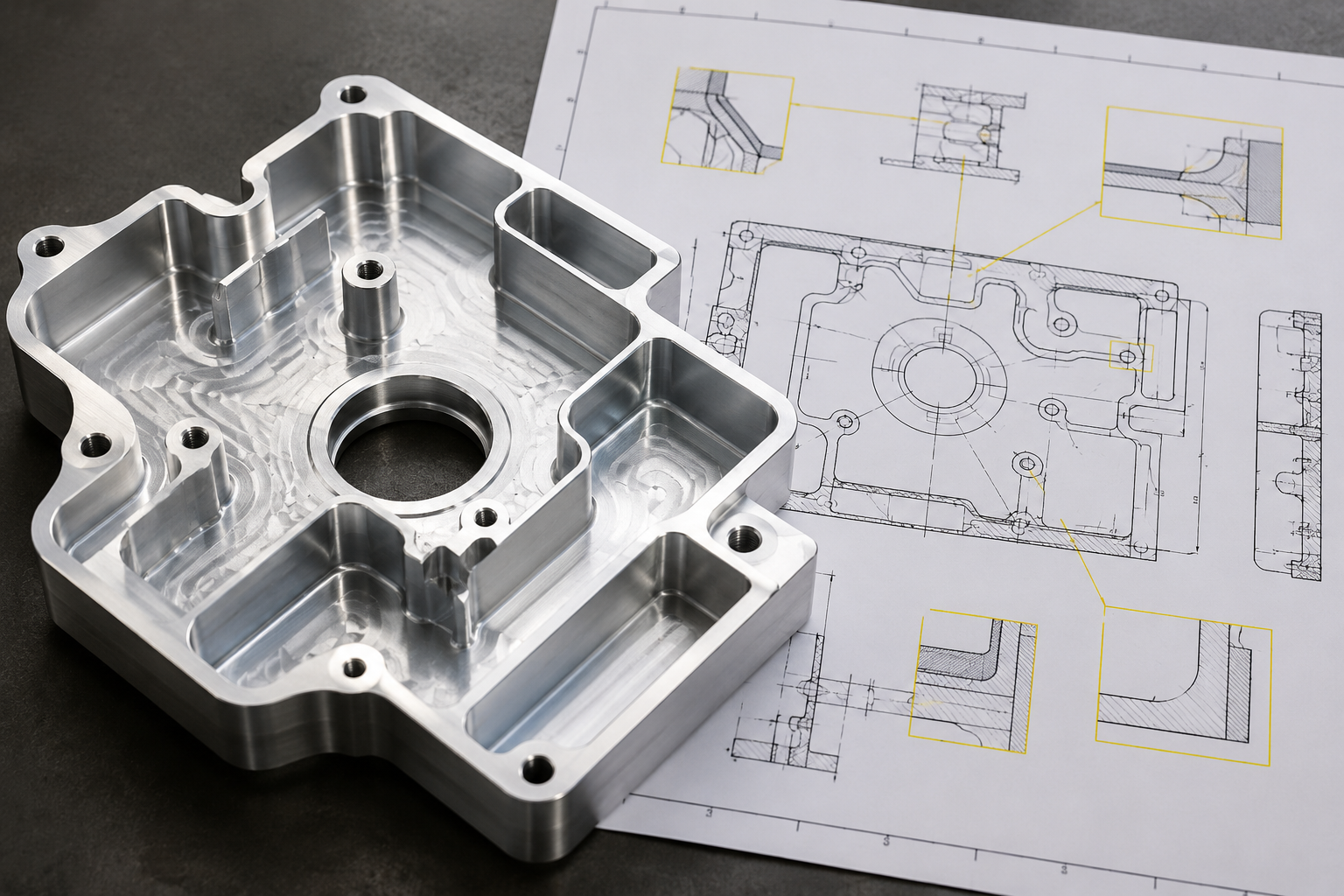

Deep pockets and deep cavities are common features in machined parts, but they are often harder to produce than buyers expect. The deeper a pocket becomes, the longer the tool needs to reach into the part. This can reduce cutting stability and increase vibration, especially when the cavity is narrow. As a result, machining becomes slower and surface quality may suffer.
If a deep cavity is truly necessary, it should be designed with realistic width-to-depth proportions. If not, consider whether the part can be split into multiple components or whether the feature can be made shallower without affecting function. Small changes in cavity design can make a big difference in machining efficiency.
This is one reason why DFM discussions with the supplier are useful. An experienced CNC supplier can often spot a difficult pocket design immediately and suggest a more practical alternative.
Use Realistic Internal Corners and Radii
A common mistake in CNC part design is drawing perfectly sharp internal corners. In actual machining, cutting tools are round, so they naturally create internal radii. If a drawing shows a sharp inside corner, the supplier may need to use a very small tool, extra machining time, or even special processes to get close to that shape. This increases cost and may still not fully match the ideal CAD model.
A better approach is to add reasonable internal corner radii from the beginning. This makes the part easier to machine and often stronger as well, because extremely sharp corners may create stress concentration in service. In many cases, adding a practical radius improves both manufacturability and durability.
Be Careful with Thin Walls
Thin walls are another feature that often creates machining difficulty. When walls become too thin, they may bend, vibrate, or deform during cutting. This can lead to poor dimensional accuracy, unstable surface finish, and even scrap. Thin sections also make clamping and handling more difficult.
In some applications, thin walls are necessary to reduce weight or fit within limited space. But when possible, designers should avoid making walls thinner than needed. Adding material in non-critical areas, improving support, or slightly changing the geometry can often improve machinability without hurting function.
Do Not Over-Specify Tolerances
Tolerance is one of the biggest cost drivers in CNC machining. Many buyers think tighter tolerance always means better quality, but that is not always true. A tolerance only creates value when it supports real product function. If every dimension is controlled too tightly, machining becomes slower, inspection becomes more demanding, and price goes up.
A good design separates critical dimensions from general dimensions. Features that affect fit, sealing, alignment, or movement may need tighter control. Other dimensions may only need standard tolerance. This approach makes the drawing clearer and helps suppliers quote more accurately.
When tolerance is defined wisely, the part becomes easier to make without reducing its functional value. This is one of the most important goals of CNC DFM.
Think About Standard Tool Sizes and Hole Features
Tooling has a strong influence on machinability, so part design should respect common tool sizes whenever possible. Features such as hole diameters, slot widths, and corner radii should be designed with practical machining tools in mind. If a feature requires a highly unusual tool size, production may become slower or more expensive.
Hole design is especially important. Blind holes that are too deep, very small diameter holes, and complex threaded features all need more attention. Designers should make sure the hole depth, diameter, and thread callout are practical and clearly defined.
Using standard threads and standard feature sizes where possible can reduce production difficulty and make sourcing easier. It can also help if spare parts or repeat orders are needed later.
Consider How the Part Will Be Clamped and Machined

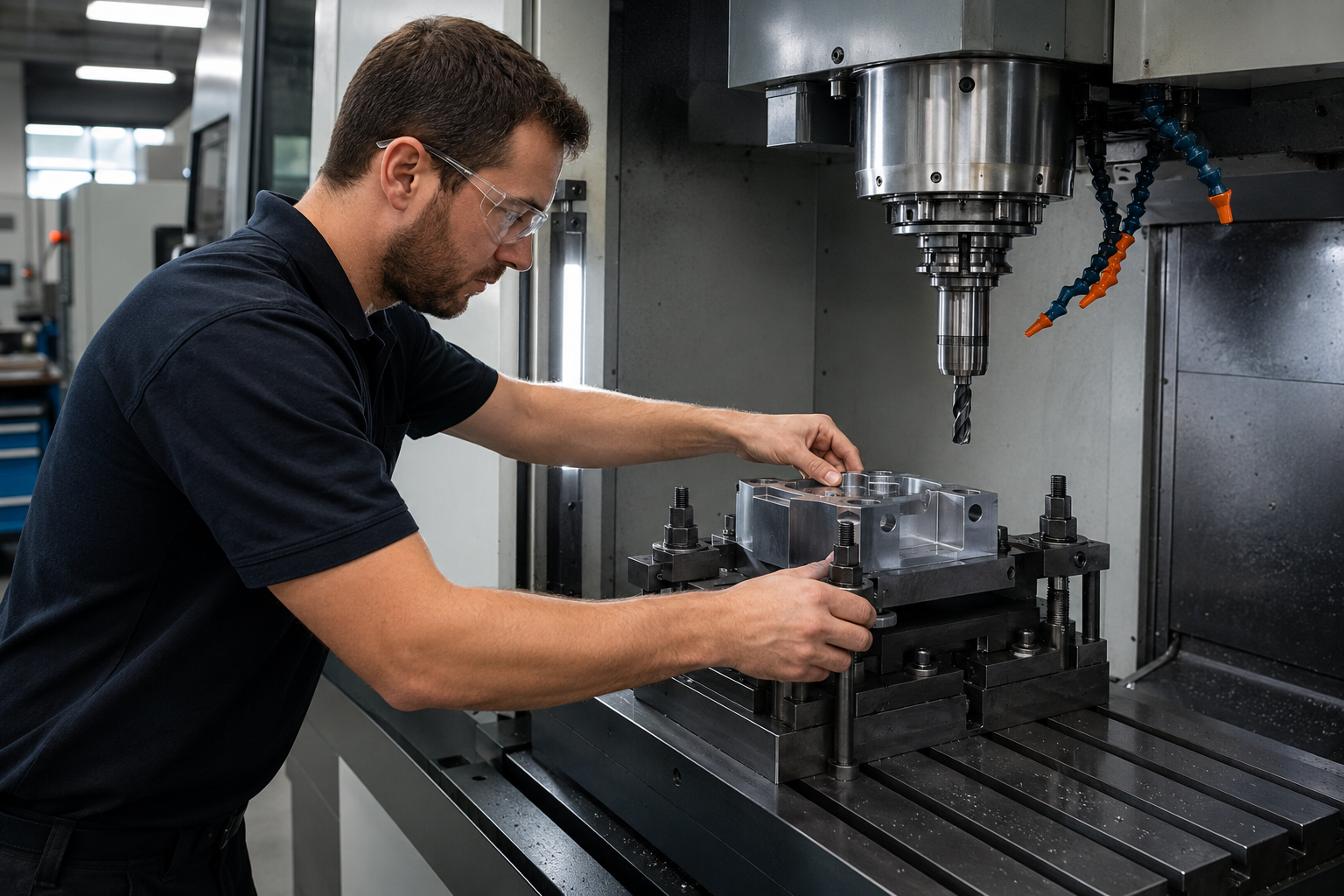

A good machined part design should also consider how the part will actually be held during machining. CNC machines do not cut parts in the air. The workpiece needs to be clamped securely and accessed by the cutting tool from suitable directions. If the design leaves very few flat surfaces or creates difficult access angles, machining may require more setups or special fixtures.
More setups usually mean more time, more cost, and more tolerance risk. If a part can be designed so that more features are machined in fewer setups, manufacturing becomes more efficient and consistency often improves.
This does not mean every part must be simple. It means designers should understand that machining direction, tool access, and clamping support are real production issues, not just workshop details.
Reduce Unnecessary Cosmetic Complexity
Some designs include decorative grooves, extra chamfers, complex external contours, or cosmetic surfaces that add little functional value. These features may look attractive in a rendering, but they can increase machining time and surface handling requirements. For branded products, appearance does matter, but it should still be balanced with production practicality.
A more practical design usually keeps decorative elements under control and puts machining effort where it matters most. Clean surfaces, consistent edges, and reasonable finishing requirements are often enough to achieve a professional result without making the part unnecessarily expensive.
For buyers, this is especially important in low volume and prototype projects, where every extra machining minute has a bigger impact on unit cost.
Use Supplier Feedback Early
One of the most effective DFM methods is simple: talk to the CNC supplier early. A good supplier can review drawings before production and point out features that may increase cost, delay delivery, or create quality risk. This kind of feedback is often most valuable before the design is frozen.
Early feedback helps avoid repeated revisions later. It also makes quotation more reliable, because the supplier can judge the real machining approach instead of only estimating from ideal CAD geometry. In many successful projects, design and manufacturing are improved together through early technical discussion.
For product teams, this can save a lot of time. For buyers, it reduces risk. For the final product, it often means better balance between quality, cost, and delivery.
Conclusion
Designing parts for CNC machining is not only about creating the desired shape. It is about creating a part that can be produced efficiently, accurately, and consistently. Simpler geometry, practical corner radii, reasonable wall thickness, clear tolerance planning, and early supplier feedback can all make a big difference.
A strong DFM approach helps reduce cost, shorten lead time, and improve product quality from the very beginning. Whether you are developing a prototype or preparing for production, designing with machining in mind is one of the smartest ways to improve results.
