Heat Treatment for CNC Machined Parts: When and Why Is It Needed?
Why Heat Treatment Matters in CNC Machining
CNC machining determines the shape, dimensions, and surface features of a component, but machining alone does not always provide the mechanical properties required for the final application. For many steel and stainless steel parts, heat treatment is used before, during, or after machining to improve hardness, strength, wear resistance, fatigue resistance, or dimensional stability.

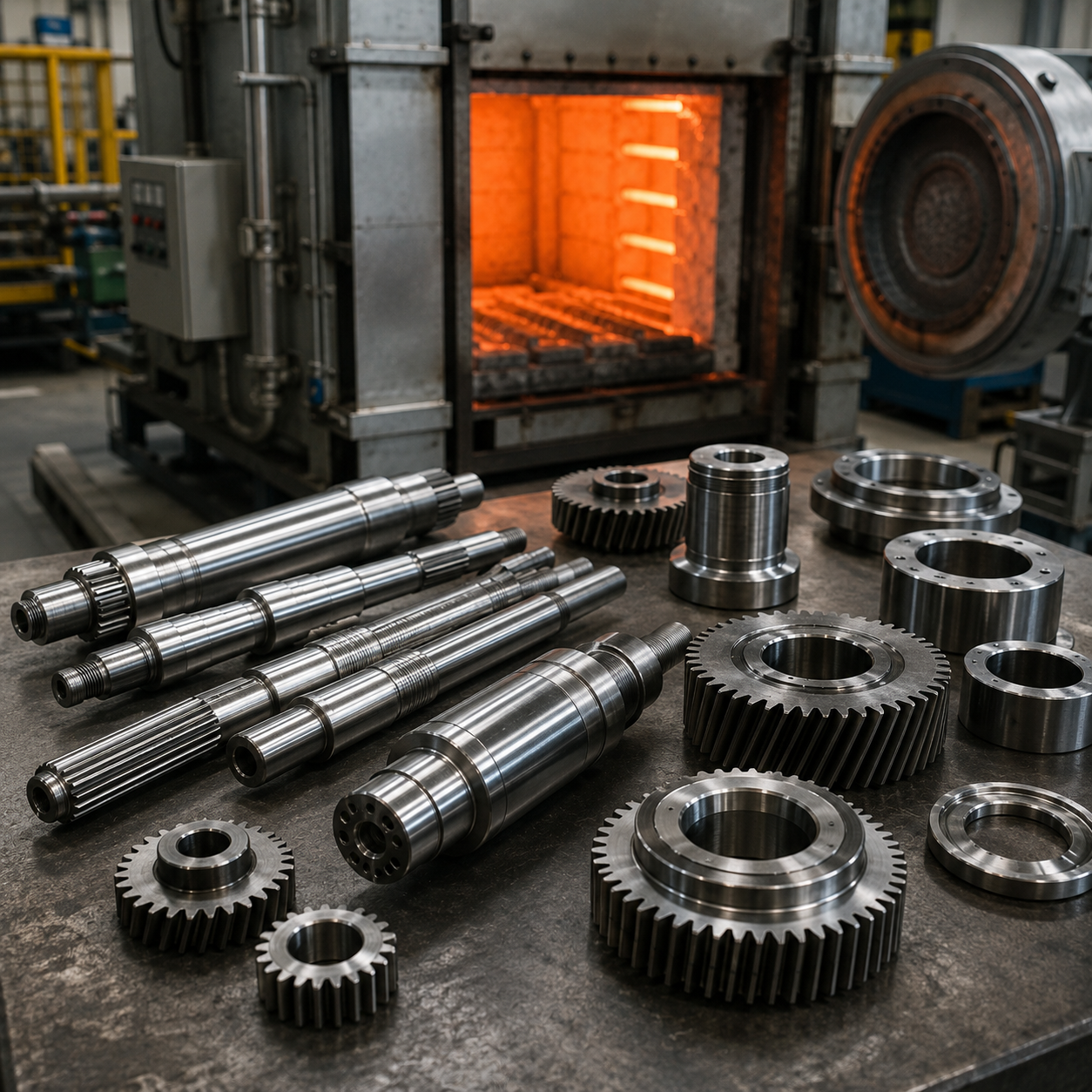

This is especially important for shafts, gears, tooling components, fixtures, machine parts, and other components that experience repeated load, friction, impact, or high contact pressure. A part may be manufactured to the correct dimensions but still wear quickly or deform in service if the material properties are not suitable.
Heat treatment therefore needs to be considered as part of the complete manufacturing process rather than as a separate finishing operation. The material grade, machining sequence, tolerance requirements, and final operating conditions all influence which treatment is appropriate.
What Is Heat Treatment?
Heat treatment is a controlled process that heats and cools metal to change its internal structure and mechanical properties. Different combinations of temperature, holding time, cooling rate, and atmosphere can produce different results.
Unlike coatings or plating, heat treatment does not simply add a layer to the outside of the part. Instead, it changes the properties of the material itself. Depending on the process, the goal may be to increase hardness, improve toughness, relieve internal stress, enhance wear resistance, or achieve a more stable structure.
The correct process depends heavily on material. Carbon steel, alloy steel, tool steel, and precipitation-hardening stainless steel all respond differently to heat treatment. Aluminum alloys may also receive thermal treatments, although their heat treatment mechanisms are different from those used for steel.
For this reason, the drawing should clearly specify the material grade and required condition whenever heat treatment is critical to the product.
Hardening and Tempering
Hardening is commonly used for steel parts that need greater strength and wear resistance. During hardening, the steel is heated to a controlled temperature and then rapidly cooled, often through oil, gas, or another suitable quenching method.
The result can be a significant increase in hardness, but freshly hardened steel may also become too brittle for practical use. Tempering is therefore normally performed afterward. During tempering, the hardened part is reheated to a lower temperature to reduce brittleness while maintaining useful hardness and strength.
The balance between hardness and toughness is important. A cutting tool may require very high hardness, while a mechanical shaft may need slightly lower hardness but greater resistance to impact and fatigue.
Specifying only “hardened” on a drawing may not provide enough information. When possible, engineers should specify the required material condition, hardness range, and any important treatment standard.

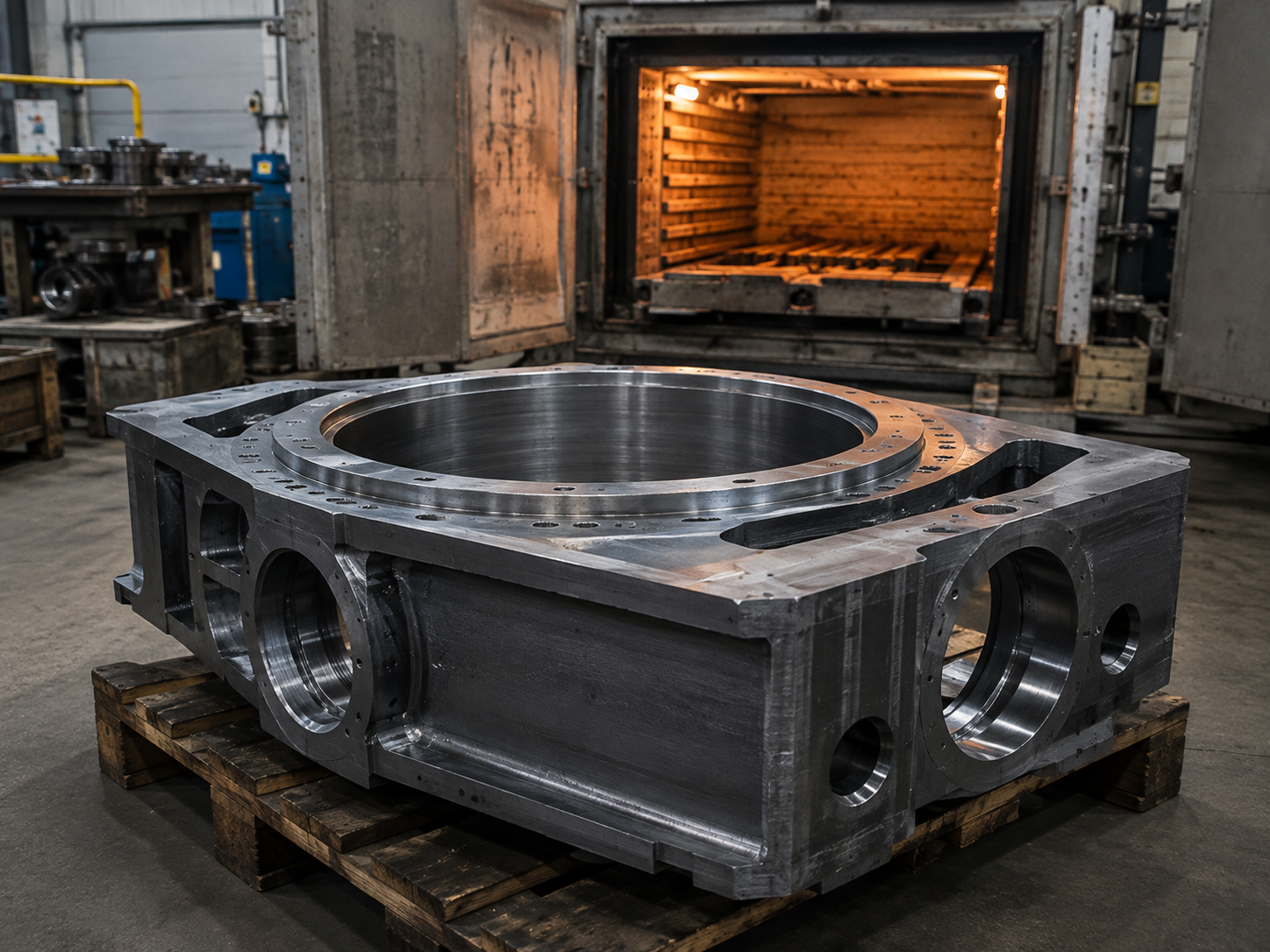

Stress Relieving for Dimensional Stability
Machining removes material from a workpiece and can release or introduce internal stress. This is especially important for large parts, thin-wall components, welded structures, and parts that require significant material removal.
If internal stress remains in the material, the component may distort during later machining or after material is removed from one side. Even a small amount of movement can cause problems when the drawing contains tight flatness, parallelism, or positional tolerances.
Stress relieving is a heat treatment process designed to reduce these internal stresses without significantly changing the overall mechanical properties of the material. It can be performed between rough machining and finish machining when dimensional stability is particularly important.
A typical manufacturing strategy may involve rough machining first, leaving finishing allowance, performing stress relief, and then completing the critical dimensions in a final machining operation. This helps reduce the risk of distortion affecting the finished part.
Nitriding for Surface Hardness and Wear Resistance
Nitriding is widely used when a component needs a hard, wear-resistant surface while maintaining a tougher core. Nitrogen is introduced into the surface of suitable steel at elevated temperature, producing a hardened surface layer.
Compared with some conventional hardening methods, nitriding can be attractive for precision components because it is generally carried out at a relatively lower temperature and can offer good dimensional stability when the material and process are properly selected.
Nitrided parts are commonly found in shafts, gears, spindles, dies, sliding components, and other mechanical parts where surface wear is a major concern. The process can also improve resistance to fatigue and surface damage.
However, nitriding should be planned before production. The material must be compatible with the process, and the required case depth, hardness, and areas to be treated should be clearly defined. Certain surfaces may also need to be protected from treatment.
Carburizing for a Hard Surface and Tough Core
Carburizing is another surface-hardening method commonly used for steel components. During carburizing, carbon is introduced into the surface of suitable low-carbon steel at high temperature. The component is then hardened so that the outer layer becomes wear resistant while the core remains relatively tough.
This combination is particularly useful for components exposed to repeated contact and load. Gears, transmission parts, pins, and some shafts are common examples.
The depth of the hardened layer is an important design consideration. A shallow hardened layer may be sufficient for light wear, while heavily loaded components may need a deeper case.
Because carburizing involves relatively high temperatures and subsequent hardening, dimensional distortion must also be considered. Critical parts may require grinding or another finishing operation after treatment to restore final dimensions and surface quality.
Heat Treatment of 17-4PH Stainless Steel
17-4PH is a precipitation-hardening stainless steel commonly selected when a component needs a combination of high strength and corrosion resistance. Unlike conventional carbon steel hardening, 17-4PH can be supplied or treated to specific conditions such as H900, H1025, H1150, and others.
These conditions provide different combinations of strength, hardness, toughness, and dimensional stability. H900, for example, is often selected when relatively high strength and hardness are required, while higher aging temperatures can provide increased toughness with lower strength.
For CNC machining projects, it is important to confirm whether the material should be purchased in the final heat-treated condition or machined first and treated afterward. The choice can affect machinability, dimensional control, tooling, and production cost.
The required condition should always be stated clearly on the drawing or purchase specification rather than simply writing 17-4PH.
Should Parts Be Machined Before or After Heat Treatment?
One of the most important manufacturing decisions is determining when heat treatment should take place in the process.
Machining before heat treatment is often easier because the material is softer and creates less tool wear. It allows most of the material to be removed efficiently. However, heat treatment may cause slight dimensional changes or distortion afterward.
Machining after heat treatment can provide better control of final dimensions because the material has already reached its final condition. The disadvantage is that hardened material can be much more difficult to cut and may require special cutting tools, grinding, EDM, or slower machining parameters.
For many precision parts, the best approach combines both methods. The component is rough machined first, then heat treated, and finally completed through CNC milling, finish machining, or grinding on the critical surfaces.
The correct sequence depends on material hardness, geometry, tolerances, and the risk of distortion.

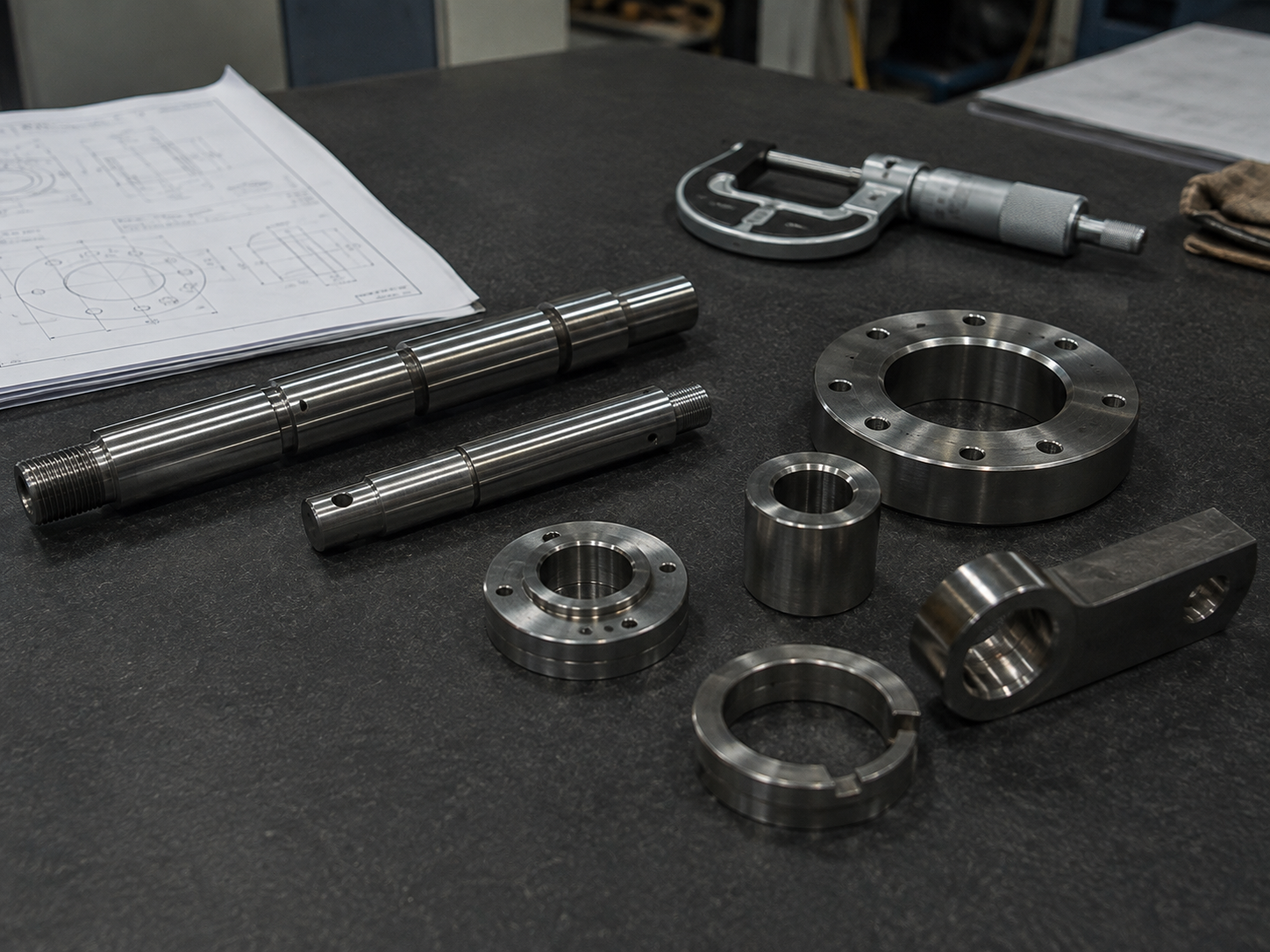

How Heat Treatment Can Affect Tolerance
Heat treatment involves temperature changes, and metal expands and contracts as it heats and cools. Phase transformations inside the material can also cause dimensional changes.
For simple parts with generous tolerances, these changes may not create a significant problem. For precision components, however, even small distortion can affect hole position, flatness, roundness, straightness, or fit.
Long shafts may bend slightly. Thin sections may warp. Large flat parts may lose flatness. Holes and precision diameters may change enough to require additional finishing.
This is why manufacturers often leave machining allowance on critical surfaces before heat treatment. Grinding, hard turning, or finish machining can then bring these features back to their final dimensions afterward.
Engineers should therefore consider both the required material properties and the dimensional requirements when deciding the process sequence.

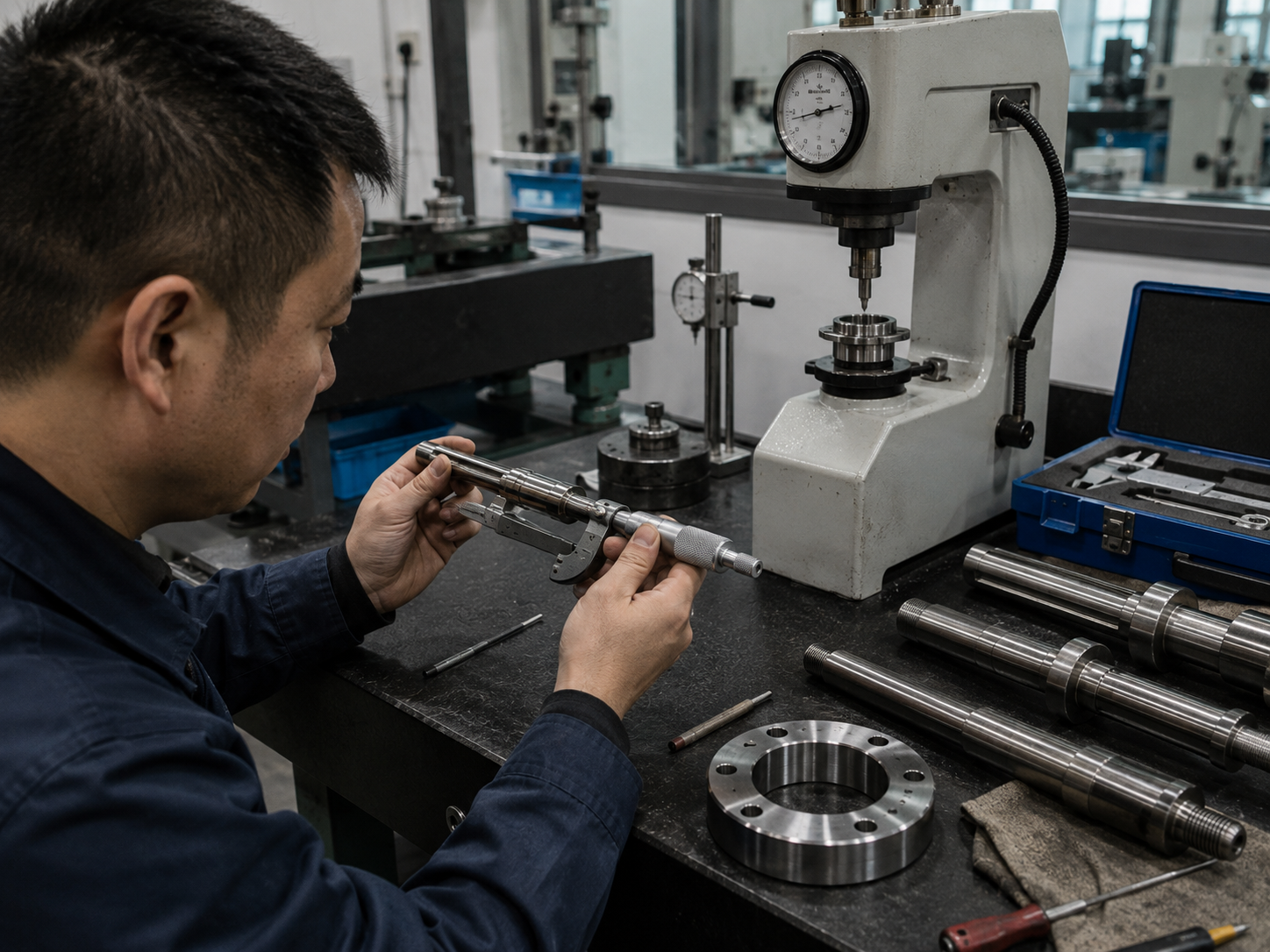

Inspection After Heat Treatment
Heat treatment quality cannot be judged by appearance alone. Depending on the drawing requirements, manufacturers may need to check hardness, dimensional changes, surface condition, or case depth.
Hardness testing is commonly used to confirm whether the material reached the required condition. Precision dimensions should also be rechecked after heat treatment, especially when tight tolerances are involved.
For parts that undergo finish machining after treatment, final dimensional inspection should normally take place after all critical manufacturing processes are complete.
Material certificates and heat treatment certificates may also be required for certain industrial, aerospace, medical, or other controlled applications. If documentation is required, buyers should mention it during the RFQ stage so that the supplier can plan the process correctly.
How Heat Treatment Affects Cost and Lead Time
Adding heat treatment introduces another manufacturing stage, so it naturally affects production cost and lead time. The exact impact depends on the treatment type, material, part size, batch quantity, required certification, and whether additional machining is needed afterward.
Simple stress relieving may have a relatively small impact, while processes involving hardening, tempering, nitriding, carburizing, or vacuum treatment may require more preparation and quality control.
Small quantities can sometimes have higher unit treatment costs because furnace loading and process setup must still be completed regardless of batch size.
Post-treatment grinding or machining also adds cost. However, eliminating a necessary heat treatment simply to reduce price can create much greater costs later if the part wears prematurely or fails during service.
The correct question is therefore not whether heat treatment makes a part more expensive, but whether the operating conditions require the additional material performance.
Common Mistakes When Specifying Heat Treatment
One common mistake is selecting a heat treatment without confirming whether the material is suitable. Different steel grades respond differently, and a process that works well for one alloy may not provide the same result on another.
Another mistake is specifying very high hardness simply because it appears stronger. Excessive hardness may reduce toughness and increase the risk of cracking or brittle failure.
Buyers should also avoid leaving treatment requirements unclear. Instructions such as “heat treated” are usually not detailed enough for precision manufacturing. Material condition, hardness range, treatment type, case depth, and protected areas should be specified when they are important.
Another important issue is tolerance planning. If critical dimensions are finished before a treatment that can create distortion, the part may no longer meet the drawing after treatment.
Early communication between the designer, machining supplier, and heat treatment provider helps prevent these problems.
When Is Heat Treatment Really Necessary?
Not every CNC machined metal part requires heat treatment. Aluminum housings, cosmetic covers, lightly loaded brackets, and many general-purpose components may perform perfectly without it.
Heat treatment becomes more important when a component must withstand high load, repeated wear, impact, friction, or long-term mechanical stress. It is also useful when dimensional stability or specific material properties are required.
The decision should therefore begin with the application. Engineers should consider load, motion, wear, environment, expected service life, and possible failure modes before selecting the material condition.
When the correct material and heat treatment are combined with a suitable CNC machining process, manufacturers can produce components that meet both dimensional and mechanical performance requirements.
Conclusion
Heat treatment is an important part of precision manufacturing for many steel and stainless steel CNC components. Processes such as hardening and tempering, stress relieving, nitriding, carburizing, and precipitation hardening can significantly change the final performance of a part.
However, heat treatment must be planned together with machining. Treatment temperature, material properties, dimensional distortion, tolerance requirements, and final inspection all influence the manufacturing sequence.
The best result comes from selecting the treatment according to the real application rather than simply requesting the highest possible hardness. With proper process planning, CNC machining and heat treatment can work together to provide accurate, durable, and reliable components.
