Technical Analysis of Blackening Treatment and Anodizing

With growing demand for high‑end equipment, automation machinery, medical and aerospace machined components, metal surface treatment has become an essential procedure for precision CNC machining. Black oxide finishing and anodizing are two mainstream black‑finish solutions. Misunderstanding between these two processes frequently appears in engineering drawings and purchasing documents, resulting in performance failure, assembly malfunction and unnecessary cost loss. This paper illustrates reaction mechanism, film‑layer parameters and material compatibility of black oxide and anodizing. It compares corrosion resistance, wear resistance, dimensional variation and production cost, summarizes common selection mistakes, and offers practical suggestions for machining engineers and purchasers to select proper surface‑treatment for precision‑machined parts.

Process Essence: Chemical Conversion vs Electrochemical Film‑Growing

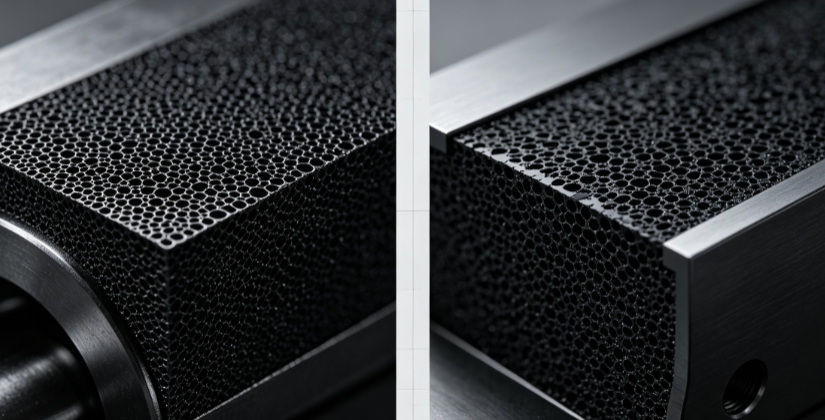

Black oxide finishing, also known as blackening, is a chemical conversion coating mainly applied on ferrous metals such as carbon steel and alloy steel. Workpieces are immersed in hot alkaline oxidation solution. Iron on steel surface reacts chemically and forms thin magnetite (Fe₃O₄) film with thickness ranging from 0.5 μm to 2 μm. This film is converted directly from base material rather than an extra deposited coating. The black‑oxide layer is porous by nature. Oil or wax sealing post‑treatment is mandatory to achieve basic anti‑rust performance; bare black‑oxide film provides very limited corrosion protection.
Anodizing (often shortened as oxidation in workshop communication) is an electrochemical oxidation process exclusively for aluminum alloys. Steel cannot be anodized. Parts work as anode under electric current inside electrolyte tank. Hard aluminum‑oxide film grows from aluminum substrate, thickness varies from several micrometers to over 20 micrometers. The integrated oxide layer can be dyed black and then sealed to achieve excellent corrosion and wear resistance.
Industry Reminder: The ambiguous drawing note “oxidation blackening” shall be avoided. Steel parts adopt black oxide finishing,aluminum parts adopt black‑dyed anodizing. These two processes cannot replace each other.

Substrate Compatibility and Key Physical Parameters

Substrate is the primary dividing line between the two technologies. Black‑oxide works for carbon steel, alloy steel and cast iron, not for aluminum alloy. Anodizing fits aluminum alloys only and does not work for ferrous steel materials.
Film thickness directly influences tolerance performance for precision‑machined components:


Black oxide: 0.5‑2 μm thick. Conversion occurs inward from surface. Dimensional change is negligible. It suits high‑precision parts with tolerance ±0.01~±0.02 mm, threaded holes and mating sleeves without assembly interference, which is its biggest advantage for precision steel components.


Anodizing: oxide film grows bidirectionally, half inward consuming base aluminum and half outward. Total thickness ranges 5‑25 μm, creating obvious dimensional offset. Designers must reserve extra machining allowance for critical aluminum mating surfaces before anodizing, otherwise dimension out‑of‑tolerance and assembly interference will occur.

Corrosion performance: Bare black‑oxide film offers poor rust resistance and relies heavily on oil sealing. It applies to dry indoor conditions with limited salt‑spray performance and is not suitable for outdoor or humid‑salt environments. Sealed anodizing delivers outstanding salt‑spray resistance, fit for outdoor, marine and high‑humidity environments, widely used in aerospace and medical aluminum components.
Wear resistance: Black‑oxide mainly serves for lubricant retention and friction reduction with low intrinsic hardness. Anodized film features high hardness and scratch resistance for aluminum parts under frequent friction. For appearance, black‑oxide delivers uniform matte black; anodizing supports matte‑black or glossy‑black customizable finishes.

Cost, Production Efficiency and Typical Industrial Applications

For cost, black‑oxide requires simple chemical bath without power supply, showing prominent cost advantage for mass‑volume production. Anodizing consumes electrolytic equipment, dyes and sealing chemicals with longer workflow, leading to obviously higher unit cost under same batch size.
Typical application scenarios:

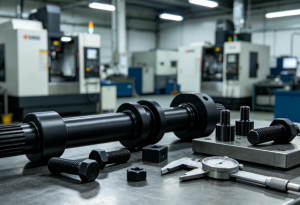

Black‑oxide finishing: Precision steel shafts, fasteners, tooling fixtures, machine‑tool internal components, indoor mechanical steel parts requiring zero dimensional shift and anti‑glare matte surface. Not allowed for outdoor or heavily corrosive environment.

Anodizing: Aluminum housings for automation equipment, aerospace aluminum parts, medical‑device aluminum structures, instrument shells and other precision aluminum components requiring wear‑resistance, corrosion‑resistance and good appearance.

Common Selection Mistakes & Risk Warnings in Precision Machining

  1. Mismatch of material and process: Request anodizing for steel parts or black‑oxide for aluminum parts, causing direct scrap.
  2. Skipping sealing procedure for black‑oxide: Parts get rusted quickly without oil‑wax post‑treatment.
  3. Missing anodizing allowance on aluminum components, resulting in dimension out‑of‑tolerance after surface finishing.
  4. Improper working‑condition judgment: Using black‑oxide parts under outdoor high‑humidity conditions and triggering early corrosion failure.
Engineers shall specify substrate plus complete surface‑treatment description on drawings: mark “black oxide with oil sealing” for steel parts; mark “black anodizing plus sealing” for aluminum parts to eliminate technical ambiguity.

Conclusion

Though both black‑oxide finishing and anodizing produce black‑colored metal surfaces, they belong to totally independent surface‑treatment systems and cannot substitute for one another. Black‑oxide is designed for ferrous steel, brings nearly zero dimensional change and low cost, yet its anti‑corrosion performance depends on oil sealing and is mainly used for indoor precision steel components. Anodizing applies only to aluminum alloy, delivers thick hard film with superior wear‑resistance and corrosion‑resistance but introduces dimensional growth and higher production cost.
For CNC precision‑machining projects, surface treatment is not a secondary post‑processing step. Designers shall take substrate material, tolerance requirement, working environment and overall cost into full consideration at design phase. Clarifying definition between black‑oxide and anodizing in drawing specification and technical communication helps reduce scrap and rework, and guarantees reliability and delivery quality of precision mechanical components.

Writer: NIco Lee

Date: August 20,2026
