Why Robot Joint Components Matter in Modern Robotics
Industrial robots rely on precisely manufactured mechanical components to achieve smooth movement, accurate positioning, and repeatable performance. Among these components, robot joints play a particularly important role because they connect different sections of a robotic arm and support controlled movement.
A robot joint housing must accommodate mounting interfaces and internal mechanical elements while maintaining the dimensional relationships required for assembly. If the mounting holes are misplaced or the housing geometry deviates from the engineering drawing, the result may be poor alignment, increased vibration, or difficulties during assembly.
For collaborative robots and compact industrial robotic arms, weight is also an important design consideration. Lightweight components can help reduce the load that the robot's drive system must move, provided that the required strength and rigidity are maintained.
K-TEK manufactures Aluminum CNC Machined Robot Joint Components using 6061 or 7075 aluminum alloy and five-axis CNC machining. The components are designed for collaborative robots and small industrial robotic arms, with customization available according to drawings or samples.
K-Tek
Key Machining Challenges in Robot Joint Housings
Robot joint housings often combine curved surfaces, mounting holes, pockets, and several reference faces in a compact structure. Each feature may be straightforward to machine individually, but maintaining their relative positions is more challenging.
Three factors deserve particular attention.
Mounting-hole accuracy: Hole positions must match the mating components to prevent assembly problems.
Dimensional consistency: Critical surfaces and bores must follow the drawing requirements so that connected components fit correctly.
Structural rigidity: Material must be removed carefully to achieve the intended weight without compromising the housing's required strength.
A sound manufacturing plan begins with drawing review, identification of critical dimensions, and selection of suitable machining datums. This helps the engineering team determine which features should be machined together and which require separate operations.

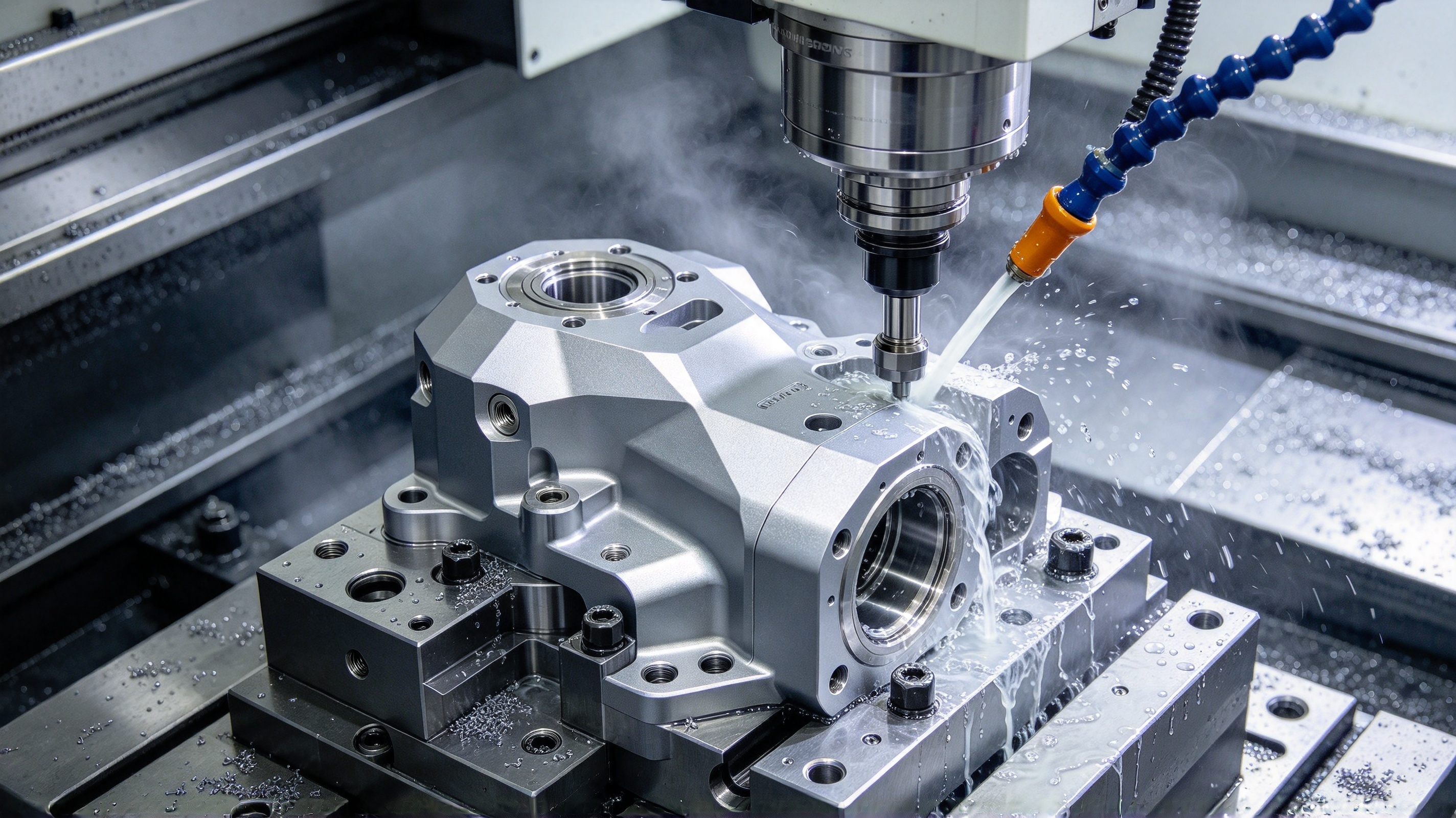

Why 5-Axis CNC Machining Is Useful for Robotic Components
Robot joint housings may have features on several faces, angled surfaces, or curved contours that are difficult to access using conventional three-axis machining alone.
5 Axis CNC Machining Services allow a cutting tool to approach the workpiece from multiple directions. For suitable component designs, this can reduce the number of setups and repeated repositioning operations.
The benefits may include:
-
Better positional consistency between machined features
-
More efficient machining of angled and curved surfaces
-
Fewer workpiece repositioning operations
-
Greater flexibility when producing complex geometries
The exact benefit depends on the part design, fixture strategy, machine configuration, and required tolerances. Five-axis machining is not automatically necessary for every robot joint, but it can be valuable when the geometry and feature relationships justify it.
Choosing Aluminum for Robot Joint Components
Aluminum alloys are commonly used in robotic structures because they combine relatively low weight with good machinability. The appropriate alloy depends on the required strength, stiffness, thermal behavior, corrosion resistance, and operating conditions.
For example, 6061 aluminum is widely used for machined structural components, while 7075 aluminum may be considered when higher strength is required. The final choice should be based on the actual engineering requirements rather than weight alone.
CNC milling is well suited to creating mounting holes, pockets, slots, and shaped surfaces in aluminum components. Where a design includes features on multiple sides, multi-axis machining may help reduce repeated setups.
K-TEK also provides CNC Milling for customized components made to customer drawings and specifications.
Surface Treatment and Assembly Requirements
After machining, a robot joint housing may require deburring and surface treatment. Anodizing can improve the surface's corrosion resistance and appearance, while hard anodizing may be selected when increased surface hardness is needed.
However, surface treatment must be considered during the design and manufacturing stages. Coating thickness can affect critical dimensions, particularly in bores, mating interfaces, and precision mounting features. These areas may require masking, allowance planning, or post-treatment verification.
The finishing specification should therefore identify the required treatment, appearance, and any surfaces that must remain within tightly controlled dimensional limits.
For robot joint components, successful production means more than achieving the correct shape. The finished part must also fit its mating components and meet the functional requirements of the robotic assembly.

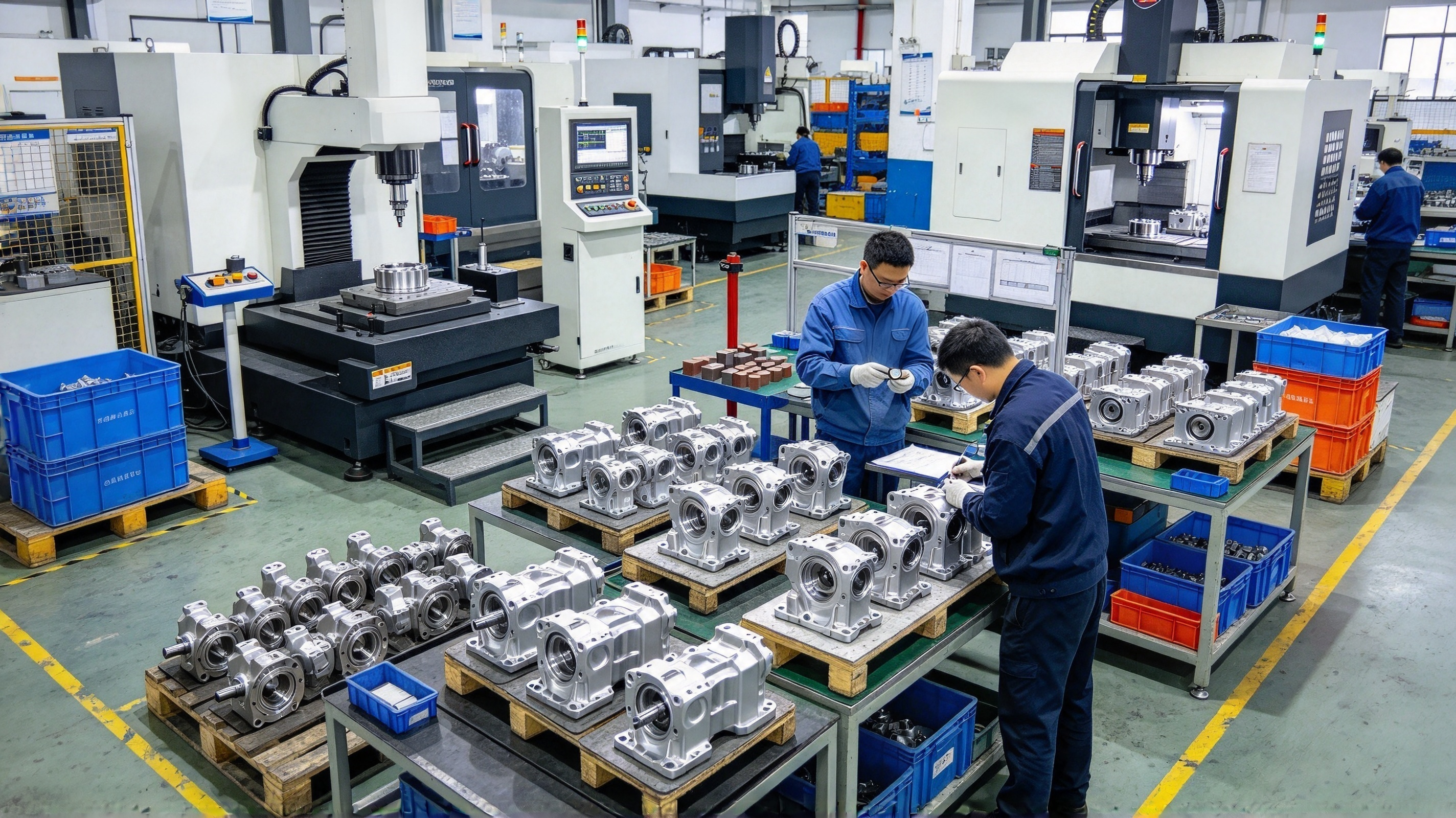

Quality Inspection for Consistent Robot Joint Performance

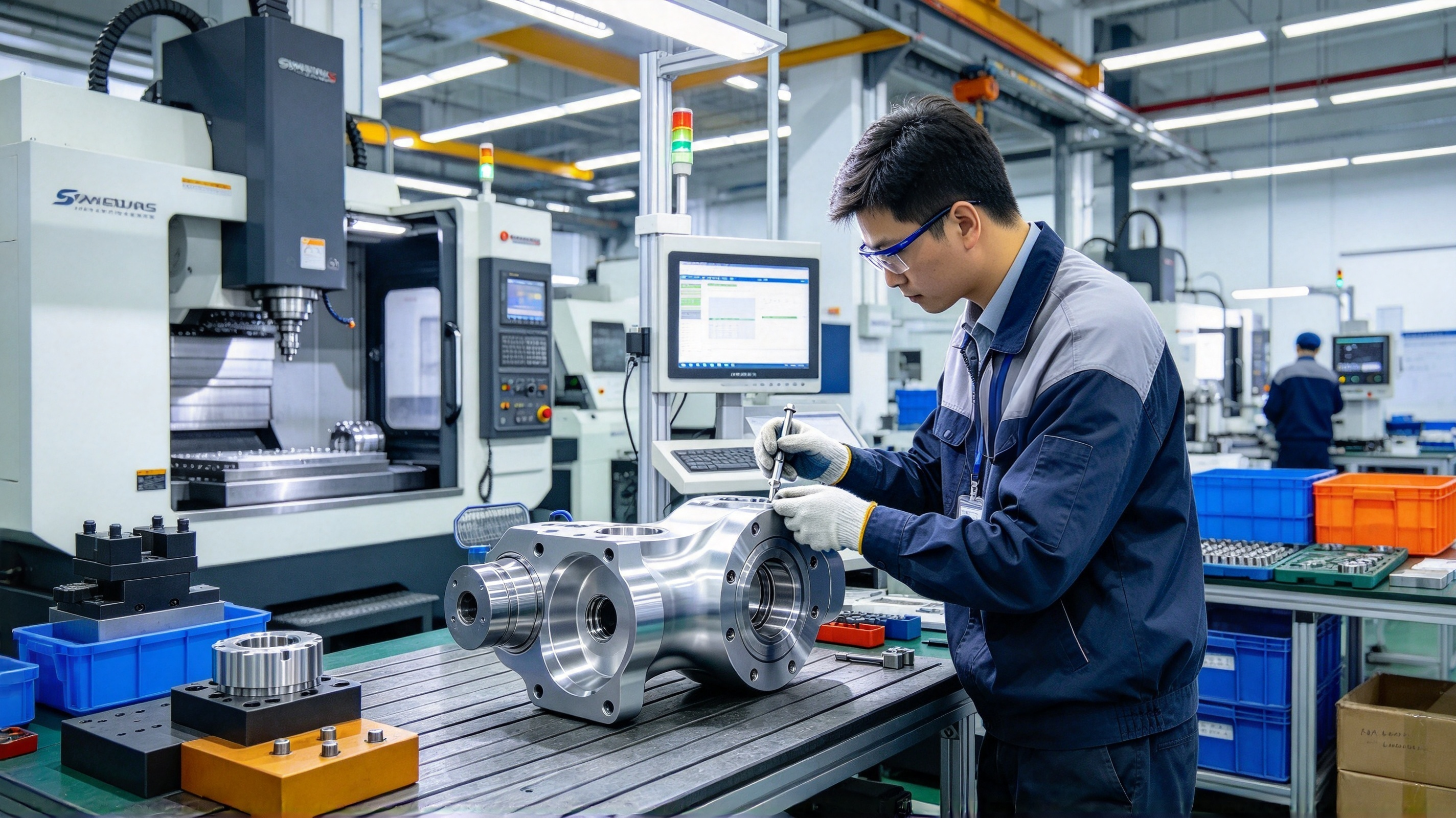

Inspection is essential for confirming that machined components conform to engineering drawings. Depending on the part, important characteristics may include hole positions, bore diameters, flatness, overall dimensions, and relationships between reference surfaces.
For complex components, coordinate measuring machines (CMMs) can help verify three-dimensional features. Inspection methods should be selected according to the drawing, tolerance requirements, and intended application.
A clear inspection plan also helps identify critical features before production begins, rather than discovering assembly issues after the parts have been delivered.
Related Insights on CNC Machining for Robotics
Robot joint housings are only one example of precision components used in automated equipment. Gearbox components also rely on accurate mounting features and controlled relationships between mechanical elements.
For a related discussion of these requirements, read CNC Machined Robot Gearbox Components for Precision Robotics. That article explores the machining challenges associated with robotic transmission components and explains where milling and five-axis machining can be useful.

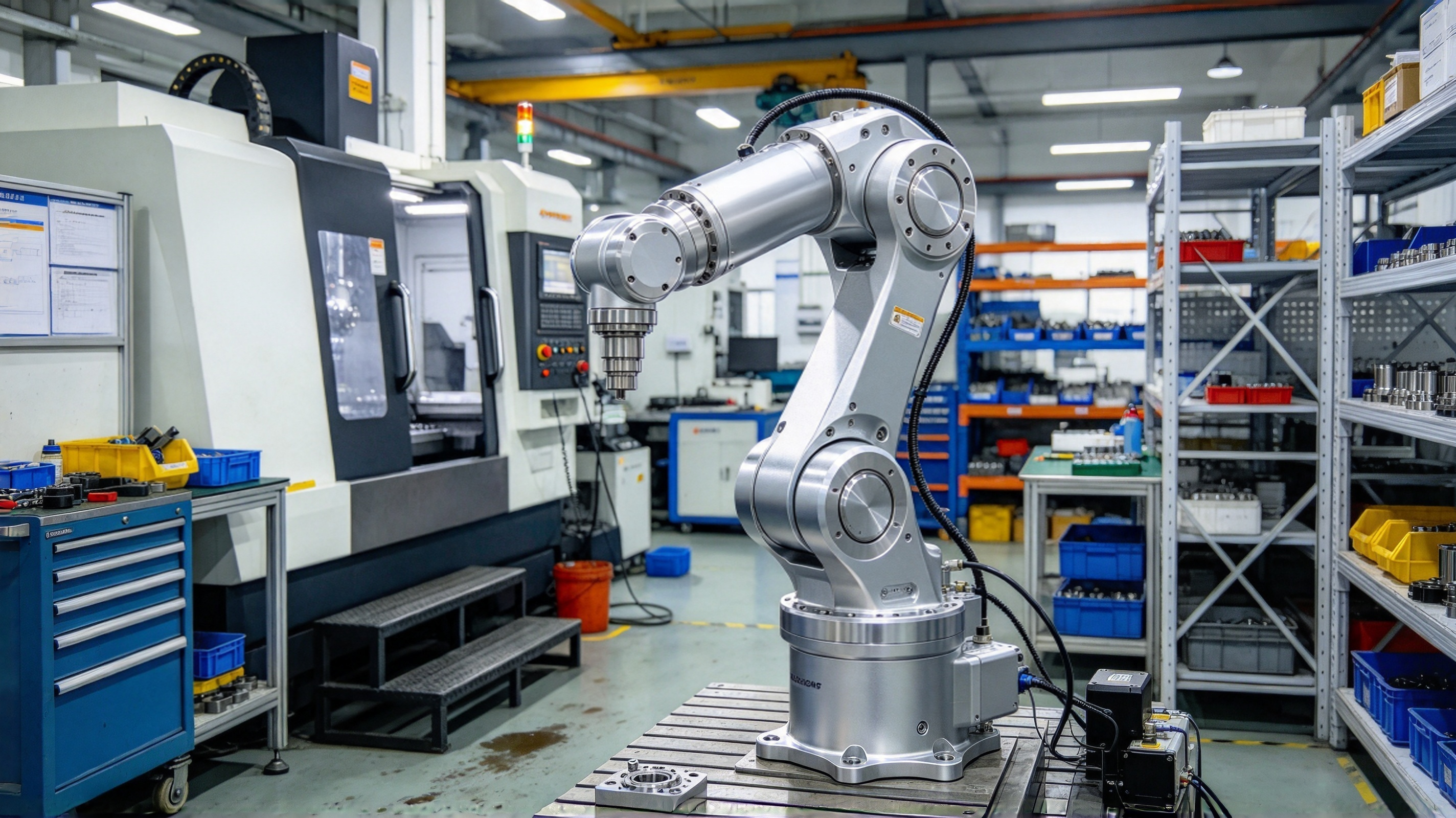

Precision Machining for the Next Generation of Robotics
As robotic systems become more compact and capable, their mechanical components must balance dimensional accuracy, structural rigidity, weight, and manufacturability.
Choosing suitable materials, planning machining datums, selecting the right CNC process, and verifying critical dimensions all contribute to dependable component quality.
K-TEK supports customized CNC machining for robotic and industrial applications, manufacturing components according to customer drawings, samples, and technical requirements. For OEMs developing robotic arms and automation equipment, early communication about geometry, tolerances, material, and finishing requirements can help establish a more effective production plan.
