Comparison Analysis of 3-Axis, 4-Axis, and 5-Axis CNC Machining Processes

With the upgrading of high‑end equipment manufacturing, multi‑axis CNC machining has become a core method for producing precision components. 3‑axis, 4‑axis and 5‑axis machine tools are not simply iterative upgrades. Significant differences exist in motion logic, clamping strategy, programming complexity, fixture design, production cost and finished‑part accuracy. In practical production, many manufacturers blindly pursue higher‑axis equipment while ignoring part structure, batch size and tolerance requirements, which leads to unnecessary cost waste. On the contrary, applying low‑axis machines to complex workpieces results in high reject rate caused by repeated clamping errors. Starting from process principles, this paper analyzes strengths and limitations of the three solutions from dimensions including fixture, programming, cost and reject risk. Combined with practical cases in aerospace, medical devices, hydraulic valves and automation equipment, it sorts out process‑selection logic. Manufacturers can balance accuracy, efficiency and production cost to achieve reasonable manufacturing solutions.

Role of Multi‑axis Machining in Precision Manufacturing

Modern precision mechanical machining is developing toward complex curved surfaces, thin‑wall special‑shaped structures, tight positional tolerance and multi‑feature composite parts. The number of CNC axes largely determines the manufacturability of components. Two common misunderstandings prevail in industry: first, more axes guarantee higher accuracy; second, complex parts can only be produced by 5‑axis machines.
In real‑world production, 3‑axis, 4‑axis and 5‑axis machines fit different scenarios. Blind adoption of high‑axis equipment raises cost and wastes capacity for simple parts. While applying 3‑axis machines to complex multi‑sided workpieces requires repeated re‑clamping, bringing accumulated clamping errors, datum offset, higher rework rate and longer lead‑time. Distinguishing process boundaries and comprehensively evaluating drawing tolerance, part geometry, batch quantity and budget is critical for precision machining enterprises to control quality, reject rate and delivery schedule.

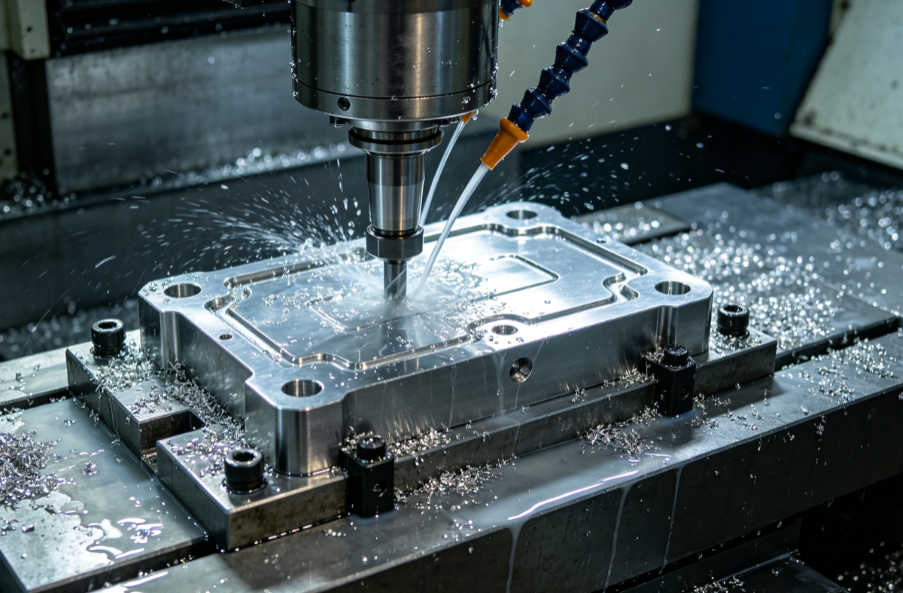

3‑Axis CNC Machining: General‑Purpose Basic Solution

A 3‑axis machine tool consists of X, Y, Z linear axes. The workpiece remains fixed during machining, while cutting tool moves along three directions to realize 2D and 2.5D feature processing. It serves as fundamental configuration for most machining factories.

Advantages: Simple programming with low CAM threshold and short setup cycle, operable for ordinary process engineers; lowest cost for machine investment, maintenance and hourly rate, low investment on cutting tools and fixtures, suitable for mass‑production standard parts; high stability and good consistency for planes, cavities and regular hole systems, low cost for small‑batch prototyping.

Disadvantages: Multiple manual re‑clamping is required for multi‑sided features, bringing accumulated positional errors. It cannot machine spatial inclined surfaces or complex free‑form surfaces. Long tools must be adopted for deep cavities, which reduces tool rigidity, triggers vibration and deteriorates surface finish. Repeated clamping increases working hours and reject risks caused by manual operation.

Typical applications: Flat brackets, general housings, cover plates, simple mold cavities, standard automation components, ordinary fixing plates.

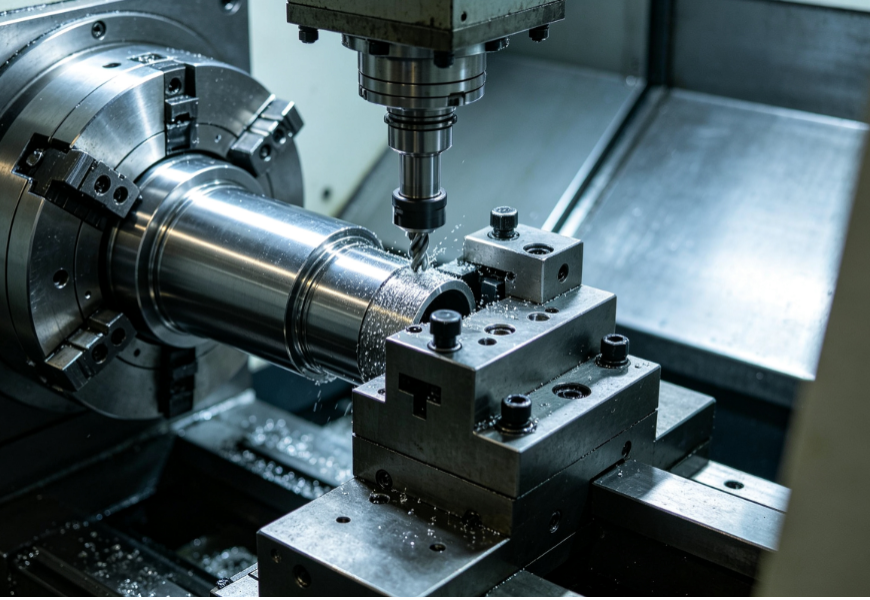

4‑Axis CNC Machining: Efficiency Improvement with Rotary Axis

Based on 3‑axis structure, 4‑axis equipment adds one rotary axis (A‑axis or C‑axis). Workpieces rotate around designated axis, so cylindrical sides, radial holes and spiral grooves can be finished without full re‑clamping. It includes indexing 4‑axis and 4‑axis simultaneous machining modes. Indexing 4‑axis only rotates at fixed angles, while 4‑axis simultaneous machining enables synchronized movement between rotary and linear axes.

Advantages: Less clamping times compared with 3‑axis setup, reducing tolerance accumulation caused by repeated positioning. It handles rotary bodies, circumferential holes and cylindrical cam parts. Programming complexity remains moderate, with hourly cost slightly higher than 3‑axis. Fixture design is relatively simple, achieving balance between performance and expense. Efficiency improves significantly for parts with circumferentially distributed holes and spiral grooves.

Disadvantages: Only one rotary axis is available. Tool orientation cannot tilt freely, limiting capacity for complex free‑form surfaces and multi‑angle deep cavities. Rotary axes need regular calibration due to positioning clearance, otherwise angular deviation occurs. Performance is still insufficient for non‑rotary special‑shaped curved surfaces. 4‑axis simultaneous machining demands higher‑level technical competence which is insufficient in many small‑and‑medium workshops.

Typical applications: Shaft parts, sleeves, housings with circumferential holes, hydraulic valve components, selected automotive parts, spiral cams.

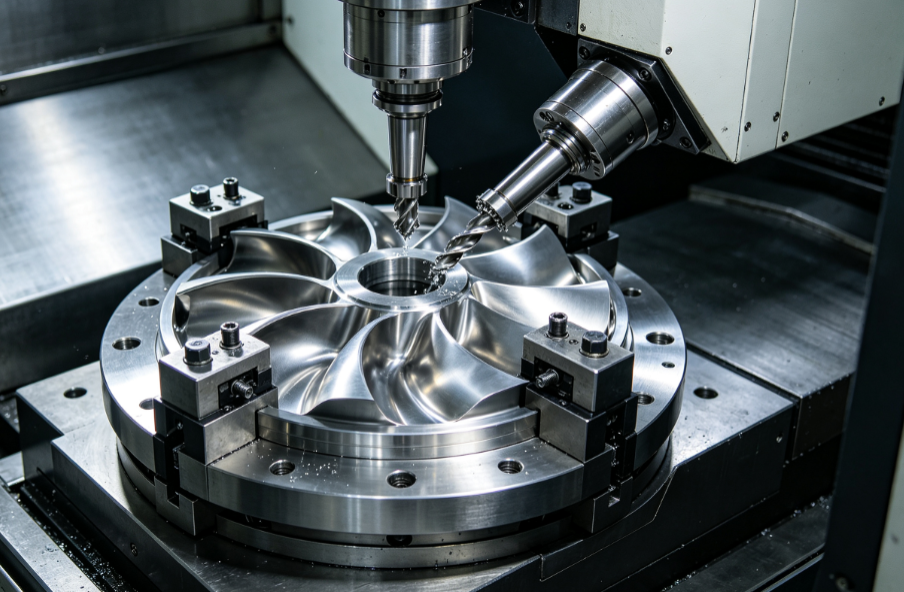

5‑Axis CNC Machining: Core Solution for Complex Precision Components

5‑axis machining integrates X/Y/Z linear axes plus two rotary axes, including table‑table, head‑head and head‑table configurations. It supports 5‑axis simultaneous machining or 3+2 positional machining with RTCP function. In 3+2 positional machining, rotary axes lock at fixed angles while three linear axes perform cutting, with lower technical difficulty. 5‑axis simultaneous machining requires synchronous motion of all axes for continuous free‑form surfaces.

Advantages: Most features can be completed within single clamping, minimizing accumulated clamping error. Adjustable tool orientation allows short rigid tools for deep‑cavity machining to suppress vibration and improve surface quality. It manufactures free‑form structures such as impellers, blades and titanium‑alloy special‑shaped parts which cannot be realized by other equipment. It guarantees positional tolerance for multi‑angle holes and inclined planes. Widely used in high‑value parts for aerospace and implantable medical devices. It reduces fixture quantity and working hours for repeated re‑clamping.

Disadvantages: High cost on machine depreciation, programming and operator resources. Complex CAM programming requires collision simulation and verification, extending process preparation cycle. It sets higher requirements for fixtures, daily machine maintenance and workshop environment. Using 5‑axis equipment for simple planar parts wastes resources and increases unit cost. 5‑axis simultaneous machining heavily relies on experienced process engineers, and talent shortage is common in industry.

Typical applications: Aero‑engine components, titanium‑alloy medical implants, precision molds, gas‑turbine assemblies, high‑end automation special‑shaped structural parts, complex impellers and blades.

Comprehensive Principles for Process Selection

Process selection shall not only focus on drawing tolerance. Engineers should evaluate geometric complexity, multi‑side features, existence of free‑form surfaces, material property, batch size, project budget and in‑house technical capacity.

For simple 2.5D components without multi‑angle inclined planes, 3‑axis is preferred to minimize production cost.
For parts dominated by rotary structures, circumferential holes and spiral grooves without complex continuous curved surfaces, 4‑axis is recommended to balance efficiency and cost.
For multi‑angle inclined planes, free‑form surfaces, thin‑wall deep‑cavity parts and components with strict multi‑face positional requirements, evaluate 5‑axis solutions and choose between 3+2 positional machining and 5‑axis simultaneous machining.
It should be noted that more axes do not guarantee higher accuracy. Final component quality depends on machine grade, cutting strategy, fixture, inspection conditions and operator experience. Hybrid‑process solution is feasible for certain parts: 3‑axis completes main material removal while 4‑axis or 5‑axis handles partial complex features to cut total cost.

Conclusion

3‑axis, 4‑axis and 5‑axis CNC machining are complementary rather than mutually‑replaced technologies. 3‑axis machining delivers outstanding cost‑performance for mass‑produced standard parts. 4‑axis solves bottlenecks of rotary and multi‑face machining, striking a balance between cost and efficiency, and plays vital roles in hydraulic and automotive component manufacturing. 5‑axis breaks manufacturing limits of complex curved surfaces at higher equipment, talent and process cost.
Precision‑manufacturing enterprises should make decisions according to component characteristics instead of judging capability merely by the number of machine axes. Optimized process selection based on drawing requirements, part structure, batch volume and budget is essential. Hybrid processes can be adopted under certain circumstances. Proper solution helps control overall manufacturing cost, lower reject rate and improve overall delivery performance while guaranteeing product quality.
